Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLS810A1LDV33BOARDTOBO1EVAL BOARD FOR TLS810A1LDV33 |
3 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 3.3V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810A1LDV33 |
|
|
TLS810B1LDV50BOARDTOBO1EVAL BOARD FOR TLS810B1LDV50 |
2 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810B1LDV50 |
|
|
TLS810A1LDV50BOARDTOBO1EVAL BOARD FOR TLS810A1LDV50 |
2 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810A1LDV50 |
|
|
TLS810D1LDV50BOARDTOBO1EVAL BOARD FOR TLS810D1LDV50 |
2 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810D1LDV50 |
|
|
TLS810B1LDV33BOARDTOBO1EVAL BOARD FOR TLS810B1LDV33 |
2 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 3.3V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810B1LDV33 |
|
|
TLS805B1SJVBOARDTOBO1EVAL BOARD FOR TLS805B1SJV |
2 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | - | 50mA | 3V ~ 42V | Positive Adjustable | Board(s) | TLS805B1SJV |
|
|
EVAL-ADPL44002CP-AZEVALUATION BOARD FOR ADPL44002 I |
8 |
|
- |
- | Box | Active | 1 - Single | 1.8V, 2.5V, 3.3V, 5V | 200mA | 2.7V ~ 40V | Positive Fixed | - | ADPL44002 |
|
|
EVAL-ADPL44002UJ-AZEVALUATION BOARD FOR ADPL44002 I |
8 |
|
- |
- | Box | Active | 1 - Single | 1.8V, 2.5V, 3.3V, 5V | 200mA | 2.7V ~ 40V | Positive Fixed | - | ADPL44002 |
|

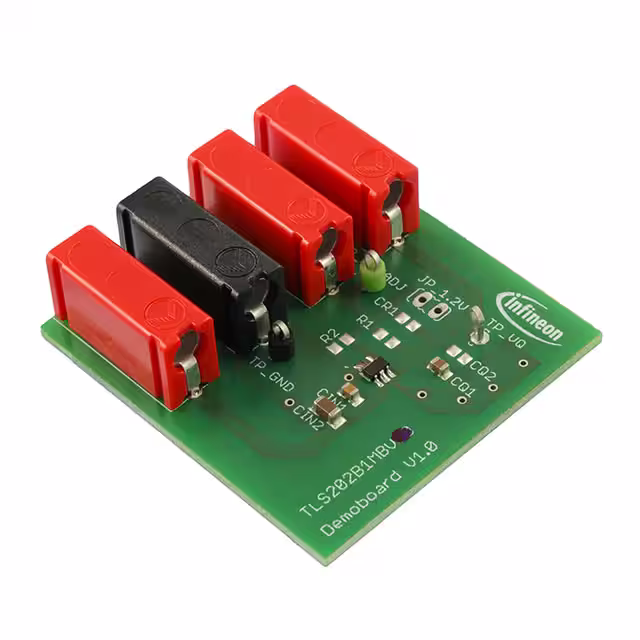

DEMOBOARDTLS202B1TOBO1EVAL BOARD FOR TLS202B1 |
5 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.7V ~ 18V | Positive Adjustable | Board(s) | TLS202B1 |
|
TLS850C2TEV50BOARDTOBO1EVAL BOARD FOR TLS850C2TEV50 |
3 |
|
Datasheet |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 500mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS850C2TEV50 |
|
NCP785AH120GEVBEVAL BOARD FOR NCP785A |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 12V | 10mA | 85 ~ 235 VAC | Positive Fixed | Board(s) | NCP785A |
|
ADP125CP-EVALZEVAL BOARD FOR ADP125 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V ~ 5V | 500mA | 2.3V ~ 5.5V | Positive Adjustable | Board(s) | ADP125 |
|

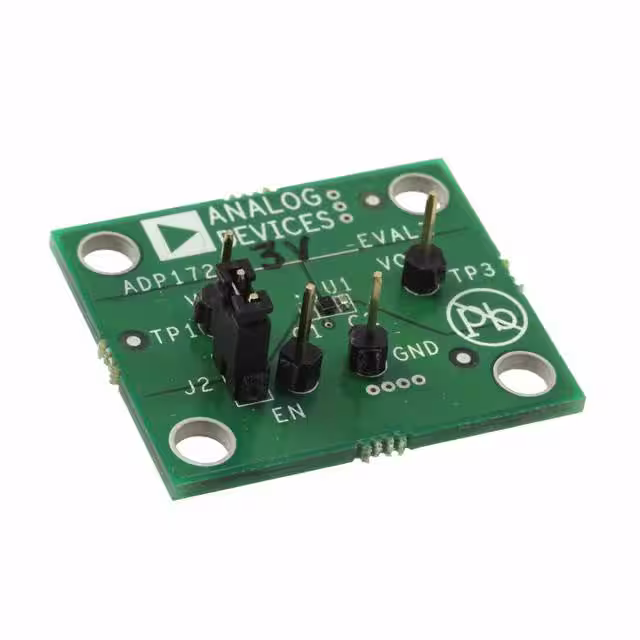

ADP172CB-3.0-EVALZEVAL BOARD FOR ADP172 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 3V | 300mA | 1.6V ~ 3.6V | Positive Fixed | Board(s) | ADP172 |
|
|
TRKRLDOEVM-119EVAL BOARD FOR TPS7B84Q1 |
9 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V, 5V or 8V | 150mA | 3V ~ 42V | Positive Fixed and Adjustable | Board(s) | TPS7B84-Q1 |
|
|
TPS7A53EVM-080EVAL BOARD FOR TPS7A53AQ1 |
10 |
|
Datasheet |
- | Box | Active | 1 - Single | 1V | 3A | 1.13V ~ 6V | Positive Fixed | Board(s) | TPS7A53A-Q1 |
|
|
TPS7A13EVM-057EVAL BOARD FOR TPS7A13 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.9V | 300mA | 0.7V ~ 2.2V | Positive Fixed | Board(s) | TPS7A13 |
|
|
TPS7A57EVM-056EVAL BOARD FOR TPS7A57 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.5V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 5A | 0.7V ~ 6V | Positive Adjustable | Board(s) | TPS7A57 |
|
ADP121CB-1.8-EVALZEVAL BOARD FOR ADP121 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 150mA | 2.3V ~ 5.5V | Positive Fixed | Board(s) | ADP121 |
|
ADP150CB-3.3-EVALZEVAL BOARD FOR ADP150 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.2V ~ 5.5V | Positive Fixed | Board(s) | ADP150 |
|
ADP1755-EVALZEVAL BOARD FOR ADP1755 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.75V ~ 3V | 1.2A | 1.6V ~ 3.6V | Positive Adjustable | Board(s) | ADP1755 |
