Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5910YKA18EVMEVAL BOARD FOR LP5910 |
4 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.8V | 300mA | 2.3V ~ 3.3V | Positive Fixed | Board(s) | LP5910 |
|
TPS7B6850EVMEVAL BOARD FOR TPS7B6850Q1 |
3 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 500mA | 4V ~ 40V | Positive Fixed | Board(s) | TPS7B6850-Q1 |
|

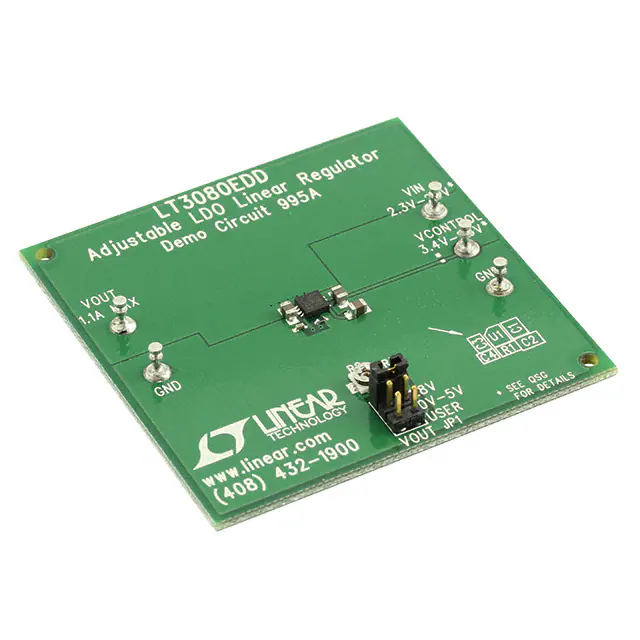

DC995AEVAL BOARD FOR LT3080 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 1.1A | 2.3V ~ 25V | Positive Adjustable | Board(s) | LT3080 |
|
DC834AEVAL BOARD FOR LT3014 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 20mA | 3V ~ 80V | Positive Adjustable | Board(s) | LT3014 |
|

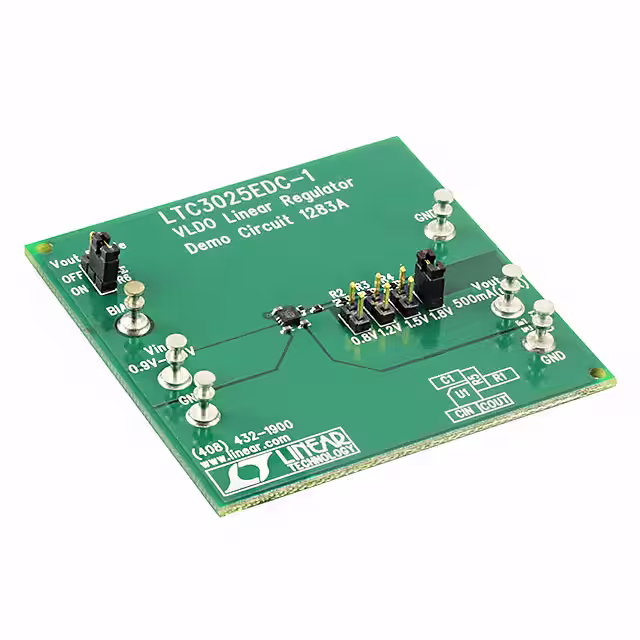

DC1283AEVAL BOARD FOR LTC30251 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V, 1.2V, 1.5V or 1.8V | 500mA | 0.9V ~ 5.5V | Positive Adjustable | Board(s) | LTC3025-1 |
|
DC1156AEVAL BOARD FOR LT3009 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 20mA | 1.6V ~ 20V | Positive Adjustable | Board(s) | LT3009 |
|
DC1585AEVAL BOARD FOR LT3083 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 3A | 1.7V ~ 23V | Positive Adjustable | Board(s) | LT3083 |
|
DC2437AEVAL BOARD FOR LT3066 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V or 5V | 500mA | 3.9V ~ 45V | Positive Adjustable | Board(s) | LT3066 |
|

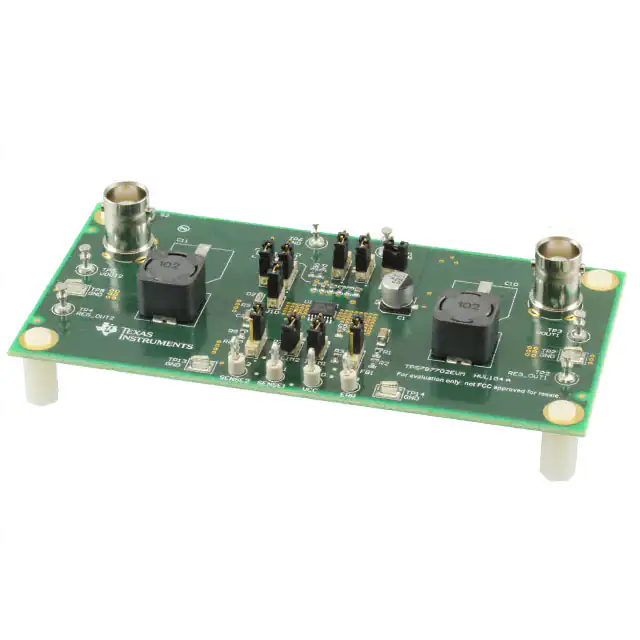

TPS7B7702EVMEVAL BOARD FOR TPS7B7702Q1 |
4 |
|
Datasheet |
- | Box | Active | 2 - Dual | 5V, 8V | 300mA, 300mA | - | Positive Adjustable | Board(s) | TPS7B7702-Q1 |
|
LP5912DRV33EVMEVAL BOARD FOR LP5912 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V | 500mA | 1.6V ~ 6.5V | Positive Fixed | Board(s) | LP5912 |
|
DC1728AEVAL BOARD FOR LT3015 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | -1.22V, -2.5V, -5V, -12V or -15V | 1.5A | -1.8V ~ -30V | Negative Adjustable | Board(s) | LT3015 |
|
DC1948AEVAL BOARD FOR LT3090 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | -1.25V, -2.5V, -5V, -12V or -15V | 600mA | -1.5V ~ -36V | Negative Adjustable | Board(s) | LT3090 |
|
DC2318AEVAL BOARD FOR LT3089 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 800mA | 1.7V ~ 36V | Positive Adjustable | Board(s) | LT3089 |
|
DC2279AEVAL BOARD FOR LT3088 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 800mA | 1.6V ~ 36V | Positive Adjustable | Board(s) | LT3088 |
|
DC741AEVAL BOARD FOR LTC3025 |
2 |
|
Datasheet |
- | Box | Active | 2 - Dual | 1.8V | 300mA | 0.9V ~ 5.5V | Positive Adjustable | Board(s) | LTC3025 |
|

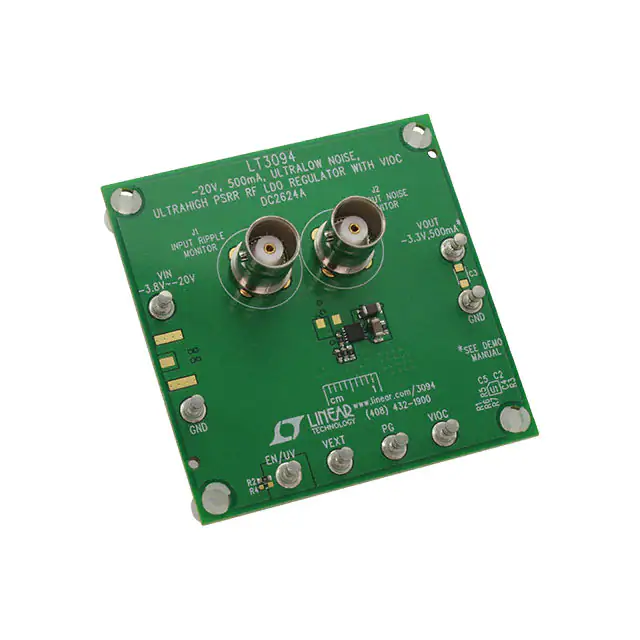

DC2624AEVAL BOARD FOR LT3094 |
12 |
|
Datasheet |
- | Box | Active | 1 - Single | -3.3V | 500mA | -3.8V ~ -20V | Negative Adjustable | Board(s) | LT3094 |
|

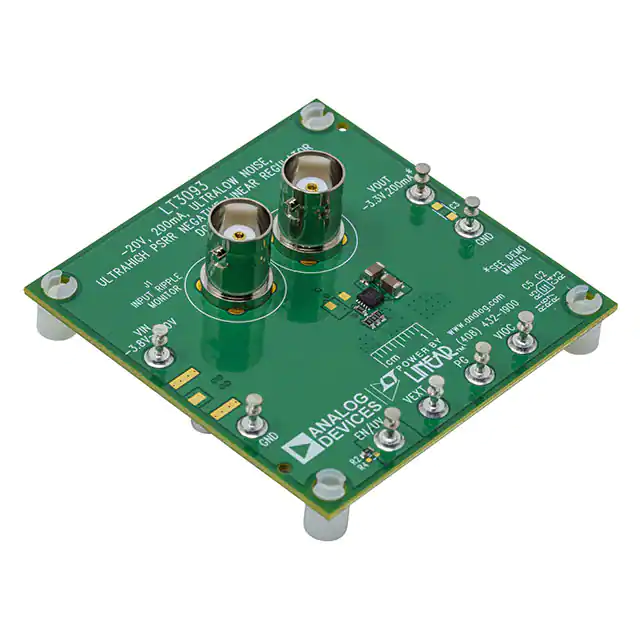

DC2952AEVAL BOARD FOR LT3093 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | -3.3V | 200mA | -3.8V ~ -20V | Negative Adjustable | Board(s) | LT3093 |
|
DC2593AEVAL BOARD FOR LT30451 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V | 500mA | 3.8V ~ 20V | Positive Adjustable | Board(s) | LT3045-1 |
|

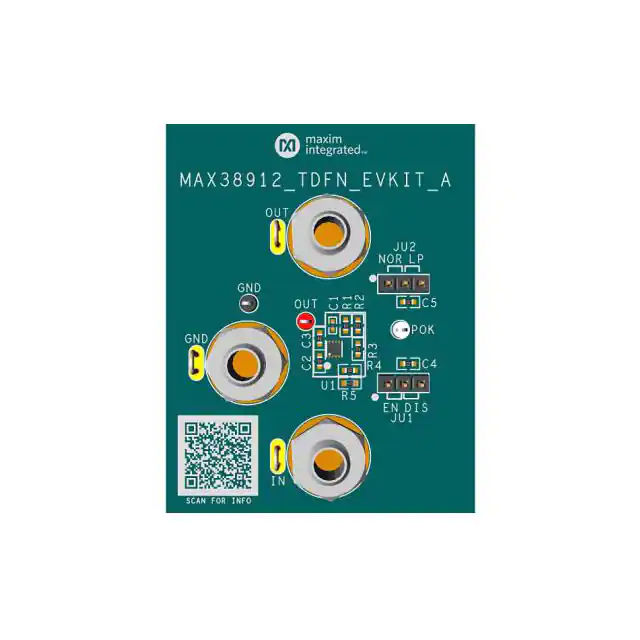

MAX38912EVK#TDFNEVAL BOARD FOR MAX38912 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1V | 500mA | 1.7V ~ 5.5V | Positive Adjustable | Board(s) | MAX38912 |
|

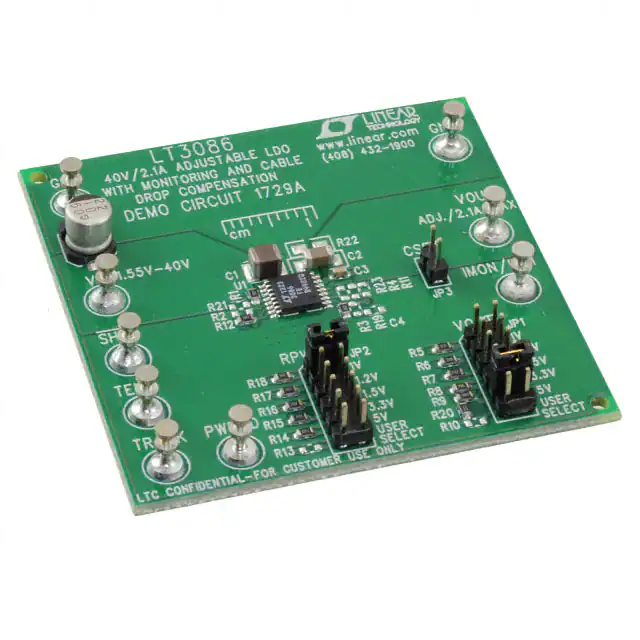

DC1729AEVAL BOARD FOR LT3086 |
6 |
|
Datasheet |
- | Box | Active | 1 - Single | 1V, 1.2V, 1.5V, 3.3V or 5V | 2.1A | 1.4V ~ 40V | Positive Adjustable | Board(s) | LT3086 |
