Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1407AEVAL BOARD FOR LT3011 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V or 5V | 50mA | 3V ~ 80V | Positive Adjustable | Board(s) | LT3011 |
|

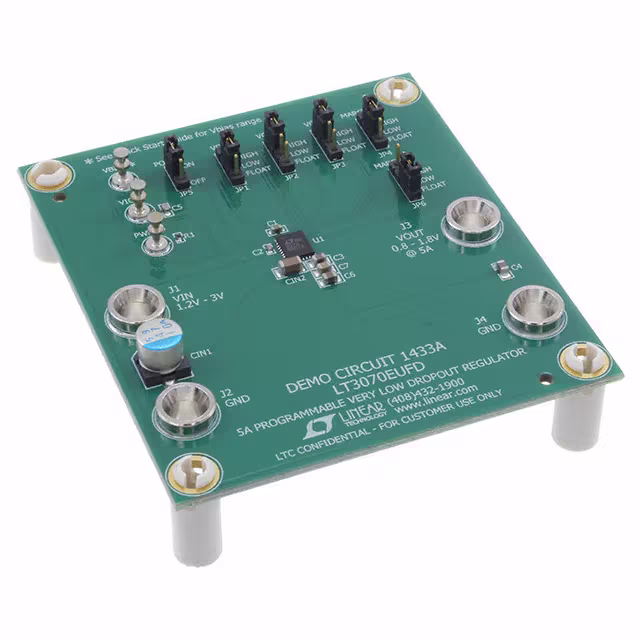

DC1433AEVAL BOARD FOR LT3070 |
0 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 5A | 1.32V ~ 3V | Positive Adjustable | Board(s) | LT3070 |
|
DC660AEVAL BOARD FOR LTC1844 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.5V, 1.8V, 2.5V, 2.8V or 3.3V | 150mA | 1.8V ~ 6.5V | Positive Adjustable | Board(s) | LTC1844 |
|
LV5680PGEVBEVAL BOARD FOR LV5680P |
2 |
|
Datasheet |
- | Bulk | Active | 4 - Quad | - | 1.3A, 300mA, 300mA, 200mA | 7.5V ~ 16V | Positive Fixed and Adjustable | Board(s) | LV5680P |
|
DC1865AEVAL BOARD FOR LT3055 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 500mA | 5.6V ~ 45V | Positive Adjustable | Board(s) | LT3055 |
|
DC1368AEVAL BOARD FOR LT30801 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 4.4A | 1.7V ~ 25V | Positive Adjustable | Board(s) | LT3080-1 |
|
DC2177A-AEVAL BOARD FOR LT3061 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V or 5V | 100mA | 2.1V ~ 45V | Positive Adjustable | Board(s) | LT3061 |
|
MAX25308EVKIT#EVAL BOARD FOR MAX25308 |
3 |
|
Datasheet |
- | Box | Active | 3 - Triple | 0.6V ~ 3.8V | 600mA, 300mA, 300mA | 1.7V ~ 5.5V | Positive Adjustable | Board(s) | MAX25308 |
|
MAX25210EVKIT#EVAL BOARD FOR MAX25210 |
0 |
|
Datasheet |
- | Box | Active | 2 - Dual | 3.3V, 5V | 300mA | 42V | Positive Fixed | Board(s) | MAX25210 |
|
ADP151UJZ-REDYKITEVAL BOARD FOR ADP151 |
1 |
|
Datasheet |
RedyKit™ | Bulk | Active | 1 - Single | 2.8V, 3.3V | 200mA | - | Positive Fixed | Board(s) | ADP151 |
|
TPS715EVM-074EVAL BOARD FOR TPS71501 |
7 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V, 3.3V, 5V or 10V | 50mA | 2.5V ~ 24V | Positive Fixed and Adjustable | Partially Populated Board(s) | TPS71501 |
|
|
EVB_RTQ2533WGQV(2)EVAL BOARD FOR RTQ2533W |
18 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V ~ 5.5V | 3A | 1.1V ~ 6.5V | Positive Adjustable | Board(s) | RTQ2533W |
|
|
UA78LEVM-075EVAL BOARD FOR UA78L05C |
8 |
|
Datasheet |
- | Box | Active | 1 - Single | 5V | 100mA | 7V ~ 20V | Positive Fixed | Board(s) | UA78L05C |
|
|
AEK-POW-LDOV02JEVAL BOARD FOR L99VR02J |
43 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V or 5V | 500mA | 2.15V ~ 28V | Positive Adjustable | Board(s) | L99VR02J |
|
|
ADPL44001EVKIT#EVKIT - 40V, 100MA, ULTRA-LOW QU |
8 |
|
- |
- | Box | Active | 1 - Single | 3.3V, 5V, 12V | 100mA | 4V ~ 40V | Positive Fixed | - | ADPL44001 |
|
|
ADPL42001EVKIT#EVKIT - 20V, 100MA, ULTRA-LOW QU |
8 |
|
- |
- | Box | Active | 1 - Single | 3.3V, 5V, 12V | 100mA | 4V ~ 20V | Positive Fixed | - | ADPL42001 |
|
|
MAX17651EVKITA#EVAL BOARD FOR MAX17651 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 5V | 100mA | 4V ~ 60V | Positive Adjustable | Board(s) | MAX17651 |
|
NCV47551DAJGEVBEVAL BOARD FOR NCV47551 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V ~ 20V | 20mA | 4.4V ~ 40V | Positive Adjustable | Board(s) | NCV47551 |
|
|
TLS810B1EJV33BOARDTOBO1EVAL BOARD FOR TLS810B1EJV33 |
3 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 3.3V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810B1EJV33 |
|
|
TLS810B1EJV50BOARDTOBO1EVAL BOARD FOR TLS810B1EJV50 |
3 |
|
- |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 100mA | 3V ~ 42V | Positive Fixed | Board(s) | TLS810B1EJV50 |
