Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A57EVM-081EVAL BOARD FOR TPS7A57 |
6 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.75V | 13.5A | 0.7V ~ 6V | Positive Adjustable | Board(s) | TPS7A57 |
|
|
TPS7H1111EVMEVAL BOARD FOR TPS7H1111SEP |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 1.5A | 0.85V ~ 7V | Positive Adjustable | Board(s) | TPS7H1111-SEP |
|
|
TPS7H1111EVM-CVALEVAL BOARD FOR TPS7H1111SP |
4 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 1.5A | 0.85V ~ 7V | Positive Adjustable | Board(s) | TPS7H1111-SP |
|
|
TPS7H3302EVMEVAL BOARD FOR TPS7H3302SEP |
5 |
|
Datasheet |
- | Box | Active | 1 - Single | - | - | 2.375V ~ 3.5V | Positive Adjustable | Board(s) | TPS7H3302-SEP |
|
|
MAX16910C9EVKIT#EVAL BOARD FOR MAX16910C |
4 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V or 5V | 200mA | 3.5V ~ 30V | Positive Adjustable | Board(s) | MAX16910C |
|
|
TPS7H1121EVM-CVALEVAL BOARD FOR TPS7H1121SP |
5 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 2A | 2.25V ~ 14V | Positive Fixed | Board(s) | TPS7H1121-SP |
|
TPS7A4501EVM-CVALEVAL BOARD FOR TPS7A4501SP |
4 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 1.5A | 2.3V ~ 20V | Positive Adjustable | Board(s) | TPS7A4501-SP |
|
|
TLS820F3ELV33BOARDTOBO1EVAL BOARD FOR TLS820F3 |
3 |
|
Datasheet |
OPTIREG™ | Bulk | Active | 1 - Single | 3.3V | 200mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS820F3 |
|
|
TLS820F3ELV50BOARDTOBO1EVAL BOARD FOR TLS820F3 |
3 |
|
Datasheet |
OPTIREG™ | Bulk | Active | 1 - Single | 5V | 200mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS820F3 |
|
MAX25301EVKIT#EVAL BOARD FOR MAX25301 |
0 |
|
- |
- | Box | Active | 1 - Single | 0.6V ~ 5.3V | 1A | 1.7V ~ 5.5V | Positive Adjustable | Board(s) | MAX25301 |
|

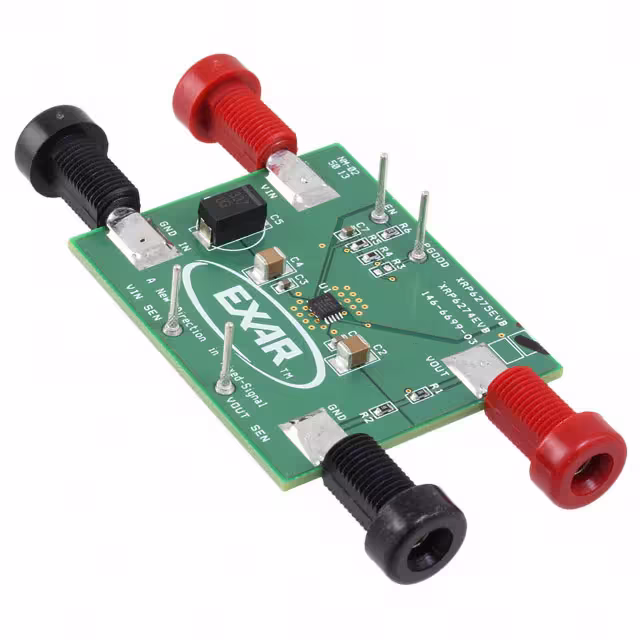

XRP6275EVBEVAL BOARD FOR XRP6275 |
6 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1V | 3A | 1.045V ~ 2.625V | Positive Adjustable | Board(s) | XRP6275 |
|
TPS7A4515EVM-385EVAL BOARD FOR TPS7A4515 |
14 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 1.5A | 2.1V ~ 20V | Positive Fixed | Board(s) | TPS7A4515 |
|

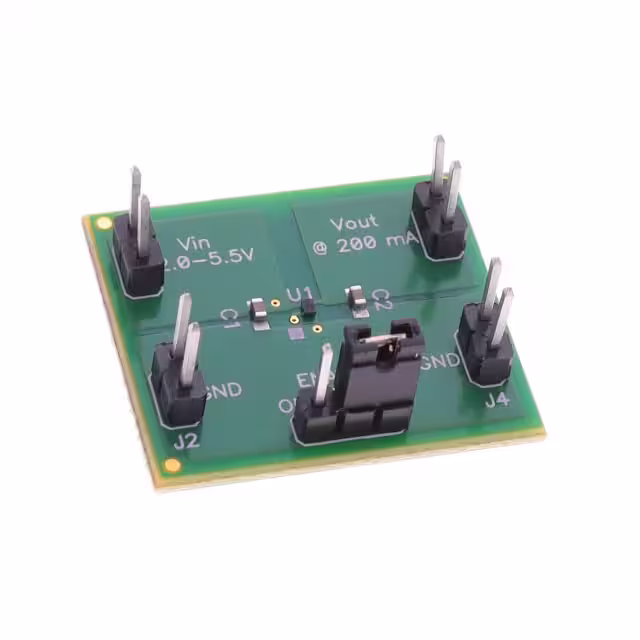

TPS72728YFFEVM-407EVAL BOARD FOR TPS72728 |
10 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.8V | 250mA | 2V ~ 5.5V | Positive Fixed | Board(s) | TPS72728 |
|
|
TLV70533EVM-596EVAL BOARD FOR TLV70533 |
9 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 3.3V | 200mA | 2V ~ 5.5V | Positive Fixed | Board(s) | TLV70533 |
|
TPS74001DGKEVM-722EVAL BOARD FOR TPS74001DGK |
12 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 1.5A | 1.2V ~ 5.5V | Positive Adjustable | Board(s) | TPS74001DGK |
|
TPS74001DPTEVM-713EVAL BOARD FOR TPS74001DPT |
12 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 1.5A | 1.2V ~ 5.5V | Positive Adjustable | Board(s) | TPS74001DPT |
|

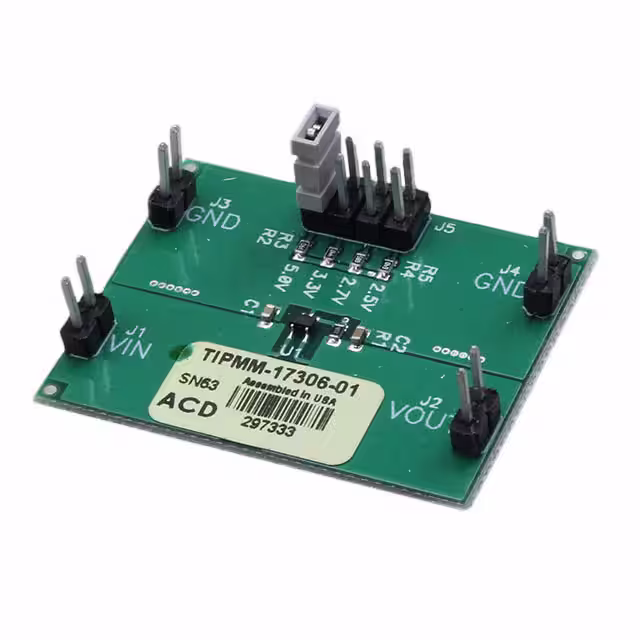

TPS71401DCKEVM-425EVAL BOARD FOR TPS71401 |
11 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.5V, 2.7V, 3.3V or 5V | 80mA | 2.5V ~ 10V | Positive Adjustable | Board(s) | TPS71401 |
|
TPS78225EVM-445EVAL BOARD FOR TPS78225 |
6 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.5V | 150mA | 2.2V ~ 5.5V | Positive Fixed | Board(s) | TPS78225 |
|
|
LP38859-1.2EVALEVAL BOARD FOR LP38859 |
11 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 3A | 3V ~ 5.5V | Positive Fixed | Board(s) | LP38859 |
|
LP3991TL-1.5EVEVAL BOARD FOR LP3991 |
11 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 300mA | 1.65V ~ 4V | Positive Fixed | Board(s) | LP3991 |
