Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

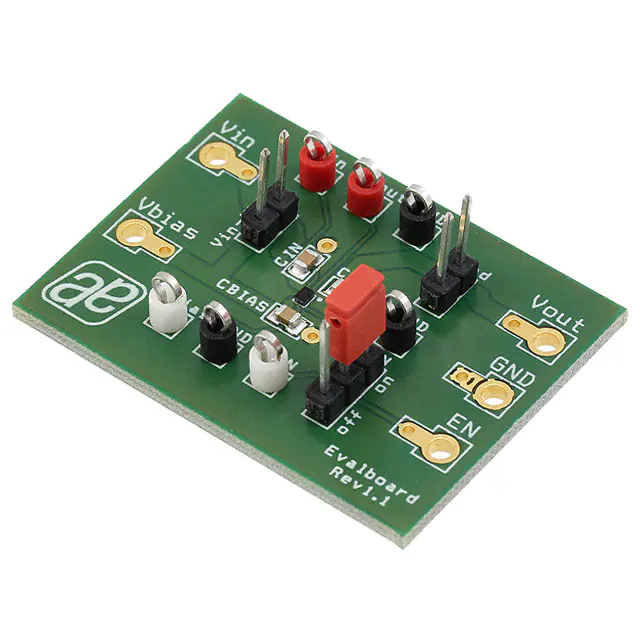

AS1372-WL-12_EK_STEVAL BOARD FOR AS1372 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 350mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | AS1372 |
|
AS1372-WL-13_EK_STEVAL BOARD FOR AS1372 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.3V | 350mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | AS1372 |
|

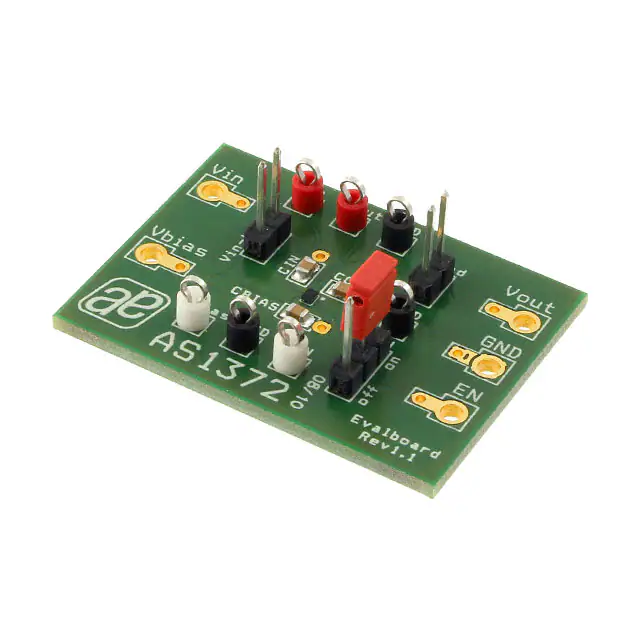

AS1372-WL-15_EK_STEVAL BOARD FOR AS1372 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 350mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | AS1372 |
|
AS1372-WL-10_EK_STEVAL BOARD FOR AS1372 |
3 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1V | 350mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | AS1372 |
|
TPS78633EVM-207EVAL BOARD FOR TPS78633 |
6 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 3.3V | 1.5A | 2.7V ~ 5.5V | Positive Fixed | Board(s) | TPS78633 |
|
LP38841EVALEVAL BOARD FOR LP38841 |
6 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 800mA | 4.5V ~ 5.5V | Positive Adjustable | Board(s) | LP38841 |
|
LP3996SD-3033EVEVAL BOARD FOR LP3996 |
2 |
|
Datasheet |
- | Box | Obsolete | 2 - Dual | 3V, 3.3V | 300mA, 150mA | 2V ~ 6V | Positive Fixed | Board(s) | LP3996 |
|

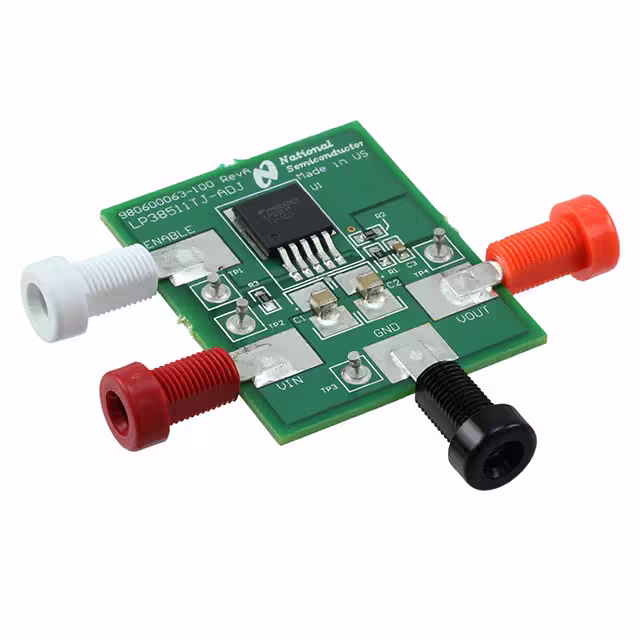

LP38511TJ-ADJEVEVAL BOARD FOR LP38511 |
2 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 800mA | 2.25V ~ 5.5V | Positive Adjustable | Board(s) | LP38511 |
|

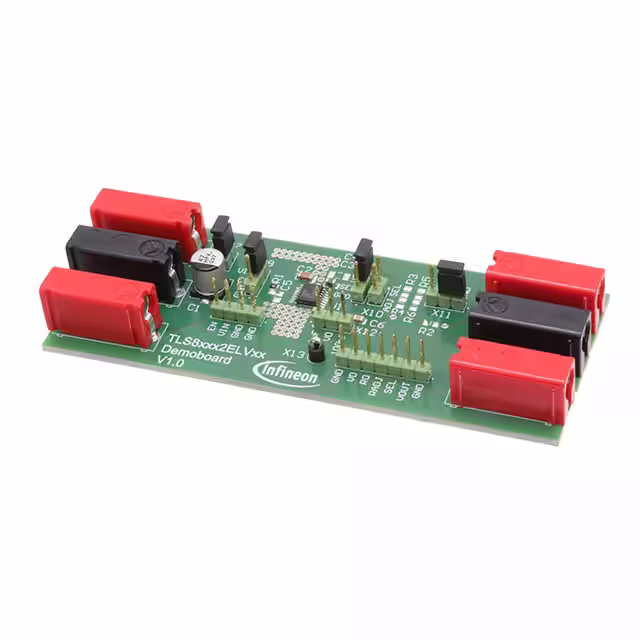

TLS820B2ELVSEBOARDTOBO1EVAL BOARD FOR TLS820B2 |
3 |
|
Datasheet |
OPTIREG™ | Box | Active | 1 - Single | 5V | 200mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS820B2 |
|

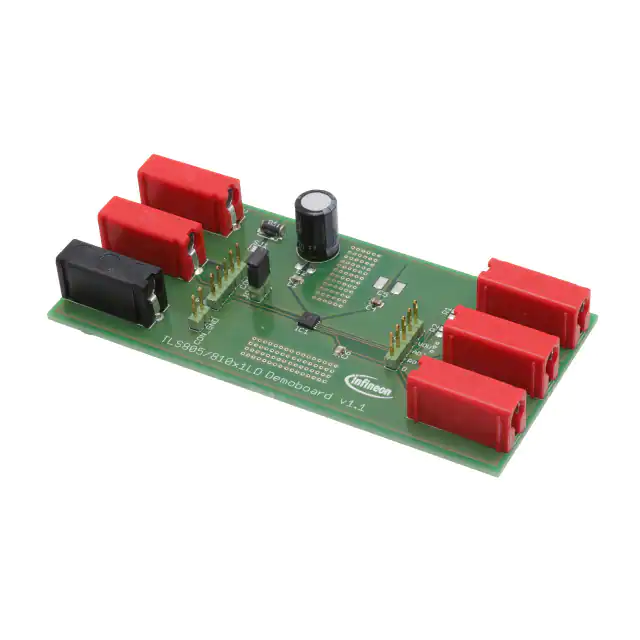

TLS805D1LDV50BOARDTOBO1EVAL BOARD FOR TLS805D1LDV50 |
2 |
|
Datasheet |
OPTIREG™ | Box | Discontinued at Digi-Key | 1 - Single | 5V | 50mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS805D1LDV50 |
|
LP5900TL-2.0EVEVAL BOARD FOR LP5900 |
6 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2V | 150mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | LP5900 |
|
LP5951MF-2.5EVEVAL BOARD FOR LP5951 |
6 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.5V | 150mA | 1.8V ~ 5.5V | Positive Fixed | Board(s) | LP5951 |
|
TPS76918EVM-127EVAL BOARD FOR TPS76918 |
5 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 1.8V | 100mA | 3V ~ 6V | Positive Fixed | Board(s) | TPS76918 |
|

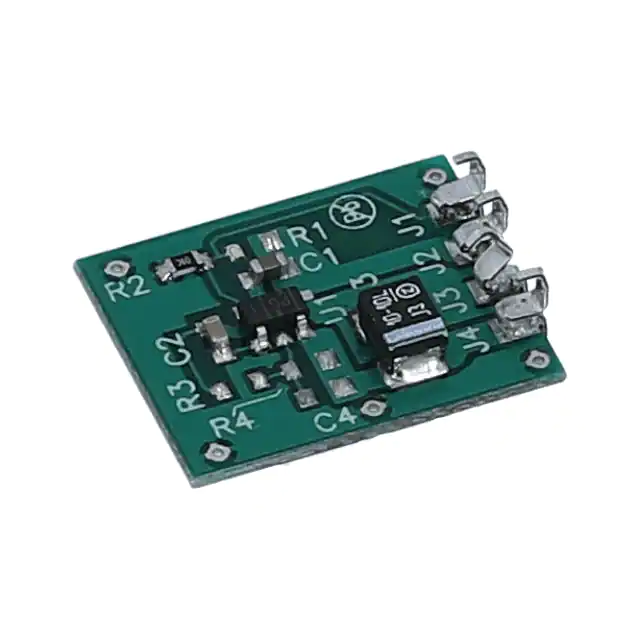

TPS78833EVMEVAL BOARD FOR TPS78833 |
5 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 3.3V | 150mA | 2.7V ~ 13.5V | Positive Fixed | Board(s) | TPS78833 |
|
TPS72518EVM-207EVAL BOARD FOR TPS72518 |
5 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 1.8V | 1A | 2.1V ~ 5.5V | Positive Fixed | Board(s) | TPS72518 |
|
LP38842EVALEVAL BOARD FOR LP38842 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 1.5A | 4.5V ~ 5.5V | Positive Adjustable | Board(s) | LP38842 |
|
TPS7A6550EVMEVAL BOARD FOR TPS7A6550 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 5V | 300mA | 4V ~ 40V | Positive Fixed | Board(s) | TPS7A6550 |
|

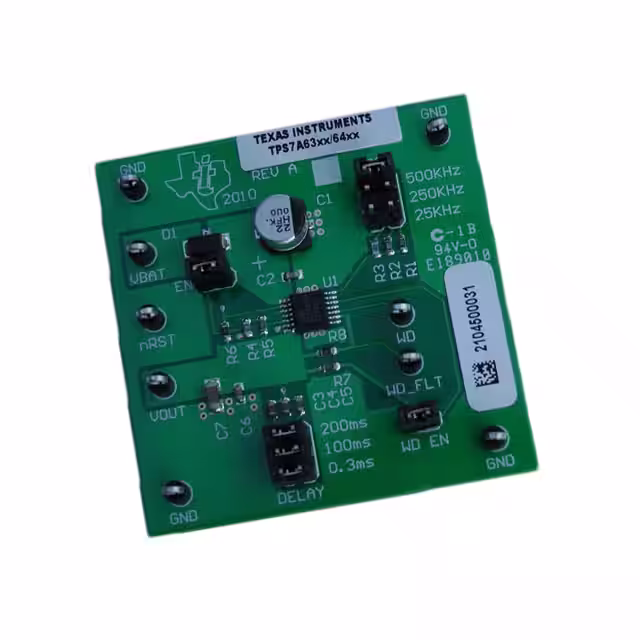

TPS7A6401EVMEVAL BOARD FOR TPS7A6401 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.5V ~ 7V | 200mA | 4V ~ 40V | Positive Adjustable | Board(s) | TPS7A6401 |
|
LP5904TM-2.85EV/NOPBEVAL BOARD FOR LP5904 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | - | 200mA | 2.2V ~ 5.5V | Positive Fixed | Board(s) | LP5904 |
|
LP592201EVMEVAL BOARD FOR LP5922 |
5 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 1.8V | 2A | 2.3V ~ 6V | Positive Adjustable | Board(s) | LP5922 |
