Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

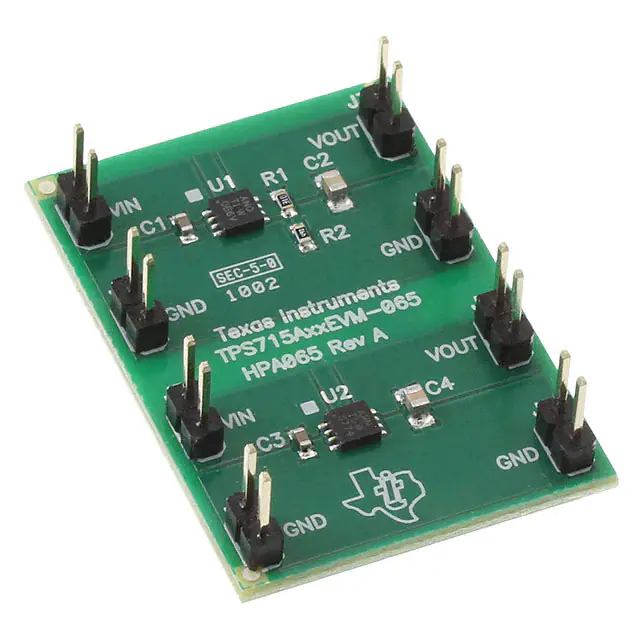

TPS715AXXEVM-065EVAL BOARD FOR TPS715A01 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V, 5V | 80mA, 80mA | 2.5V ~ 24V | Positive Fixed and Adjustable | Unpopulated (Bare) Board(s) | TPS715A01, TPS715A33 |
|
LP2998EVALEVAL BOARD FOR LP2998 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 1.5A | 2.2V ~ 5.5V | Positive Fixed | Board(s) | LP2998 |
|

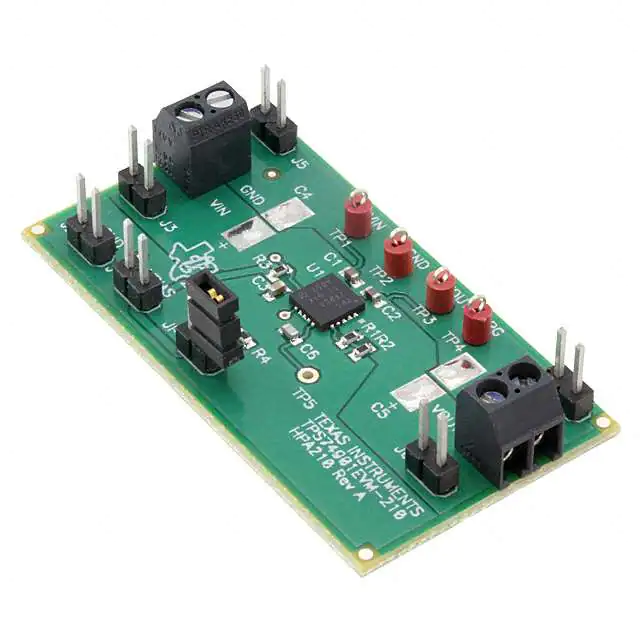

TPS74901EVM-210EVAL BOARD FOR TPS74901 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 3A | 2.99V ~ 5.5V | Positive Adjustable | Board(s) | TPS74901 |
|
TPS74701EVM-177EVAL BOARD FOR TPS74701 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 500mA | 2.7V ~ 5.5V | Positive Adjustable | Board(s) | TPS74701 |
|
TPS799XXEVM-105EVAL BOARD FOR TPS79901 TPS79928 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.6V, 2.8V, 3.3V | 200mA, 200mA, 200mA | 2.7V ~ 6.5V | Positive Fixed and Adjustable | Board(s) | TPS79901, TPS79928 |
|

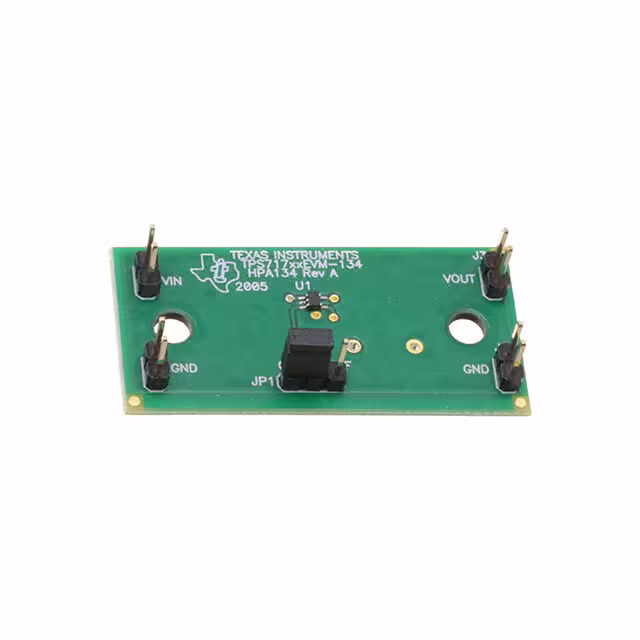

TPS717XXEVM-134EVAL BOARD FOR TPS71728 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 2.8V | 150mA | 2.5V ~ 6.5V | Positive Fixed | Board(s) | TPS71728 |
|

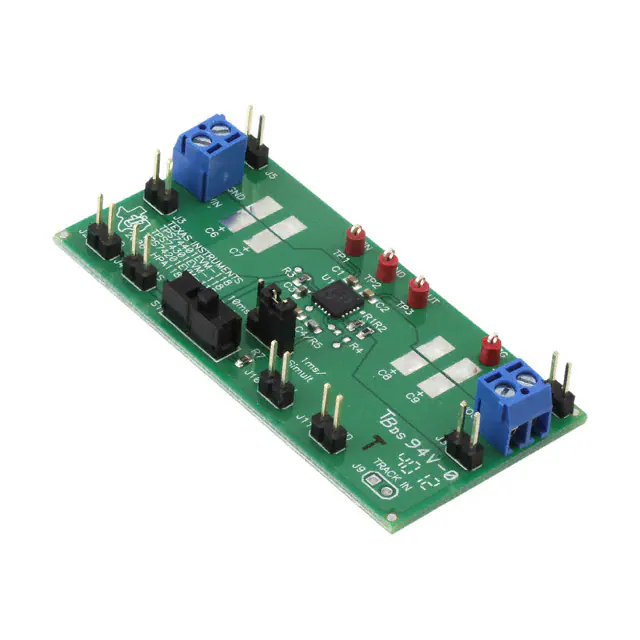

TPS74401EVM-118EVAL BOARD FOR TPS74401 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.2V | 3A | 1.3V ~ 5.25V | Positive Adjustable | Board(s) | TPS74401 |
|
LP2996LQEVALEVAL BOARD FOR LP2996 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 1.5A | 2.2V ~ 5.5V | Positive Fixed | Board(s) | LP2996 |
|

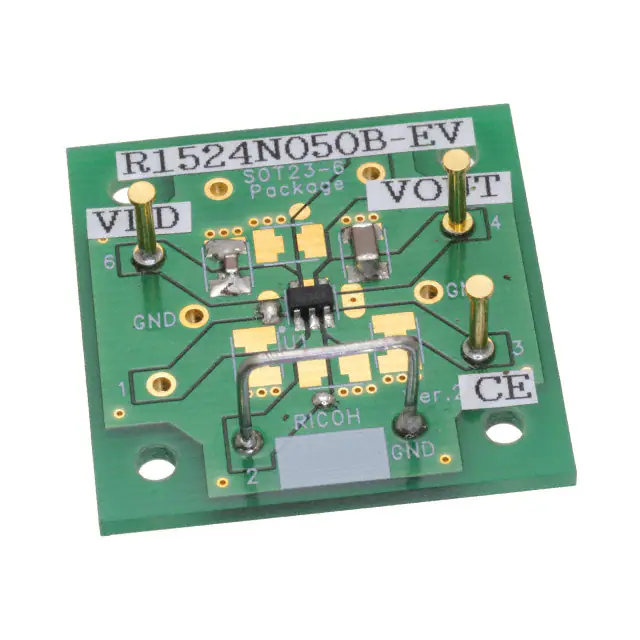

R1524N050B-EVEVAL BOARD FOR R1524N050B |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 200mA | 3.5V ~ 36V | Positive Fixed | Board(s) | R1524N050B |
|
R1540N001B-EVEVAL BOARD FOR R1540N |
5 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 2.2V ~ 14V | 70mA | 3.5V ~ 42V | Positive Adjustable | Board(s) | R1540N |
|
STEVAL-ISB037V1EVAL BOARD FOR LD39020 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.8V | 200mA | 1.5V ~ 5.5V | Positive Fixed | Board(s) | LD39020 |
|
BD733L2FP3-EVK-301EVAL BOARD FOR BD733 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V | 200mA | 4.37V ~ 45V | Positive Fixed | Board(s) | BD733 |
|

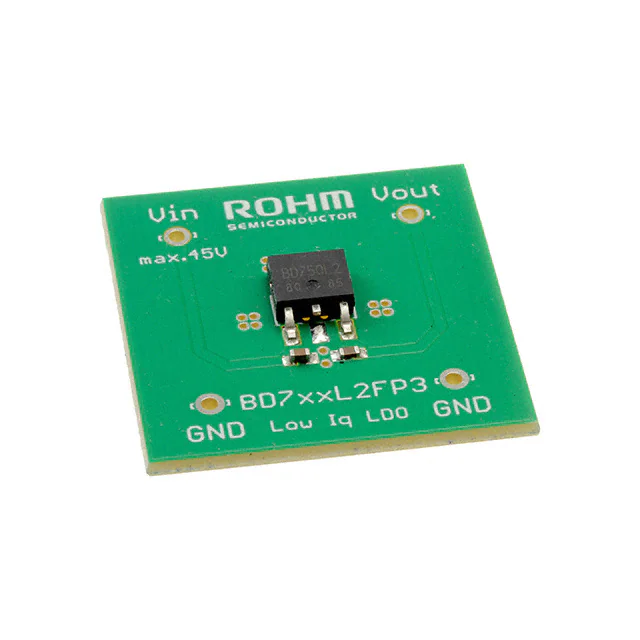

BD750L2FP-EVK-301EVAL BOARD FOR BD750 |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 200mA | 5.8V ~ 45V | Positive Fixed | Board(s) | BD750 |
|
BD750L2EFJ-EVK-301EVAL BOARD FOR BD750 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 200mA | 5.8V ~ 45V | Positive Fixed | Board(s) | BD750 |
|
BD733L2FP-EVK-301EVAL BOARD FOR BD733 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V | 200mA | 4.37V ~ 45V | Positive Fixed | Board(s) | BD733 |
|
TPS79601DRBEVMEVAL BOARD FOR TPS79601 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V, 2.5V, 2.8V, 3.3V | 1A | 2.7V ~ 5.5V | Positive Adjustable | Board(s) | TPS79601 |
|
TPS79501DRBEVMEVAL BOARD FOR TPS79501 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V, 2.5V, 2.8V, 3.3V | 500mA | 2.7V ~ 5.5V | Positive Adjustable | Board(s) | TPS79501 |
|
TPS7A7001EVM-065EVAL BOARD FOR TPS7A7001 |
5 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.9V ~ 5V | 2A | 1.425V ~ 6.5V | Positive Adjustable | Board(s) | TPS7A7001 |
|

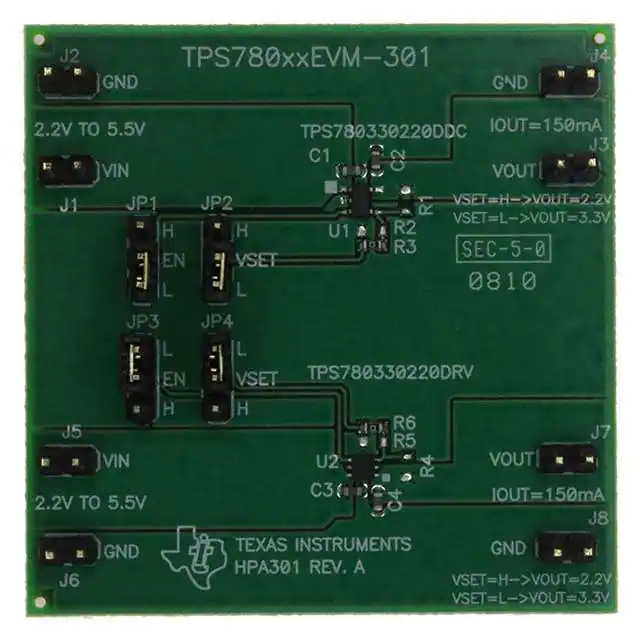

TPS780XXEVM-301EVAL BOARD FOR TPS780330220 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.2V or 3.3V | 150mA | 2.2V ~ 5.5V | Positive Fixed | Board(s) | TPS780330220 |
|
TLV1117LV33EVM-714EVAL BOARD FOR TLV1117LV33 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 1A | 1.8V ~ 5.5V | Positive Fixed | Board(s) | TLV1117LV33 |
