Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP170AMX180GEVBEVAL BOARD FOR NCP170 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 150mA | 2.8V ~ 5.5V | Positive Fixed | Board(s) | NCP170 |
|
|
NCP170AMX280GEVBEVAL BOARD FOR NCP170 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.8V | 150mA | 3.8V ~ 5.5V | Positive Fixed | Board(s) | NCP170 |
|

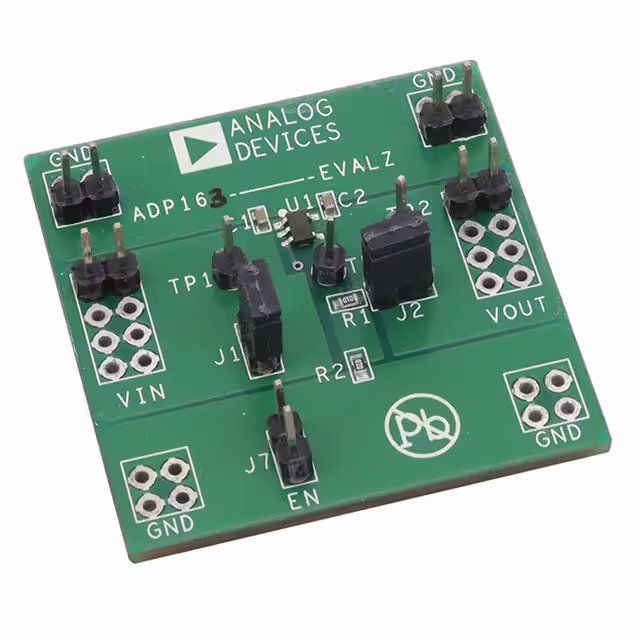

ADP163UJ-EVALZEVAL BOARD FOR ADP163 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1V ~ 4.2V | 150mA | 2.2V ~ 5.5V | Positive Adjustable | Board(s) | ADP163 |
|
ADP170-1.8-EVALZEVAL BOARD FOR ADP170 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 300mA | 1.6V ~ 3.6V | Positive Fixed | Board(s) | ADP170 |
|
EV25U57AEVAL BOARD FOR MIC69303RT |
3 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.5V ~ 4.5V | 3A | 1.65V ~ 5.5V | Positive Adjustable | Partially Populated Board(s) | MIC69303RT |
|
|
NCV47821PAAJGEVBEVAL BOARD FOR NCV47821 |
3 |
|
Datasheet |
- | Box | Active | 2 - Dual | 3.3V ~ 20V | 200mA, 200mA | 4.4V ~ 40V | Positive Adjustable | Board(s) | NCV47821 |
|
|
DC1855AEVAL BOARD FOR LT3030 |
0 |
|
Datasheet |
- | Box | Active | 2 - Dual | 1.5V, 1.8V | 750mA, 250mA | 2.2V ~ 20V | Positive Adjustable | Board(s) | LT3030 |
|
|
TPS7A78EVM-041EVAL BOARD FOR TPS7A78 |
5 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.6V | 120mA | 90 ~ 264 VAC | Positive Fixed | Board(s) | TPS7A78 |
|
NCP114MXTCGEVBEVAL BOARD FOR NCP114 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 300mA | 1.7V ~ 5.5V | Positive Fixed | Board(s) | NCP114 |
|
NCP152MXTCGEVBEVAL BOARD FOR NCP152 |
2 |
|
Datasheet |
- | Box | Active | 2 - Dual | - | 150mA, 150mA | 1.9V ~ 5.25V | Positive Fixed | Board(s) | NCP152 |
|
NCP716MTTBGEVBEVAL BOARD FOR NCP716 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 80mA | 6V ~ 24V | Positive Fixed | Board(s) | NCP716 |
|
NCP715MXTBGEVBEVAL BOARD FOR NCP715 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 50mA | 6V ~ 24V | Positive Fixed | Board(s) | NCP715 |
|
NCP715SQT2GEVBEVAL BOARD FOR NCP715 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 50mA | 6V ~ 24V | Positive Fixed | Board(s) | NCP715 |
|
|
EVAL-LT3077-AZEVAL BOARD FOR LT3077 |
7 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.5V ~ 4.2V | 3A | 0.6V ~ 5.5V | Positive Adjustable | Board(s) | LT3077 |
|
|
TPS7A15EVM-096EVAL BOARD FOR TPS7A15 |
4 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.8V | 400mA | 0.6V ~ 2.2V | Positive Fixed | Board(s) | TPS7A15 |
|
|
TPS7A14EVM-095EVAL BOARD FOR TPS7A14 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.8V | 1A | 0.7V ~ 2.2V | Positive Fixed | Board(s) | TPS7A14 |
|
MAX38911EVK#WLPEVAL BOARD FOR MAX38911 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 500mA | 1.7V ~ 5.5V | Positive Fixed | Board(s) | MAX38911 |
|
|
DC717AEVAL BOARD FOR LT3024 |
10 |
|
Datasheet |
- | Box | Active | 2 - Dual | 2.5V, 3.3V or 5V | 500mA, 100mA | 2.3V ~ 20V | Positive Adjustable | Board(s) | LT3024 |
|
|
SLG51003V-EVBEVAL BOARD FOR SLG51003V |
15 |
|
- |
GreenPAK™ | Box | Active | 1 - Single | - | - | - | - | Board(s) | SLG51003V |
|
|
TPS7A96EVM-106EVAL BOARD FOR TPS7A96 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.4V ~ 5.5V | 2A | 1.9V ~ 5.7V | Positive Adjustable | Board(s) | TPS7A96 |
