Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1622AEVAL BOARD FOR LT3032 |
1 |
|
Datasheet |
- | Box | Active | 2 - Dual | ±5V | 150mA, 150mA | ±2.3V ~ ±20V | Positive and Negative Adjustable | Board(s) | LT3032 |
|
TPS7A94EVM-046EVAL BOARD FOR TPS7A94 |
7 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.4V ~ 5.5V | 1A | 1.7V ~ 5.7V | Positive Adjustable | Board(s) | TPS7A94 |
|
EVAL-LT3097-AZEVAL BOARD FOR LT3097 |
6 |
|
Datasheet |
- | Box | Active | 2 - Dual | ±3.32V | 500mA | ±1.8V ~ ±20V | Positive and Negative Adjustable | Board(s) | LT3097 |
|
710-0003-06EVAL BOARD FOR KA78R09C |
7 |
|
Datasheet |
- | Bag | Active | 1 - Single | 9V | - | 12V | Positive Fixed | Board(s) | KA78R09C |
|
LP38692EVALEVAL BOARD FOR LP38692 |
8 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 1A | 2.7V ~ 10V | Positive Adjustable | Board(s) | LP38692 |
|
TPS71401DRVEVM-426EVAL BOARD FOR TPS71401 |
10 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.5V, 2.7V, 3.3V or 5V | 80mA | 2.5V ~ 10V | Positive Adjustable | Board(s) | TPS71401 |
|
TPS73525EVM-276EVAL BOARD FOR TPS73525 |
7 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.5V | 500mA | 2.7V ~ 6.5V | Positive Fixed | Board(s) | TPS73525 |
|
TPS72715YFFEVM-407EVAL BOARD FOR TPS72715 |
9 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.5V | 300mA | 2V ~ 5.5V | Positive Fixed | Board(s) | TPS72715 |
|
TPS73501EVM-276EVAL BOARD FOR TPS73501 |
10 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 500mA | 2.7V ~ 6.5V | Positive Adjustable | Board(s) | TPS73501 |
|
TL1963A-18EVMEVAL BOARD FOR TL1963A |
6 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 1.5A | 2.5V ~ 20V | Positive Fixed | Board(s) | TL1963A |
|
TPS70933EVM-110EVAL BOARD FOR TPS70933 |
6 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.7V ~ 28V | Positive Fixed | Board(s) | TPS70933 |
|
EV2018-ZD-33-00AEVAL BOARD FOR MP2018GZD33 |
7 |
|
- |
- | Box | Active | 1 - Single | 3.3V | 500mA | 4.3V ~ 16V | Positive Fixed | Board(s) | MP2018GZD-33 |
|
TPS7B82EVM-024EVAL BOARD FOR TPS7B82Q1 |
10 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 300mA | 3V ~ 40V | Positive Fixed | Board(s) | TPS7B82-Q1 |
|

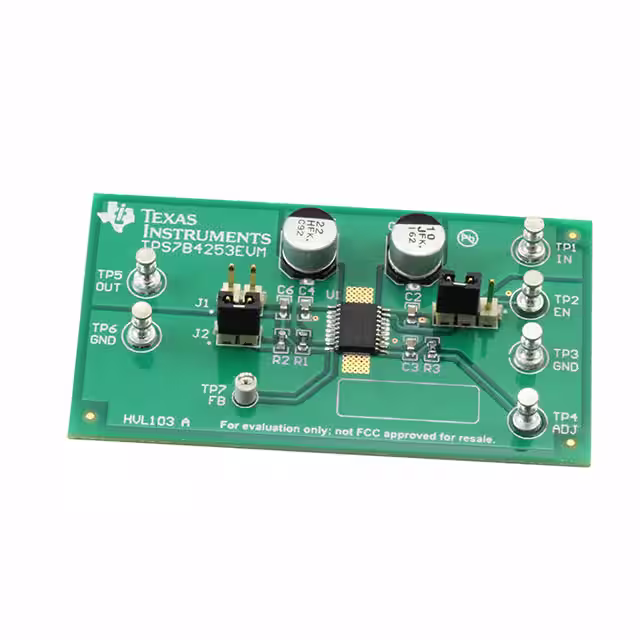

TPS7B4253EVMEVAL BOARD FOR TPS7B4253Q1 |
8 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 300mA | 4V ~ 40V | Positive Adjustable | Board(s) | TPS7B4253-Q1 |
|
|
AEK-POW-LDOV01SEVAL BOARD FOR L99VR01 |
24 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V or 5V | 200mA | - | Positive Adjustable | Board(s) | L99VR01 |
|

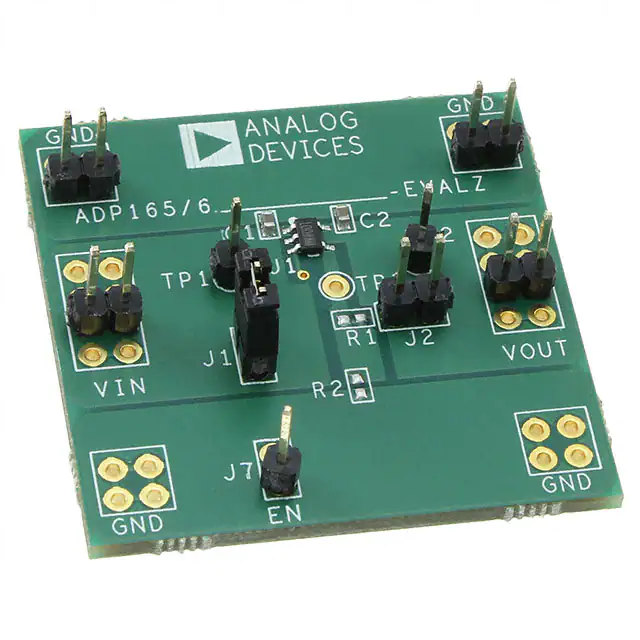

ADP165UJ-EVALZEVAL BOARD FOR ADP165 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.2V ~ 5.5V | Positive Adjustable | Board(s) | ADP165 |
|
ADP7142RD-EVALZEVAL BOARD FOR ADP7142 |
3 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 200mA | 2.7V ~ 40V | Positive Adjustable | Board(s) | ADP7142 |
|
ADP160UJZ-REDYKITEVAL BOARD FOR ADP160 |
1 |
|
Datasheet |
RedyKit™ | Bulk | Active | 1 - Single | 1.8V, 3.3V | 150mA | - | Positive Fixed | Board(s) | ADP160 |
|
ADP162UJZ-REDYKITEVAL BOARD FOR ADP162 |
0 |
|
Datasheet |
RedyKit™ | Bulk | Active | 1 - Single | 3.3V, 4.2V | 150mA | 2.2V ~ 5.5V | Positive Fixed | Board(s) | ADP162 |
|

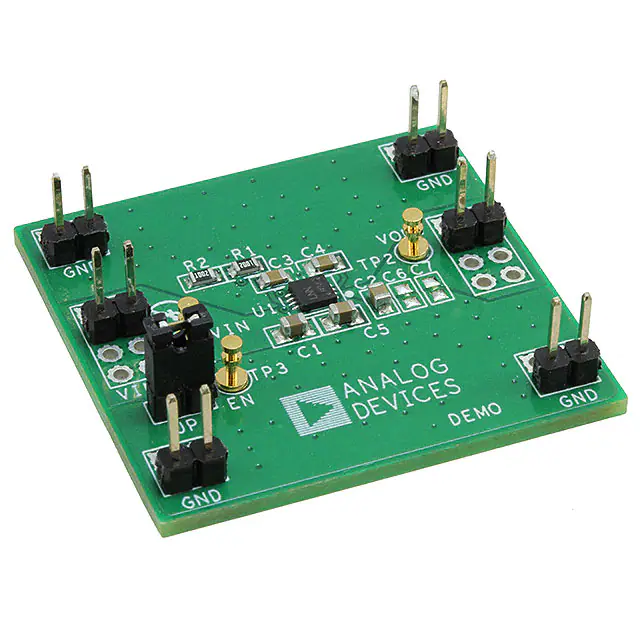

ADM7151CP-02-EVALZEVAL BOARD FOR ADM7151 |
2 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.5V ~ 4V | 800mA | 4.5V ~ 16V | Positive Adjustable | Board(s) | ADM7151 |
