Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERA-S15J822VRES TEMP SENS 8.2K OHM 5% 1/10W |
674 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 8.2 kOhms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J391VRES TEMP SENS 390 OHM 5% 1/10W |
219 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 390 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S39J471VRES TEMP SENS 470 OHM 5% 1/10W |
850 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 470 Ohms | - | ±5% | 0.1W, 1/10W | 3900ppm/°C | -40°C ~ 125°C | Surface Mount |
|
ERA-V27J152VRES TEMP SENS 1.5K OHM 5% 1/16W |
653 |
|
Datasheet |
ERAV | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 1.5 kOhms | - | ±5% | 0.063W, 1/16W | 2700ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-V15J221VRES TEMP SENS 220 OHM 5% 1/16W |
645 |
|
Datasheet |
ERAV | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 220 Ohms | - | ±5% | 0.063W, 1/16W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-V27J181VRES TEMP SENS 180 OHM 5% 1/16W |
30 |
|
Datasheet |
ERAV | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 180 Ohms | - | ±5% | 0.063W, 1/16W | 2700ppm/°C | -40°C ~ 125°C | Surface Mount |
|

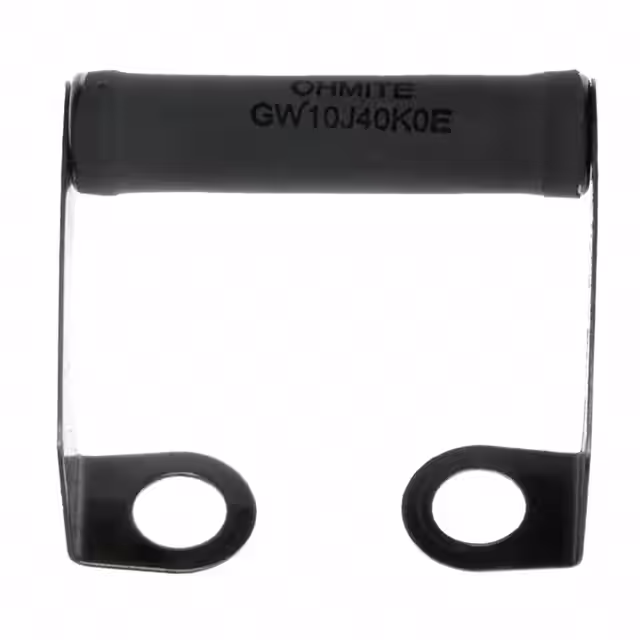

GW10J40K0ERES CAP BLEEDER 40K OHM 5% 10W |
100 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 40 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 22mm Pitch |
|
SH6918F700AHEP6918 SHUNT 700 AMPS, M3 |
50 |
|
Datasheet |
SHA | Bulk | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
YP1010KJRES CAP BLEEDER 10K OHM 5% 10W |
0 |
|
Datasheet |
YP, CGS | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 10 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 350°C | Capacitor, 31.8mm Pitch |
|
ARCS6918FL050S4RES SHUNT 50 UOHM 1% 25W |
92 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±1% | 25W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 52mm Pitch |
|
ARCS6918FL100S4RES SHUNT 100 UOHM 1% 25W |
78 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±1% | 25W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 52mm Pitch |
|
ARCS8518DL100A9RES SHUNT 100 UOHM 0.5% 36W |
61 |
|
Datasheet |
ARCS8518-L100 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±0.5% | 36W | 100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 60mm Pitch |
|
ARCS8518FL050S4RES SHUNT 50 UOHM 1% 36W |
84 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±1% | 36W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 60mm Pitch |
|
|
PCBS6918B100P2AC00PCB+SHUNT 100 UOHM 350A |
59 |
|
Datasheet |
- | Tray | Active | Current Sensor | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 12W | 100ppm/°C | -40°C ~ 125°C | Chassis Mount |
|
WSBM8518L1250JKRESISTOR SHUNT 125 UOHM 5% 36W |
88 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
ARCS8536FL050S4RES SHUNT 50 UOHM 1% 50W |
28 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±1% | 50W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 64mm Pitch |
|
ARCS8536FL025S4RES SHUNT 25 UOHM 1% 50W |
38 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 25 µOhms | - | ±1% | 50W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 64mm Pitch |
|
|
ARCS8536DL025A9RES SHUNT 25 UOHM 0.5% 50W |
69 |
|
Datasheet |
ARCS8536-L025 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 25 µOhms | - | ±0.5% | 50W | ±150ppm/°C | -50°C ~ 175°C | Shunt Fixture, 64mm Pitch |
|
|
ARCS8536DL050A9RES SHUNT 50 UOHM 0.5% 50W |
49 |
|
Datasheet |
ARCS8536-L050 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±0.5% | 50W | 100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 64mm Pitch |
|
ARCS8436FL025S4RES SHUNT 25 UOHM 1% 50W |
50 |
|
Datasheet |
ARCS | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 25 µOhms | - | ±1% | 50W | ±100ppm/°C | -55°C ~ 175°C | Screw Mount |
