Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HPBA010F800R100EHPBA 1HP 800R 150%/575V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 800 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020A95R050EHPBA 2HP 95R 100%/230V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 95 Ohms | - | ±10% | - | - | - | Screw Mount |
|

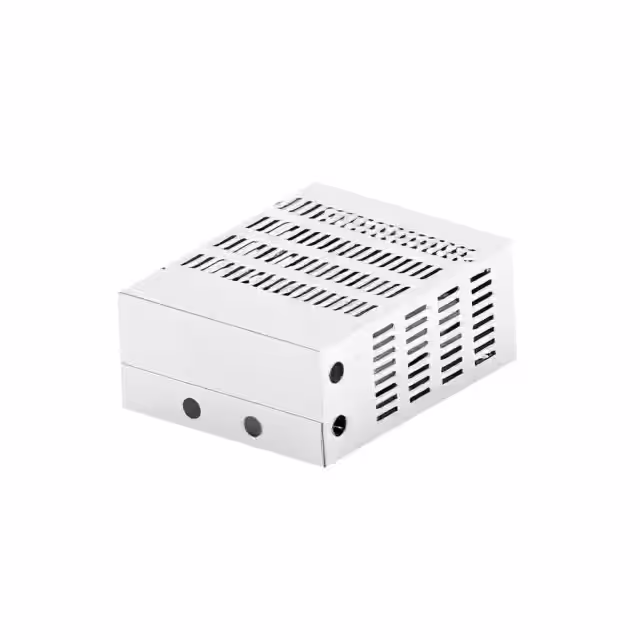

HPBA015A125R050EHPBA 1.5HP 125R 100%/230V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 125 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA015B85R050EHPBA 1.5HP 85R 150%/230V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 85 Ohms | - | ±10% | - | - | - | Screw Mount |
|

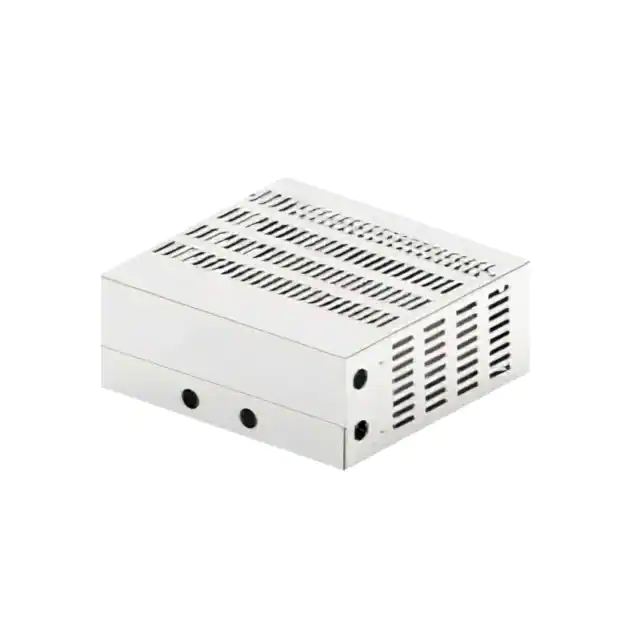

HPBA015D335R050EHPBA 1.5HP 335R 150%/460V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 335 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020C375R100EHPBA 2HP 375R 100%/460V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 375 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA015D335R100EHPBA 1.5HP 335R 150%/460V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 335 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020F400R050EHPBA 2HP 400R 150%/575V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 400 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020E575R100EHPBA 2HP 575R 100%/575V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 575 Ohms | - | ±10% | - | - | - | Screw Mount |
|

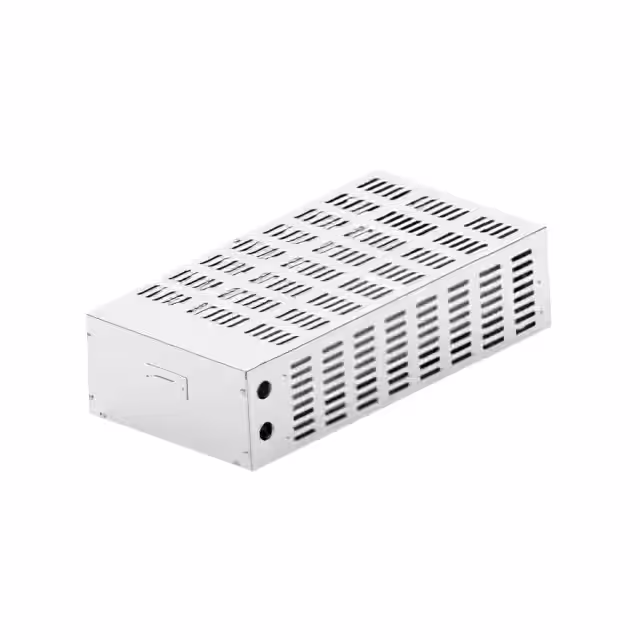

HPBA015F525R100EHPBA 1.5HP 525R 150%/575V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 525 Ohms | - | ±10% | - | - | - | Screw Mount |
|

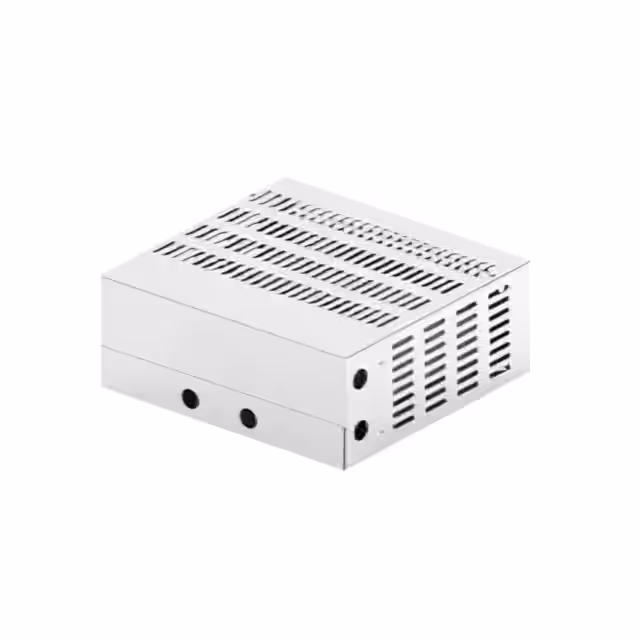

HPBA020B63R050EHPBA 2HP 63R 150%/230V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 63 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020B63R100EHPBA 2HP 63R 150%/230V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 63 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA020D250R050EHPBA 2HP 250R 150%/460V 50% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 250 Ohms | - | ±10% | - | - | - | Screw Mount |
|

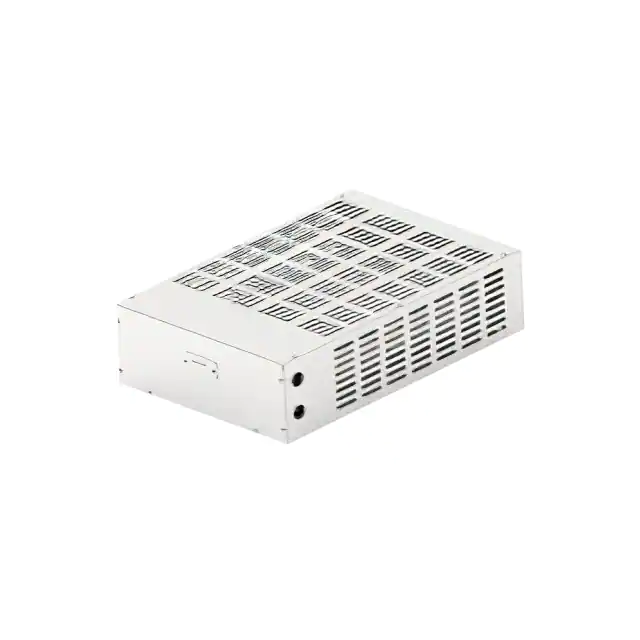

HPBA020D250R100EHPBA 2HP 250R 150%/460V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 250 Ohms | - | ±10% | - | - | - | Screw Mount |
|
HPBA015B85R100EHPBA 1.5HP 85R 150%/230V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 85 Ohms | - | ±10% | - | - | - | Screw Mount |
|

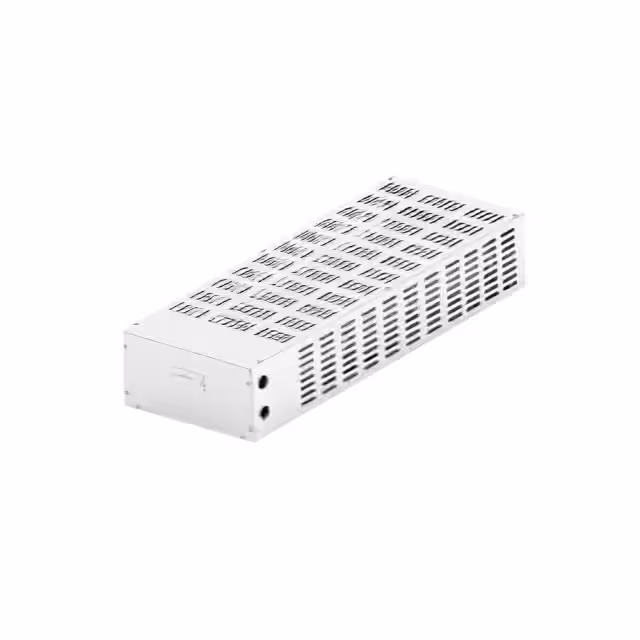

HPBA020F400R100EHPBA 2HP 400R 150%/575V 100% |
5 |
|
Datasheet |
HPBA | Box | Active | Bleeder, Braking | - | Wirewound | 400 Ohms | - | ±10% | - | - | - | Screw Mount |
|
WSMS5515L2500JKRES SHUNT 0.00025 OHM 5% 3W |
50 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 250 µOhms | - | ±5% | 3W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 40mm Pitch |
|
|
WSMS5515L5000JKRES SHUNT 0.0005 OHM 5% 3W |
49 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 500 µOhms | - | ±5% | 3W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 40mm Pitch |
|
|
WSMS5515L1600JKRES SHUNT 0.00016 OHM 5% 3W |
52 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 160 µOhms | - | ±5% | 3W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 40mm Pitch |
|
|
WSMS5515L3000JKRES SHUNT 0.0003 OHM 5% 3W |
35 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 300 µOhms | - | ±5% | 3W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 40mm Pitch |
