Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAV-Z-R000035-V01-10.0RESISTOR - BUS BAR SHUNT WITH PI |
27 |
|
Datasheet |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 35 µOhms | - | ±10% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

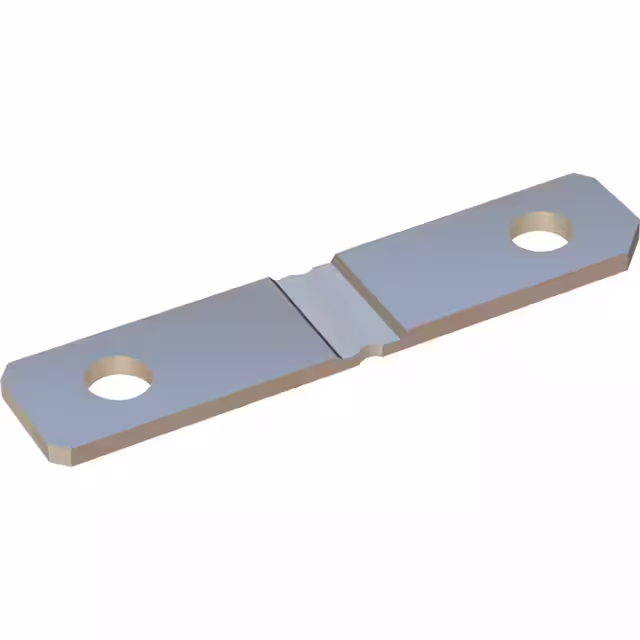

CSM2F-8518-L200J02SHUNTMETRIC 8518 L200 5% 50W TC5 |
99 |
|
Datasheet |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-8518-L200J00SHUNTMETRIC 8518 L200 5% 50W TC5 |
98 |
|
Datasheet |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|

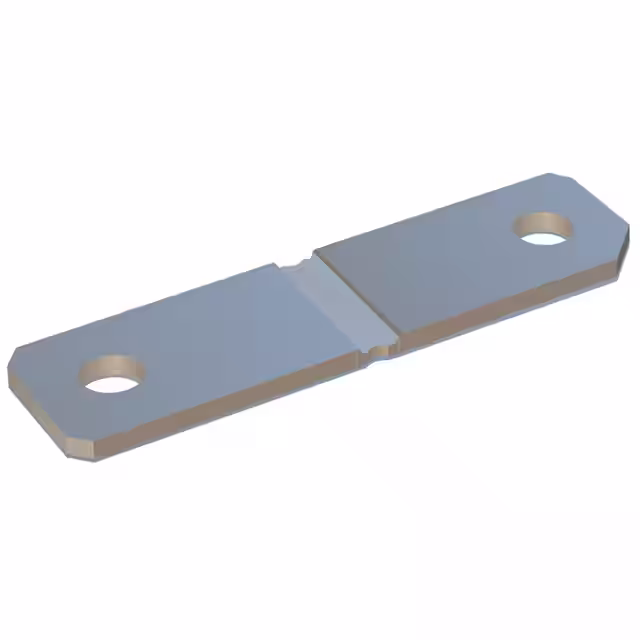

CSM2F-6918-L200J02SHUNTMETRIC 6918 L200 5% 50W TC5 |
95 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-6918-L200J00SHUNTMETRIC 6918 L200 5% 50W TC5 |
90 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-7036-L025J00SHUNTMETRIC 7036 L025 5% 36W TC5 |
100 |
|
Datasheet |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-8536-L025J02SHUNTMETRIC 8536 L025 5% 36W TC5 |
100 |
|
Datasheet |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-7036-L050J00SHUNTMETRIC 7036 L050 5% 36W TC5 |
80 |
|
Datasheet |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
WSBE8536L0500JKB250UOHMS 5% 50W SHUNT, BATTERY SP |
75 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 50W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
CSM2F-8536-L025J00SHUNTMETRIC 8536 L025 5% 36W TC5 |
60 |
|
Datasheet |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
BAX-Z-L005-01-5.0RESISTOR - BUS BAR SHUNT, 0.005, |
100 |
|
Datasheet |
BAX | Tray | Active | Shunt, Battery | - | - | 5 µOhms | - | ±5% | 50W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 64mm Pitch |
|
|
BAV-M-R00005-V01-5.0RESISTOR - BUS BAR SHUNT WITH PI |
16 |
|
Datasheet |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
KABR400 47R JMETAL CLAD BRAKING RESISTOR 400W |
15 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 47 Ohms | - | ±5% | 400W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
BAX-M-L020-01-5.0RESISTOR - BUS BAR SHUNT, 0.02, |
100 |
|
Datasheet |
BAX | Tray | Active | Shunt, Battery | - | - | 20 µOhms | - | ±5% | 40W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 64mm Pitch |
|
CSM2F-7036-L100J00SHUNTMETRIC 7036 L100 5% 36W TC5 |
100 |
|
Datasheet |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-8536-L100J00SHUNTMETRIC 8536 L100 5% 36W TC5 |
100 |
|
Datasheet |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
KABR800 100R JMETAL CLAD BRAKING RESISTOR 800W |
20 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 800W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR800 10R JMETAL CLAD BRAKING RESISTOR 800W |
20 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 10 Ohms | - | ±5% | 800W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR1000 220R JMETAL CLAD BRAKING RESISTOR 1000 |
14 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 220 Ohms | - | ±5% | 1000W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
ULV 500 100 J FL=500BRAKING RESISTOR - METAL CLAD, V |
3 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
