Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSBE8518L1000JKB2100 UOHMS 5% 36W SHUNT, BATTERY |
43 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

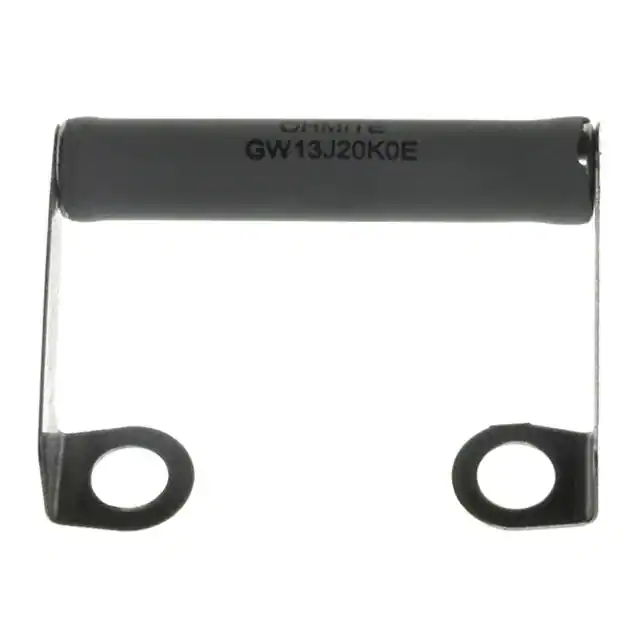

GW13J20K0ERES CAP BLEEDER 20K OHM 5% 13W |
100 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 20 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|

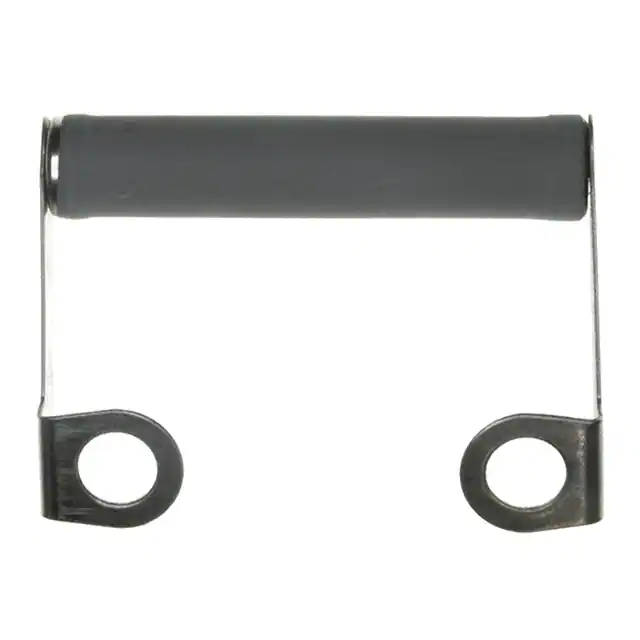

GW13J50K0ERES CAP BLEEDER 50K OHM 5% 13W |
82 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 50 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|
GW10J75K0ERES CAP BLEEDER 75K OHM 5% 10W |
58 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 75 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 22mm Pitch |
|
|
WSBS8518L1000JK40RESISTOR SHUNT 100 UOHM 5% 36W |
50 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBR8518L1000JK100UOHMS 5% 36W SHUNT, BATTERY S |
49 |
|
Datasheet |
WSBR | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBE8518L1000JK100 UOHMS 5% 36W SHUNT, BATTERY |
87 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBR8518L1000JKA4100UOHMS 5% 36W SHUNT, BATTERY S |
48 |
|
Datasheet |
WSBR | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

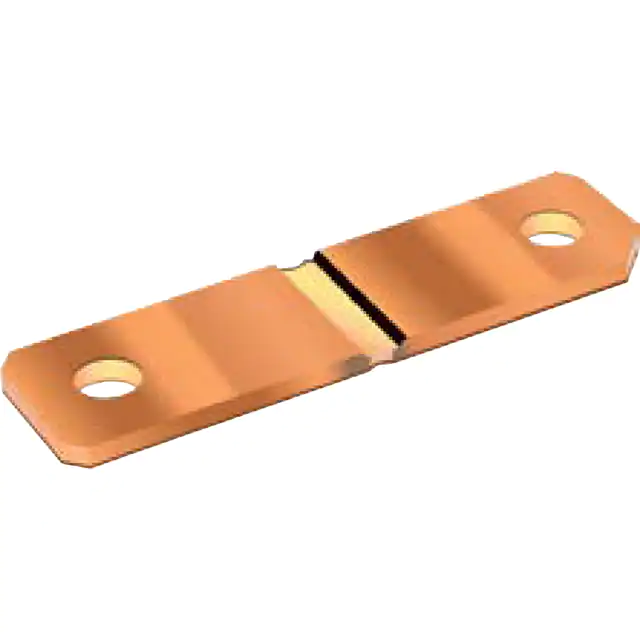

CSM2F-6918-L050J00SHUNTMETRIC 6918 L050 5% 50W TC5 |
100 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|

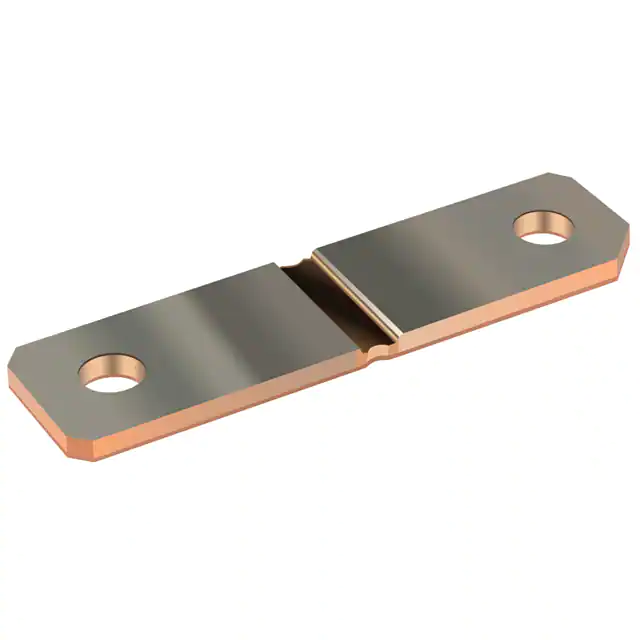

CSM2F-6918-L050J02SHUNTMETRIC 6918 L050 5% 50W TC5 |
100 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-8518-L050J00SHUNTMETRIC 8518 L050 5% 50W TC5 |
100 |
|
Datasheet |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±100ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-8518-L050J02SHUNTMETRIC 8518 L050 5% 50W TC5 |
100 |
|
Datasheet |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
BAS-M-R0001-E-5.0RESISTOR - BUS BAR SHUNT, 0.0001 |
85 |
|
Datasheet |
BAS | Tube | Active | Shunt, Battery | - | - | 100 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBE8536L0500JK50UOHMS 5% 50W SHUNT, BATTERY SP |
79 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 50W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBR8518L1000JKB4100UOHMS 5% 36W SHUNT, BATTERY S |
50 |
|
Datasheet |
WSBR | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBE8536L0500JKA250UOHMS 5% 50W SHUNT, BATTERY SP |
61 |
|
Datasheet |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 50W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
KABR300 100R JMETAL CLAD BRAKING RESISTOR 300W |
20 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
CSM2F-8518-L100J02SHUNTMETRIC 8518 L100 5% 50W TC5 |
99 |
|
Datasheet |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±125ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-6918-L100J00SHUNTMETRIC 6918 L100 5% 50W TC5 |
93 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-6918-L100J02SHUNTMETRIC 6918 L100 5% 50W TC5 |
79 |
|
Datasheet |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
