Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

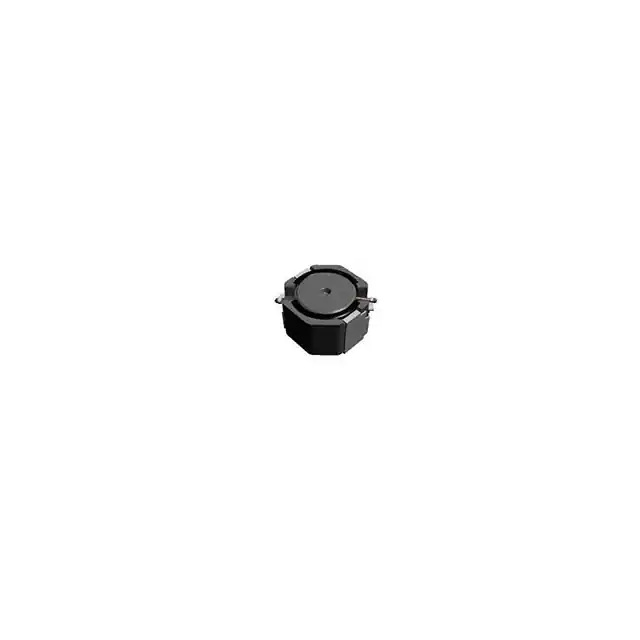

EST1060T1R5NDGAFIXED IND 1.5UH 8A 7 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8 A | 9A | Shielded | 7mOhm Max | - | 93MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
EST1060T6R8NDGAFIXED IND 6.8UH 5A 21 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5 A | 5.5A | Shielded | 21mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
NS12555T470MNVFIXED IND 47UH 2.7A 66.12MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 2.23A | Shielded | 66.12mOhm Max | - | 9.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12555T221MNVFIXED IND 220UH 1.18A 324MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1A | Shielded | 324mOhm Max | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12555T471MNVFIXED IND 470UH 800MA 624MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 680mA | Shielded | 624mOhm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12565T470MNVFIXED IND 47UH 2.78A 69 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.78 A | 3.34A | Shielded | 69mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12565T100MNVFIXED IND 10UH 4.75A 23.88 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6A | Shielded | 23.88mOhm Max | - | 15.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12565T221MNVFIXED IND 220UH 1.18A 327.6 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 327.6mOhm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
-0,33mm.jpg)
|
HK060310NJ-TFIXED IND 10NH 220MA 510MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 10 nH | ±5% | 220 mA | - | Unshielded | 510mOhm Max | 5 @ 100MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK060312NJ-TFIXED IND 12NH 190MA 680MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 12 nH | ±5% | 190 mA | - | Unshielded | 680mOhm Max | 5 @ 100MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
