Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

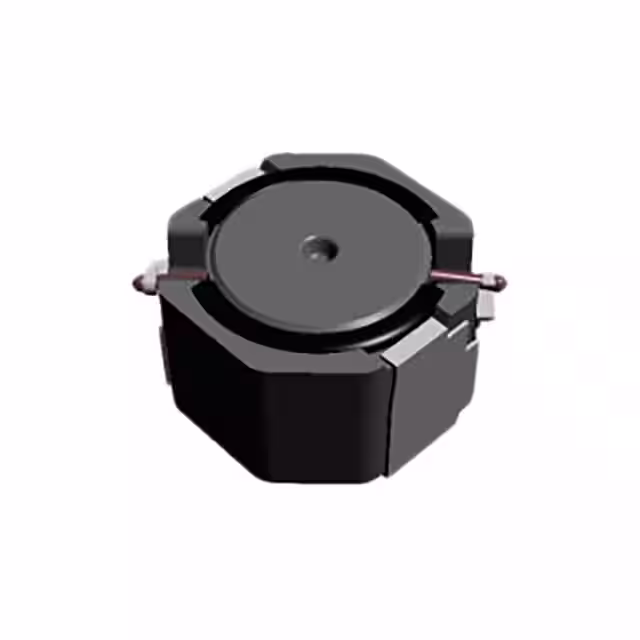

EST0645T101MDGAFIXED IND 100UH 850MA 320MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 850 mA | 550mA | Shielded | 320mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
|
EST0645T221MDGAFIXED IND 220UH 600MA 670MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 600 mA | 440mA | Shielded | 670mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
EST1040T1R5NDGAFIXED IND 1.5UH 3.3A 12 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.3 A | 8.6A | Shielded | 12mOhm Max | - | 68MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T2R2NDGAFIXED IND 2.2UH 3.1A 14 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 7.5A | Shielded | 14mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T3R3NDGAFIXED IND 3.3UH 2.9A 17 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.9 A | 6.6A | Shielded | 17mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T4R7NDGAFIXED IND 4.7UH 2.7A 25 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 5.2A | Shielded | 25mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T150MDGAFIXED IND 15UH 1.6A 52 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 2.9A | Shielded | 52mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T470MDGAFIXED IND 47UH 760MA 162MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 760 mA | 1.7A | Shielded | 162mOhm Max | - | 9.4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T221MDGAFIXED IND 220UH 410MA 636MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 410 mA | 770mA | Shielded | 636mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
|
EST1040T331MDGAFIXED IND 330UH 290MA 1.152 OHM Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 290 mA | 610mA | Shielded | 1.152Ohm Max | - | 3.4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
