Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCRNJ12575GL2R7NNFIXED IND 2.7UH 7.69A 10.2 MOHM Taiyo Yuden |
0 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±30% | 7.69 A | 13.91A | Shielded | 8.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
NR10050T1R3NFIXED IND 1.3UH 9A 8.84 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.3 µH | ±30% | 9 A | 11A | Shielded | 8.84mOhm Max | - | 53MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
NR10050T2R9NFIXED IND 2.9UH 7.3A 12.09 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.9 µH | ±30% | 7.3 A | 8.2A | Shielded | 12.09mOhm Max | - | 29MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
NS10165T1R5NNAFIXED IND 1.5UH 8.04A 7.2MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 7.2mOhm Max | - | 85.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
NS10165T4R7NNAFIXED IND 4.7UH 5.88A 13.2 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 13.2mOhm Max | - | 36.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LAYPH10060DL100MGAFIXED IND 10UH 4.3A 26 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3 A | 4.3A | Shielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL150MGAFIXED IND 15UH 3.6A 37 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3.7A | Shielded | 31mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL151MGAFIXED IND 150UH 1.2A 295MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 720 mA | 1.2A | Shielded | 246mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

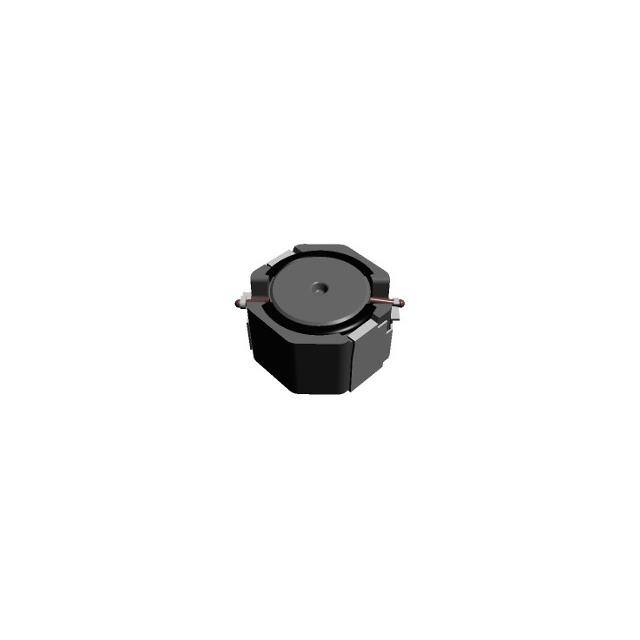

LAYPH10060DL1R5NGAFIXED IND 1.5UH 8A 7 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.6 A | 9A | Shielded | 5.6mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL6R8NGAFIXED IND 6.8UH 5A 21 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 5.5A | Shielded | 16mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
