Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

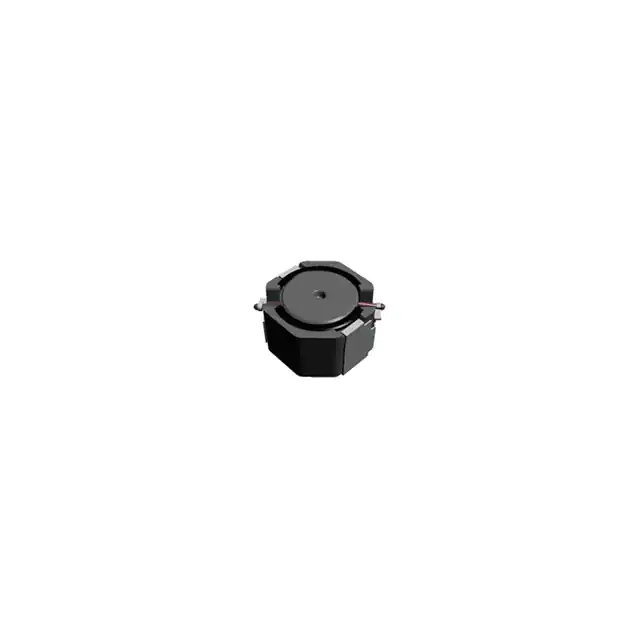

EST1040T471MDGAFIXED IND 470UH 250MA 1.44OHM SM Taiyo Yuden |
0 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 250 mA | 530mA | Shielded | 1.44Ohm Max | - | 3MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.169" (4.30mm) |
|
NS12555T151MNFIXED IND 150UH 1.43A 211.2 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.43 A | 1.22A | Shielded | 211.2mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12565T100MNFIXED IND 10UH 4.75A 23.88 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 23.88mOhm Max | - | 15.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12565T101MNFIXED IND 100UH 1.81A 147.6 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 147.6mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12565T221MNFIXED IND 220UH 1.18A 327.6 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 327.6mOhm Max | - | 3.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
NS10145T101MNVVFIXED IND 100UH 1.1A 276MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.1 A | 1.4A | Shielded | 276mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T100MNVVFIXED IND 10UH 3.1A 32.4MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.1 A | 4.22A | Shielded | 32.4mOhm Max | - | 21.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10155T3R3NNVVFIXED IND 3.3UH 6.49A 11.7 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 6.49 A | 8.5A | Shielded | 11.7mOhm Max | - | 40.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
|
NS10155T150MNV8FIXED IND 15UH 3.4A 37.2MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.4 A | 4.03A | Shielded | 37.2mOhm Max | - | 15.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
|
NS12575T102MNFIXED IND 1MH 680MA 1.112OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 680 mA | 800mA | Shielded | 1.112Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
