Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2906851SPD 21VAC/30VDC MCOV 1 POLE |
4 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | 150 A | - | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
LST3205VL2NT1SPD TYP 1/TYP 2/TYP4 320VAC MCOV |
0 |
|
Datasheet |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 320VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|

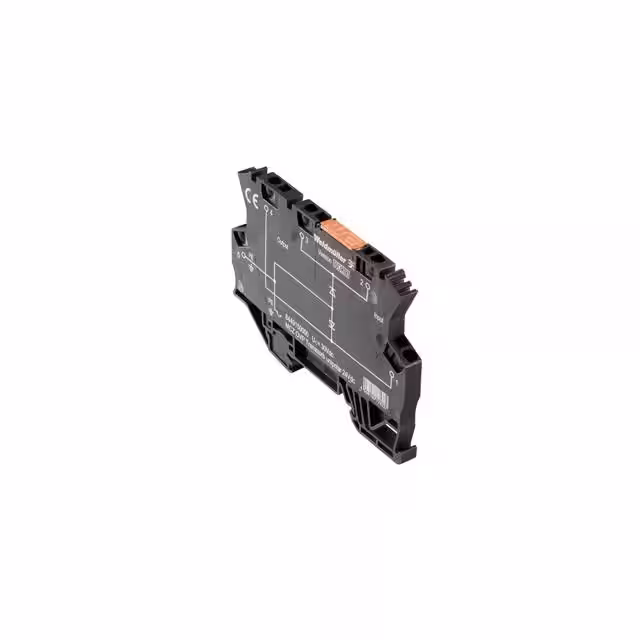

8449150000OVP UNIPOLAR 24VAC/DC |
0 |
|
Datasheet |
MCZovp | Bulk | Active | - | Module Only | 1 | 30V | - | 112 A | - | - | 65 V | -40°C ~ 60°C | - | DIN Rail | CE |
|

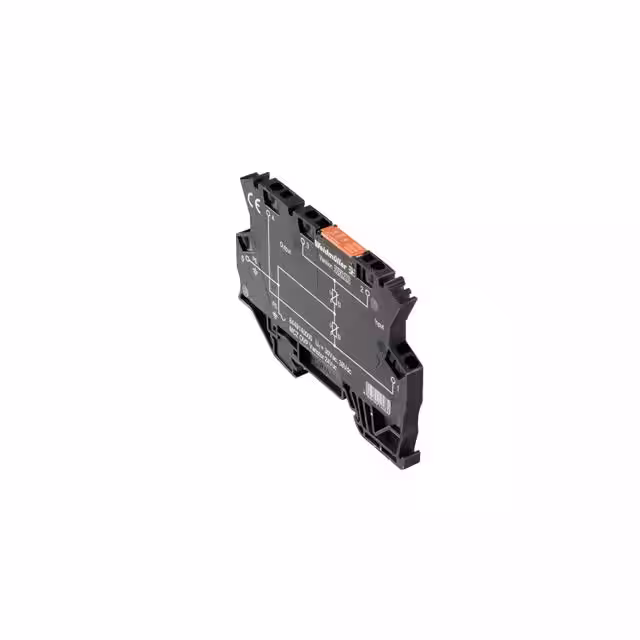

8449140000OVP VARISTOR 24VAC/DC |
0 |
|
Datasheet |
MCZovp | Bulk | Active | - | Module Only | 1 | 30V | - | 125 A | - | - | 55 V | -40°C ~ 60°C | - | DIN Rail | CE |
|
|
2906841SPD 21VAC/30VDC MCOV 1 POLE |
2 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | 2 kA | - | - | - | 160 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|

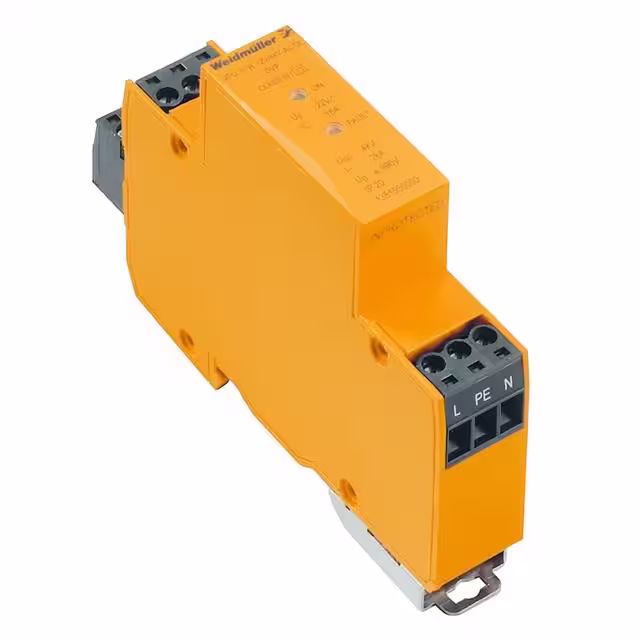

1351580000SPD TYPE 3 32VAC/42VDC MCOV |
1 |
|
Datasheet |
- | Bulk | Active | Type 3 | Base + Module | 1 | 32VAC, 42VDC | - | 2 kA | 1.5 kA | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC, UL |
|

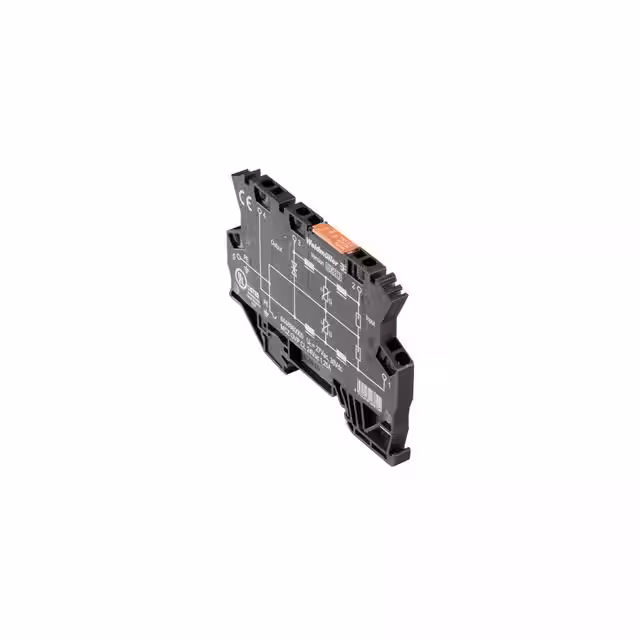

8448960000OVP C-LOOP 24VAC 1.25A |
0 |
|
Datasheet |
MCZovp | Bulk | Active | - | Module Only | 1 | 27V | - | 5 kA | - | - | 130 V | -40°C ~ 60°C | - | DIN Rail | CE, UL |
|
|
1280-1S-230SPD TYPE 1/TYPE 2 275VAC MCOV |
5 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 275VAC | 20 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-2S-230SPD TYPE 1/TYPE 2 275VAC MCOV |
0 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 275VAC | 20 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1064640000SPD 42VDC/30VAC MCOV 1 POLE |
0 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 42VDC, 30VAC | 2.5 kA | 20 kA | - | - | 1 kV | -40°C ~ 70°C | - | DIN Rail | CE, EAC |
|

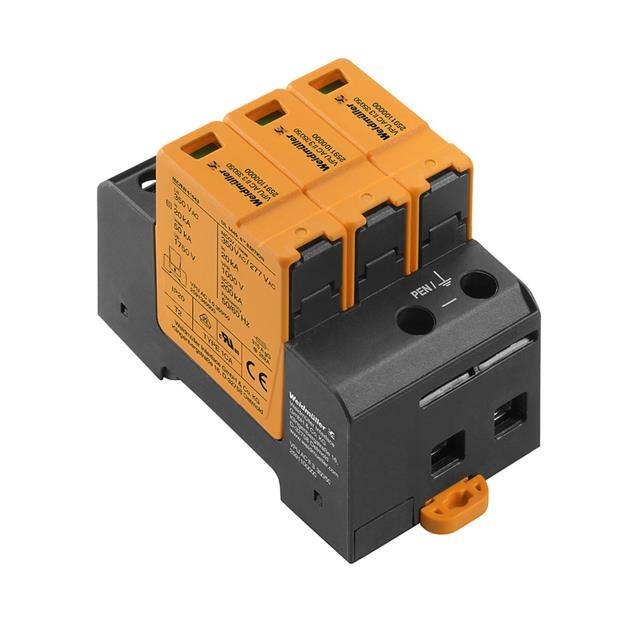

2591100000SPD TYPE 1 350VAC MCOV 3 POLE |
1 |
|
Datasheet |
VPU | Bulk | Active | Type 1 | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 50 kA | - | - | -40°C ~ 85°C | - | DIN Rail | CE, cURus, EAC, VDE |
|

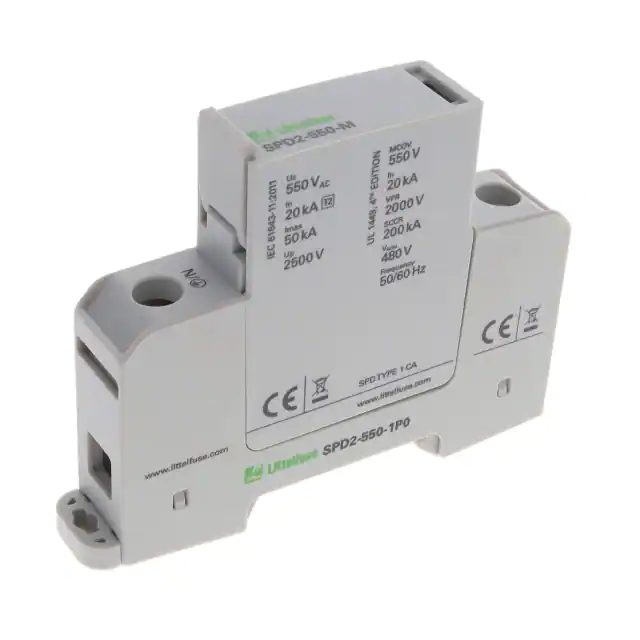

SPD2-550-1P0SPD TYP 1/TYP 2 550V MCOV 1 POLE |
0 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 550V | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Visual Life Indicator | DIN Rail | CE, cURus, VDE |
|

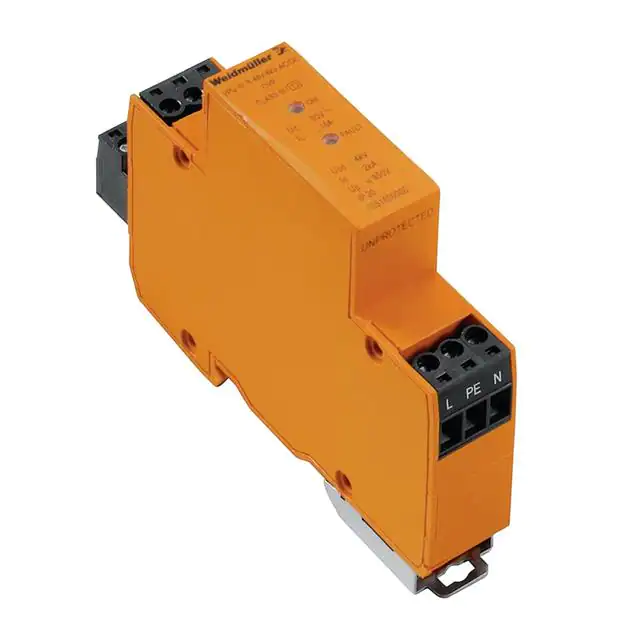

1351600000SPD TYPE 3 50VAC/75VDC MCOV |
1 |
|
Datasheet |
- | Bulk | Active | Type 3 | Base + Module | 1 | 50VAC, 75VDC | - | 2 kA | 1.5 kA | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC, UL |
|
|
1064870000SPD 30VAC MCOV 1 POLE |
0 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 30VAC | 2.5 kA | 20 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | CE |
|

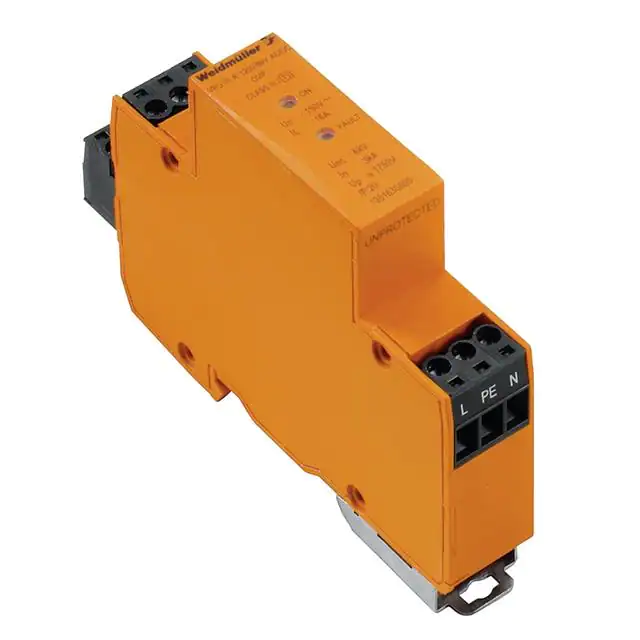

1351630000SPD TYPE 3 150VAC/212VDC MCOV |
1 |
|
Datasheet |
- | Bulk | Active | Type 3 | Base + Module | 1 | 150VAC, 212VDC | - | 3 kA | 1.5 kA | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC |
|
|
2736310000SPD TYPE 2 300VAC MCOV 1 POLE |
0 |
|
Datasheet |
VPU AC II | Bulk | Active | Type 2 | - | 1 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
2730450000SPD TYPE 1 150V MCOV 1 POLE |
1 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 150V | 20 kA | 50 kA | 200 kA | 600 V | - | -40°C ~ 85°C | - | DIN Rail | cULus |
|
|
1351650000SPD TYPE 3 300VAC MCOV 1 POLE |
0 |
|
Datasheet |
VPU | Bulk | Active | Type 3 | Base + Module | 1 | 300VAC | - | 3 kA | 1.5 kA | - | 1.2 kV | -40°C ~ 70°C | - | DIN Rail | CE, EAC |
|

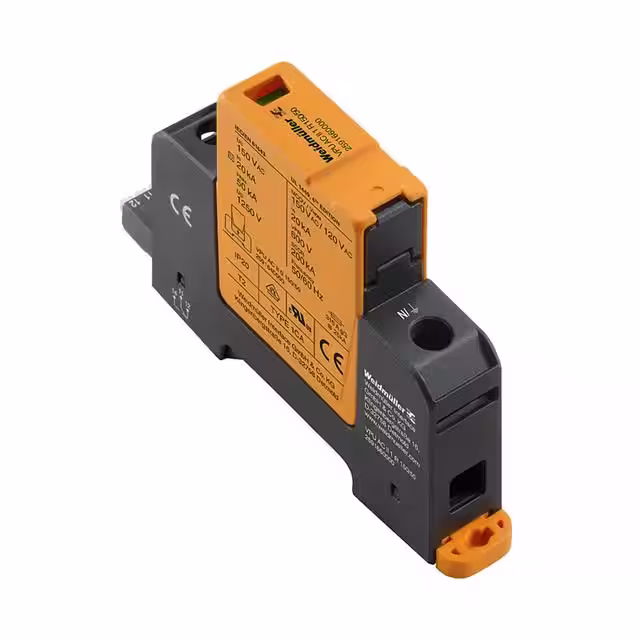

2591660000SPD TYPE 1 150VAC MCOV 1 POLE |
1 |
|
Datasheet |
VPU | Bulk | Active | Type 1 | Base + Module | 1 | 150VAC | 20 kA | 50 kA | 50 kA | - | - | -40°C ~ 85°C | - | DIN Rail | CE, cURus, VDE |
|
|
2906716SPD 21VAC/30VDC MCOV 1 POLE |
1 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 20 kA | - | - | 140 V | -40°C ~ 80°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
