Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

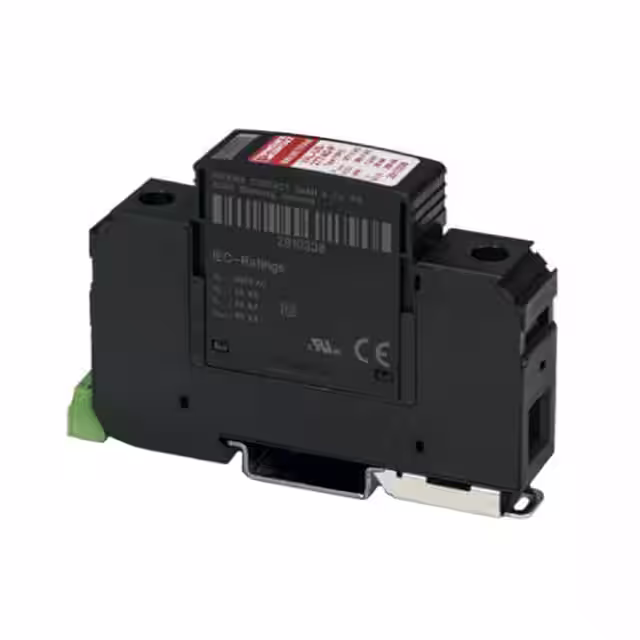

2910372SPD TYPE 2 385VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 1.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

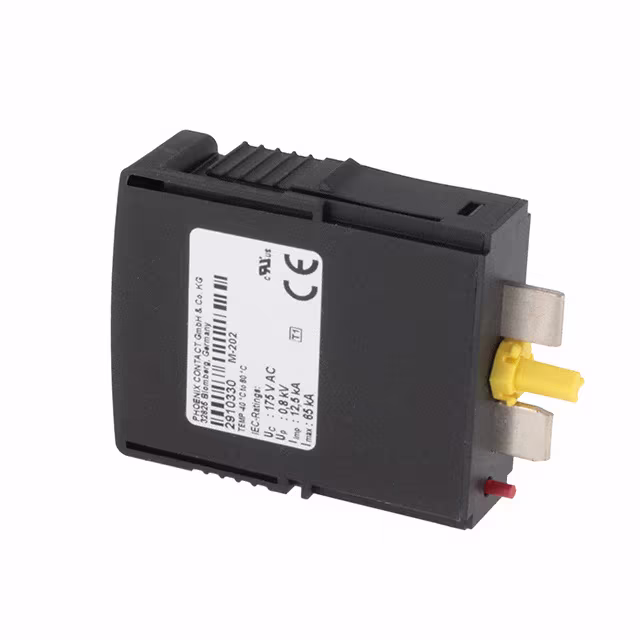

2910330SPD TYPE 1 175VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL | Bulk | Active | Type 1 | Module Only | 1 | 175VAC | 12.5 kA | 65 kA | 25 kA | 700 V | 800 V | -40°C ~ 80°C | - | Base Mount | cUR, cURus, UR |
|

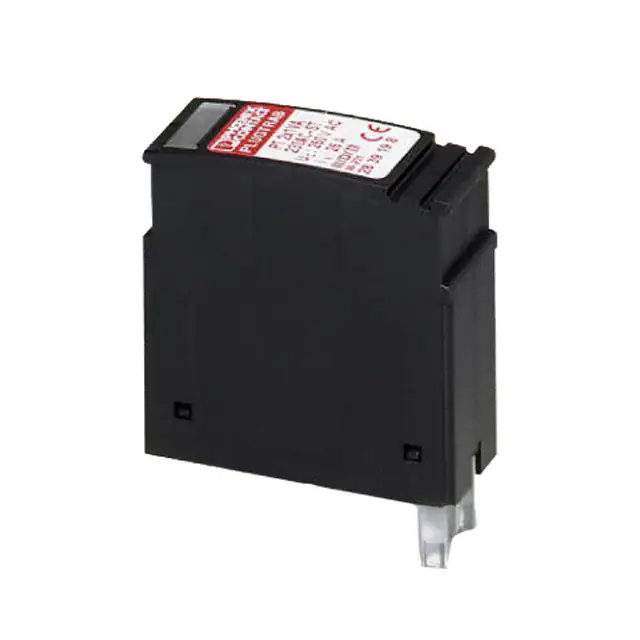

2839198SPD 275VAC/275VDC MCOV 1 POLE |
1 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 275VAC, 275VDC | 2.5 kA | 5 kA | - | - | 900 V | -40°C ~ 85°C | - | Base Mount | EAC, UL |
|
M9L12240SPD TYPE 1 350VAC MCOV 2 POLE |
1 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 2 | 350VAC | 20 kA | 75 kA | 200 kA | - | 1.2 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
1106014SPD 30VAC/36VDC MCOV 1 POLE |
1 |
|
Datasheet |
TTC | Box | Active | - | Base + Module | 1 | 30VAC, 36VDC | 350 A | 10 kA | - | - | 900 V | -40°C ~ 85°C | - | Chassis Mount | cUL, UL |
|

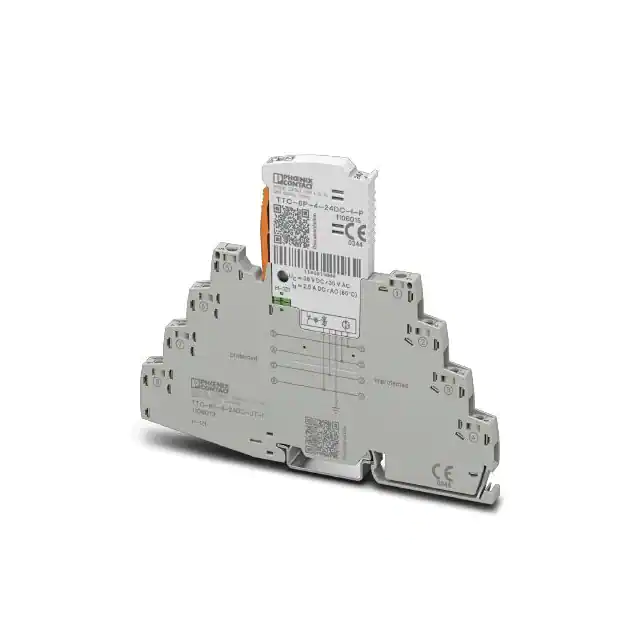

1106013SPD 30VAC/36VDC MCOV 1 POLE |
1 |
|
Datasheet |
TTC | Box | Active | - | Base + Module | 1 | 30VAC, 36VDC | 350 A | 10 kA | - | - | 900 V | -40°C ~ 85°C | - | DIN Rail | cUL, UL |
|

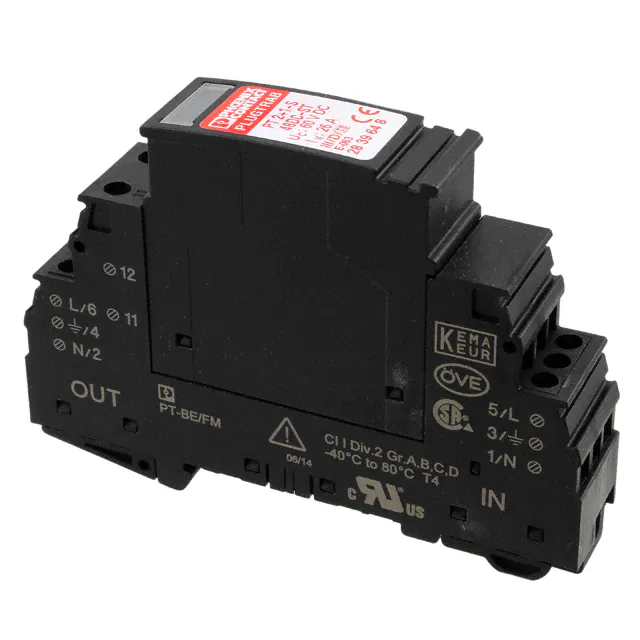

2817958SPD TYPE 3 60VDC MCOV 1 POLE |
0 |
|
Datasheet |
- | Bulk | Active | Type 3 | Base + Module | 1 | 60VDC | 500 A | - | 200 A | - | 120 V | -40°C ~ 80°C | - | DIN Rail | EAC |
|
2730520000SPD 150V MCOV 2 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 1 kV | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|

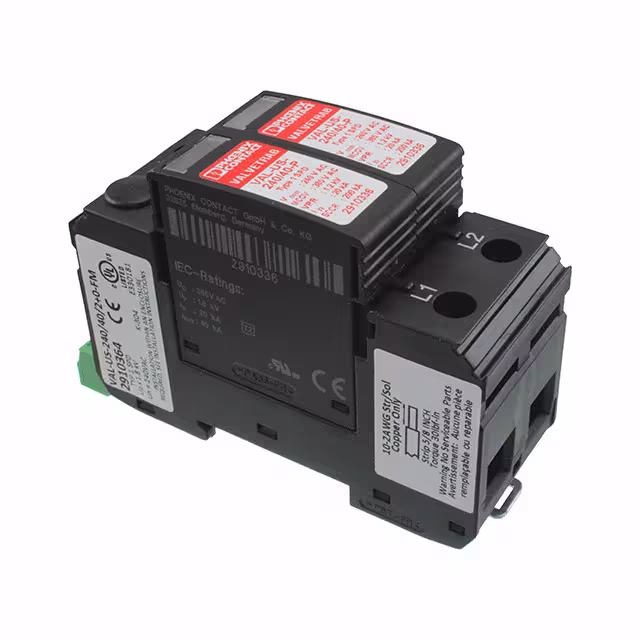

2910364SPD TYPE 2 385VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 2.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

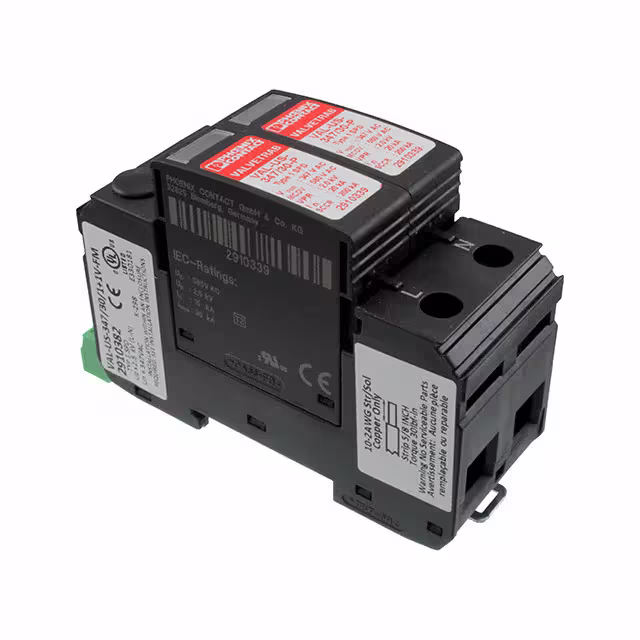

2910382SPD TYPE 2 580VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 580VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
HAW562-AAASPD 1 POLE |
1 |
|
Datasheet |
- | Box | Active | - | Base + Module | 1 | - | - | - | - | - | - | - | - | Chassis Mount | - |
|

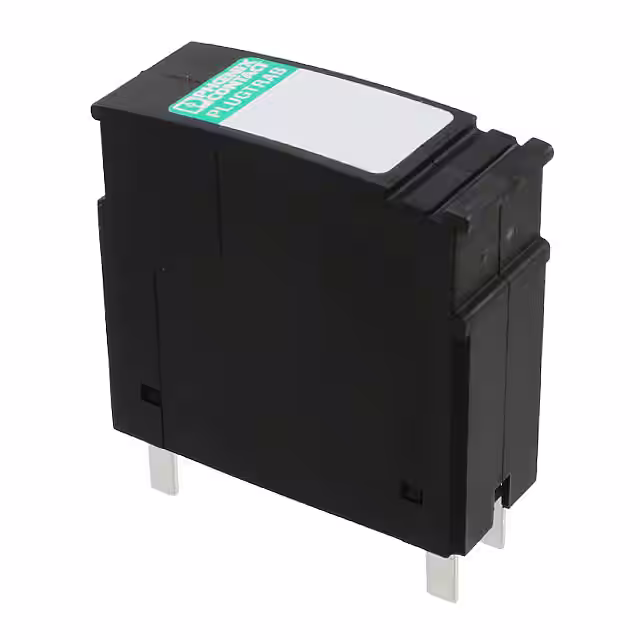

2839240SPD 19VAC/27VDC MCOV 1 POLE |
1 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 19VAC, 27VDC | 365 A | 20 kA | - | - | 1 kV | -40°C ~ 85°C | - | Base Mount | cUL, EAC, UL |
|

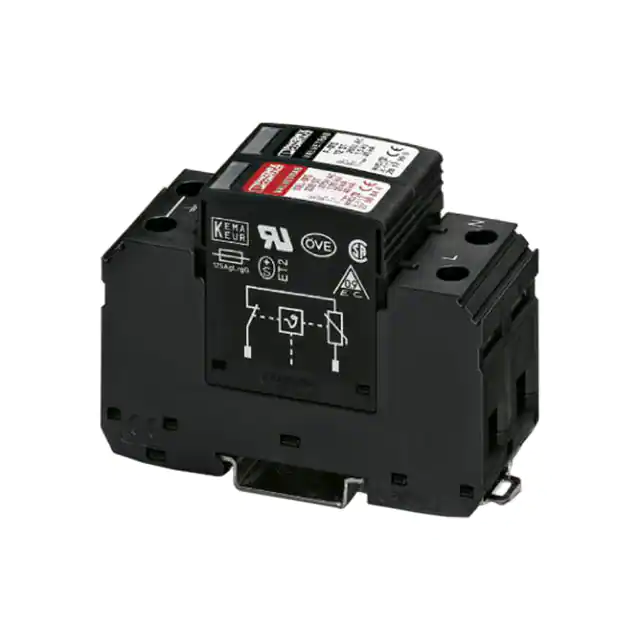

2804429SPD TYPE 2 275VAC MCOV 2 POLE |
1 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 2 | 275VAC | 20 kA | 40 kA | 25 kA | - | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, CCA, CSA, cUL, cULus, EAC, KEMA-KEUR, OVE, UL |
|

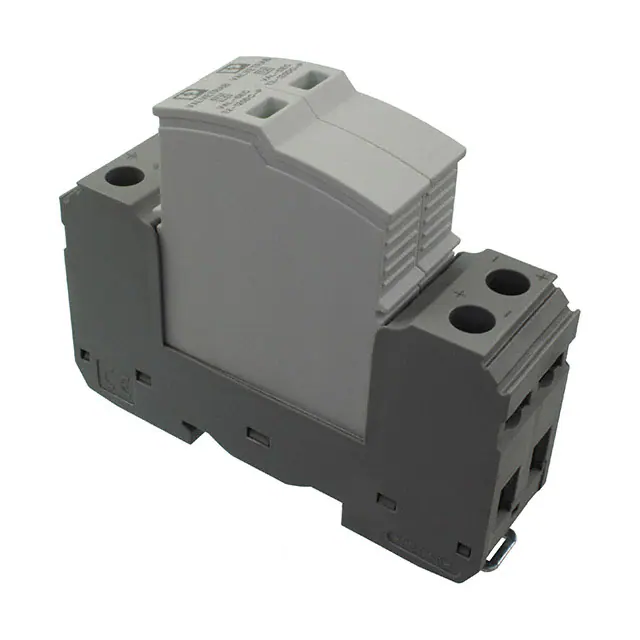

2907874SPD TYPE 2 150VDC MCOV 1 POLE |
1 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 150VDC | 20 kA | 40 kA | 6 kA | 1.5 kV | 1.8 kV | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
|
2730780000SPD 750VAC MCOV 3 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 3 | 750VAC | 20 kA | 35 kA | 200 kA | 5 kV | 3.4 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|
|
2730600000SPD 350VAC MCOV 3 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 200 kA | 2 kV | 1.75 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|

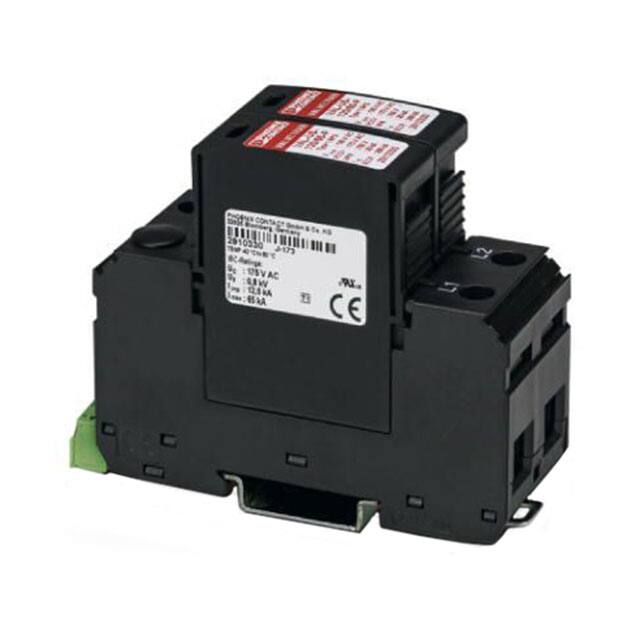

2910357SPD TYPE 1/TYPE 2 175VAC MCOV |
0 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 175VAC | 20 kA | 25 kA | 25 kA | 1.2 kV | 800 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2730610000SPD 350VAC MCOV 4 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 4 | 350VAC | 40 kA | 50 kA | 200 kA | 2 kV | 1.75 kV | -40°C ~ 85°C | - | DIN Rail | cULus, VDE |
|
2910383SPD TYPE 1 580VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 580VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2910391SPD TYPE 2 750VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.9 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
