Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE3-1A-DC-1-ALSWITCH TOGGLE SPST 20A 12V |
601 |
|
Datasheet |
TE3 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 19.30mm | Illuminated | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE3-1A-DC-1-RLSWITCH TOGGLE SPST 20A 12V |
589 |
|
Datasheet |
TE3 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 19.30mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE3-1A-DC-1-GLSWITCH TOGGLE SPST 20A 12V |
568 |
|
Datasheet |
TE3 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 19.30mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
34BWSP52B4M7QTSWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP11B1W4QTSWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
TC-1A-DC-W-2SWITCH TOGGLE SPST 6A 12V |
870 |
|
Datasheet |
TC | Bulk | Active | Panel Mount | SPST | On-Off | 6A (DC) | - | 12 V | Standard Round | 11.10mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 85°C |
|
|
34ASP33B4V2QTSWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
TA2-1D-DC-5SWITCH TOGGLE SPDT 20A 125V |
338 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
TA2-1D-DC-1SWITCH TOGGLE SPDT 20A 125V |
172 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
|
34CMSP12B4M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

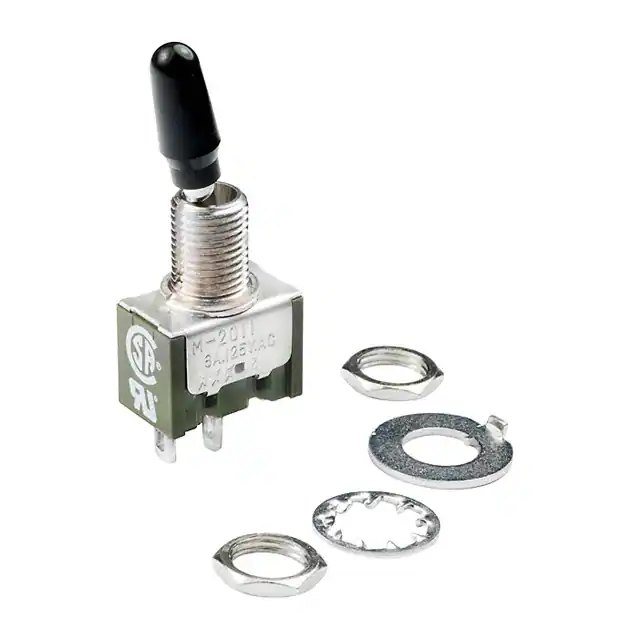

M2011SS1W01/UC-BASWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2011SS1W01-BASWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2011SS1W01/UC-BBSWITCH TOGGLE SPST 6A 125V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | White Cap | -30°C ~ 85°C |
|
|
34CMSP11B5V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.11mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825139-7SWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1F-DC-1SWITCH TOGGLE SPDT 20A 125V |
1,193 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
TD1-1A-DC-3-BSWITCH TOGGLE SPST 50A 12V |
950 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPST | On-Off | 50A (DC) | - | 12 V | Flatted | 28.80mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 85°C |
|
TD1-1A-DC-3-RSWITCH TOGGLE SPST 50A 12V |
788 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPST | On-Off | 50A (DC) | - | 12 V | Flatted | 28.80mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 85°C |
|
TA2-1F-DC-5SWITCH TOGGLE SPDT 20A 125V |
429 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
|
34ASP22B4M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
