Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTG 406 PSWITCH TOGGLE 4-POLE ON OFF ON |
592 |
|
Datasheet |
MTG | Box | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -45°C ~ 140°C |
|
|
MTA 406 PASWITCH TOGGLE 4-POLE ON ON ON |
494 |
|
Datasheet |
MTA | Box | Active | Panel Mount | 4PDT | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
54109SWITCH TOGGLE SPST 25A 12V |
148 |
|
Datasheet |
54100 | Bulk | Active | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.46mm | Illuminated | Incandescent, Red/White | 12 VDC | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN22WBW01SWITCH TOGGLE 6A 125V |
186 |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | - | - |
|
|
55046-BXSWITCH TOGGLE DPDT 25A 12V |
105 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7-6437630-2SWITCH TOGGLE DPDT 20A 125V |
495 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|
|
S823D/CULSWITCH TOGGLE DPDT 30A 30V |
4 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S832/USWITCH TOGGLE 3PDT 30A 125V |
8 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
8-6437630-0SWITCH TOGGLE 4PST 20A 125V |
250 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
101TL1-1SWITCH TOGGLE SPDT 15A 125V |
100 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

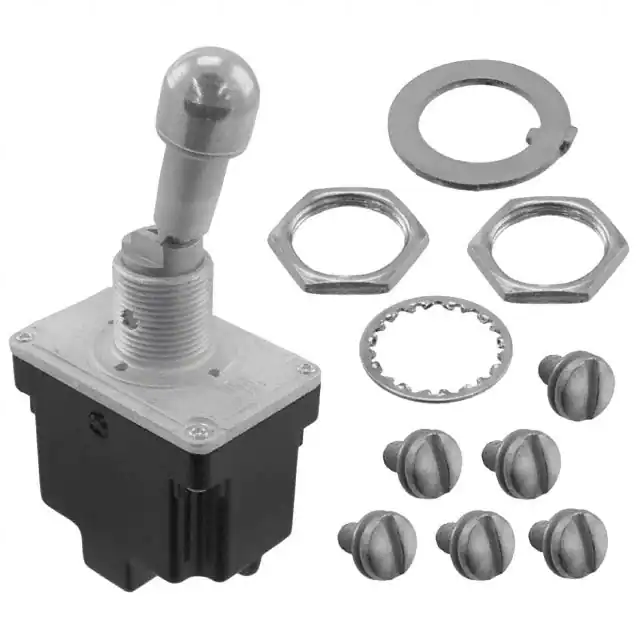

2TL1-2GSWITCH TOGGLE DPST 15A 125V |
37 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
TP-10185SWITCH TOGGLE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TE1-1A-DC-1-PBSWITCH TOGGLE SPST 20A 12V |
1,868 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 27.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
|
3-1825137-4SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3-1825137-3SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TE1-1D-DC-1-PBSWITCH TOGGLE SPDT 20A 12V |
283 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (DC) | - | 12 V | Flatted | 27.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE1-1F-DC-1-PBSWITCH TOGGLE SPDT 20A 12V |
292 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (DC) | - | 12 V | Flatted | 27.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE1-1A-DC-1-GLSWITCH TOGGLE SPST 20A 12V |
1,769 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 27.00mm | Illuminated | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE1-1A-DC-1-ALSWITCH TOGGLE SPST 20A 12V |
1,531 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 27.00mm | Illuminated | Incandescent, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
|
TE1-1A-DC-1-RLSWITCH TOGGLE SPST 20A 12V |
966 |
|
Datasheet |
TE1 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 27.00mm | Illuminated | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 1 | - | - | -25°C ~ 85°C |
