Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTE 206 PASWITCH TOGGLE 2-POLE ON ON ON |
498 |
|
Datasheet |
MTE | Box | Active | Panel Mount | DPDT | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -45°C ~ 140°C |
|
|
MTA 306 FSWITCH TOGGLE 3-POLE MOM - ON |
500 |
|
Datasheet |
MTA | Box | Active | Panel Mount | 3PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
MTA 406 TSWITCH TOGGLE 4-POLE MOM OFF ON |
500 |
|
Datasheet |
MTA | Box | Active | Panel Mount | 4PDT | Mom-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
MTG 206 SASWITCH TOGGLE 2-POLE MOM ON MOM |
500 |
|
Datasheet |
MTG | Box | Active | Panel Mount | DPDT | Mom-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -45°C ~ 140°C |
|
|
MTG 206 PASWITCH TOGGLE 2-POLE ON ON ON |
496 |
|
Datasheet |
MTG | Box | Active | Panel Mount | DPDT | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -45°C ~ 140°C |
|
|
MTW 106 ESWITCH TOGGLE 1-POLE ON OFF ON |
499 |
|
Datasheet |
MTW | Box | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -45°C ~ 140°C |
|
|
MTL 206 PSWITCH TOGGLE 2-POLE ON OFF ON |
499 |
|
Datasheet |
MTL | Box | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
MTW 206 NSWITCH TOGGLE 2-POLE ON - ON |
463 |
|
Datasheet |
MTW | Box | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -45°C ~ 140°C |
|
|
MTE 406 PSWITCH TOGGLE 4-POLE ON OFF ON |
500 |
|
Datasheet |
MTE | Box | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -45°C ~ 140°C |
|
|
MTE 306 ESWITCH TOGGLE 3-POLE ON OFF ON |
500 |
|
Datasheet |
MTE | Box | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -45°C ~ 140°C |
|

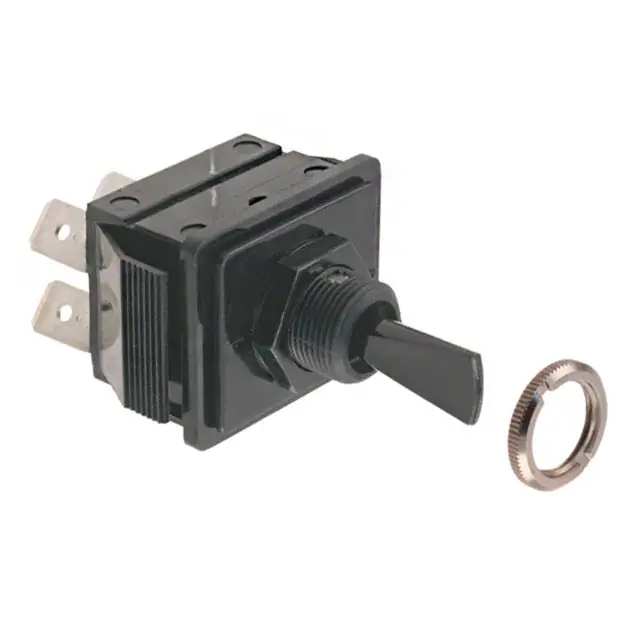

C1750HSWITCH TOGGLE DPST 16A 250V |
793 |
|
Datasheet |
1750 | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 250 V | - | Flatted | 16.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
MTG 306 DSWITCH TOGGLE 3-POLE ON - ON |
500 |
|
Datasheet |
MTG | Box | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -45°C ~ 140°C |
|
|
MTL 306 DSWITCH TOGGLE 3-POLE ON - ON |
496 |
|
Datasheet |
MTL | Box | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
MTL 206 PASWITCH TOGGLE 2-POLE ON ON ON |
500 |
|
Datasheet |
MTL | Box | Active | Panel Mount | DPDT | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
55065-03-BXSWITCH TOGGLE DPDT 25A 12V |
116 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MTG 406 NSWITCH TOGGLE 4-POLE ON - ON |
500 |
|
Datasheet |
MTG | Box | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -45°C ~ 140°C |
|
|
C3951BASWITCH TOGGLE DPST-NO 16A 125V |
482 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
MTA 406 SSWITCH TOGGLE 4-POLE MOM OFF MOM |
500 |
|
Datasheet |
MTA | Box | Active | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|
|
4-6437630-5SWITCH TOGGLE SP3T 6A 250V |
146 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -20°C ~ 70°C |
|
|
ST5SP22T1S1SWITCH TOGGLE SPST 20A 125V |
448 |
|
Datasheet |
ST5 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 16.99mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | IP40 | - | -10°C ~ 125°C |
