Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

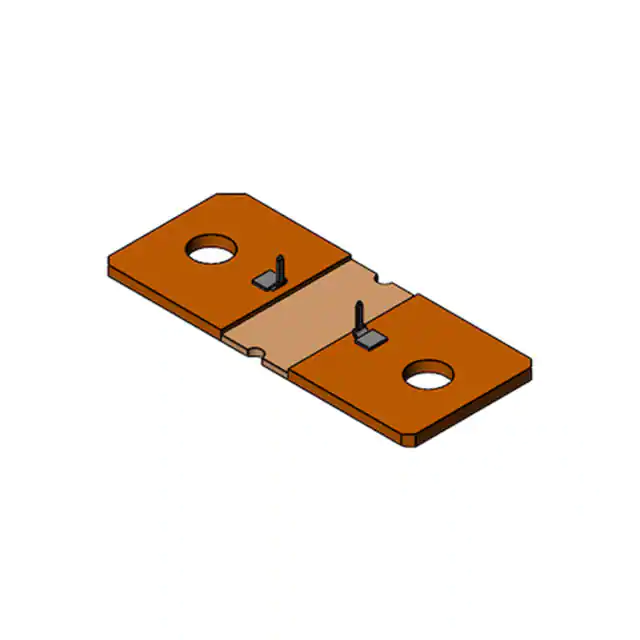

WSBS8536L1250JK20RES SHUNT 125U OHM 5% 50W |
101 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
WSBS8518L2500JT14RESISTOR SHUNT 250 UOHM 5% 36W |
196 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L0500JTRESISTOR SHUNT 50 UOHM 5% 36W |
157 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JTP4RESISTOR SHUNT 125 UOHM 5% 36W |
112 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1000JTP4WSBS8518-P4.000100 5% TRAY PACK |
111 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L5000JT34RESISTOR SHUNT 500 UOHM 5% 25W |
108 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

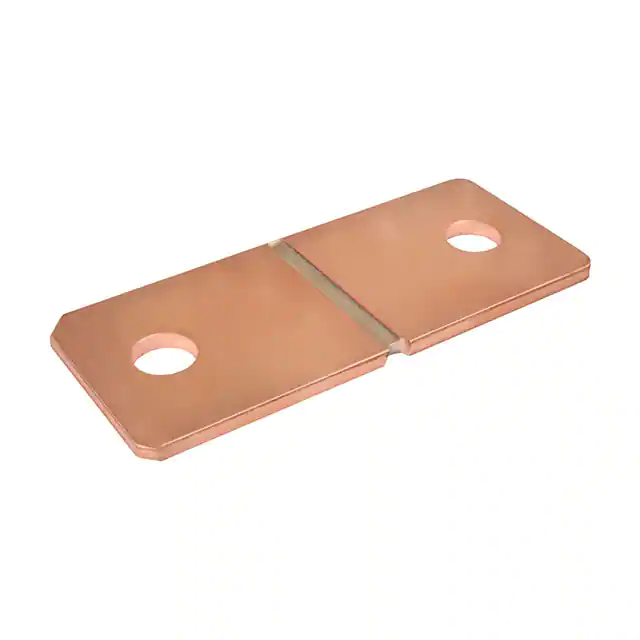

WSBS8536L1250JK250 UOHMS 5% 50W SHUNT, BATTERY |
123 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
|
WSBS8518L1000JKP3RESISTOR SHUNT 100 UOHM 5% 36W |
115 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
CSM2F-8518-L100J01RESISTOR SHUNT 100 UOHM 5% 36W |
177 |
|
Datasheet |
CSM2F-8518 | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±125ppm/°C | -40°C ~ 170°C | Surface Mount |
|

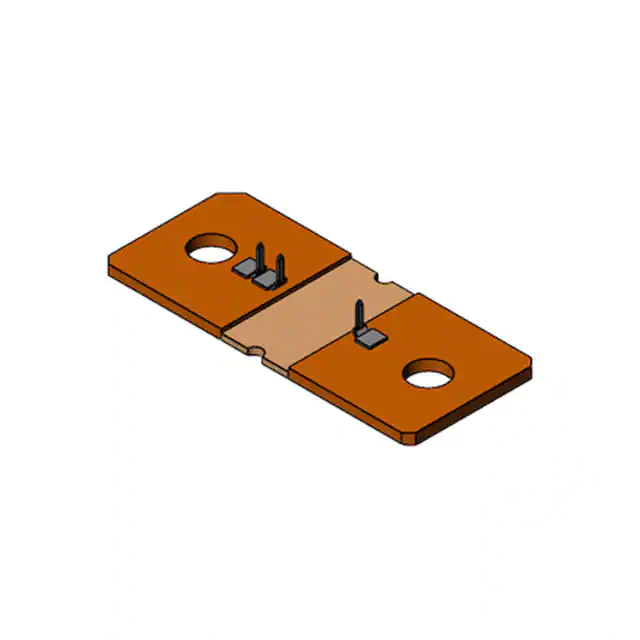

WSBS8536L1250JK40250 UOHMS 5% 50W SHUNT, BATTERY |
102 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
|
TV1206CT-50R0GN-91TRDC-4GHZ 5W 50OHM AL2O3 CHIP TERM |
500 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TV1005CT-50R0JN-91TRDC-6GHZ 5W 50OHM AL2O3 CHIP TERM |
496 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TV0402CT-50R0JN-96TRDC-26GHZ 2.5W 50OHM BEO CHIP TER |
388 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
GW13J40K0ERES CAP BLEEDER 40K OHM 5% 13W |
224 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 40 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|
|
TV1005CT-50R0JN-2Q-01TRDC-3GHZ 10W 50OHM ALN CHIP TERMI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TVC2010CT-50R0JN-2T-01TRDC-2GHZ 30W 50OHM ALN CHIP TERMI |
478 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
GW13J25K0ERES CAP BLEEDER 25K OHM 5% 13W |
128 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 25 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|
|
TV1206CT-50R0GN-96-04TRDC-4GHZ 20W 50OHM BEO CHIP TERMI |
514 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TVC2335CT-50R0JN-2T-10TRDC-3GHZ 150W 50OHM ALN CHIP TERM |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TVC2010CT-50R0JN-99-01TRDC-2GHZ 60W 50OHM BEO CHIP TERMI |
473 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
