Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSBS8536L0250JK1425 UOHMS 5% 50W SHUNT, BATTERY S |
462 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
WSBS8518L1250JT20RESISTOR SHUNT 125 UOHM 5% 36W |
115 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0500JK2050 UOHMS 5% 50W SHUNT, BATTERY S |
110 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
WSBS8518L1000JK80RESISTOR SHUNT 100 UOHM 5% 36W |
233 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JK80RESISTOR SHUNT 50 UOHM 5% 36W |
125 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JK80RESISTOR SHUNT 125 UOHM 5% 36W |
129 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JT80WSBS8518-80.000050 5% TRAY PACK |
120 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
KABR1000 1K JMETAL CLAD BRAKING RESISTOR 1000 |
174 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 1 kOhms | - | ±5% | 1000W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|

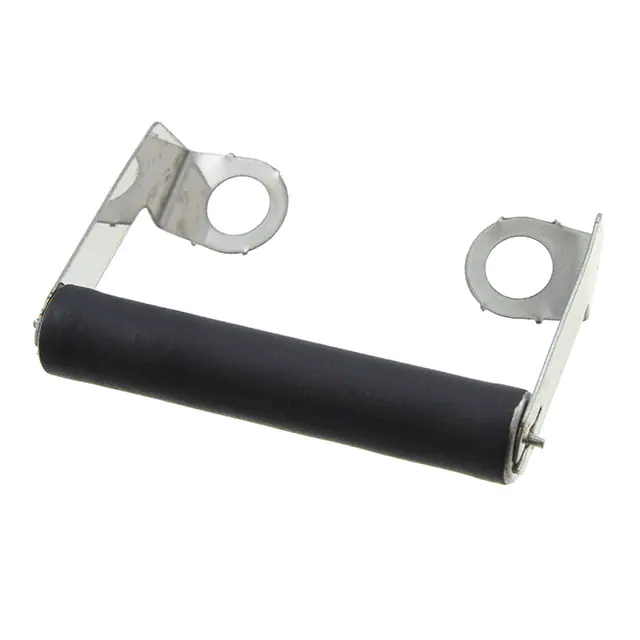

PYR7511-47RES CAP BLEEDER 47K OHM 5% 13W |
152 |
|
Datasheet |
PYR | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 47 kOhms | - | ±5% | 13W | - | -55°C ~ 105°C | Capacitor, 32mm Pitch |
|
WSBS5216L1000KT14RESISTOR SHUNT 100 UOHM 10% 12W |
243 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000JT14RESISTOR SHUNT 100 UOHM 5% 12W |
292 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JKP3RESISTOR SHUNT 50 UOHM 5% 36W |
165 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JTP4RESISTOR SHUNT 250 UOHM 5% 36W |
163 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

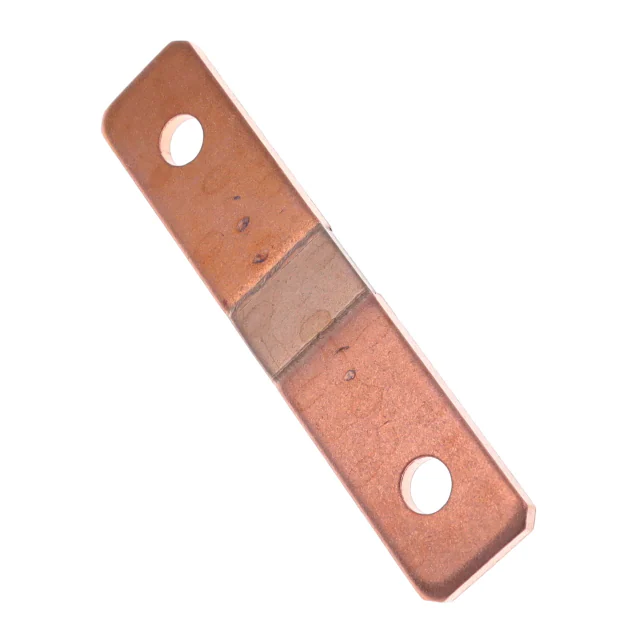

WSBS8518L1250JT40RESISTOR SHUNT 125 UOHM 5% 36W |
120 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JTRESISTOR SHUNT 250 UOHM 5% 36W |
165 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1000JT14RESISTOR SHUNT 100 UOHM 5% 36W |
168 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JT14RESISTOR SHUNT 125 UOHM 5% 36W |
168 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JT14RESISTOR SHUNT 50 UOHM 5% 36W |
163 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JT60RESISTOR SHUNT 125 UOHM 5% 36W |
120 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JT60RESISTOR SHUNT 250 UOHM 5% 36W |
120 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
