Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSM2F-7036-L025J21RES SHUNT 7036 25 UOHM 36W 2P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L050J20RES SHUNT 7036 50 UOHM 36W 2P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±50ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
BAC-M-R0001-T01-5.0RESISTOR - BUS BAR SHUNT WITH PC |
0 |
|
Datasheet |
BAC | Tray | Active | Shunt, Battery | - | - | 100 µOhms | - | ±5% | 10W | ±150ppm/°C | -10°C ~ 125°C | Shunt Fixture, 64mm Pitch |
|
CSM2F-6918-L100JT2SHUNTMETRIC 6918 L100 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-6918 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
BAS-M-R0001-E-5.0-Q1RESISTOR - BUS BAR SHUNT, 0.0001 |
0 |
|
Datasheet |
BAS | Tube | Active | Shunt, Battery | - | - | 100 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
CSM2F-8518-L100JT2SHUNTMETRIC 8518 L100 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±125ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
BAC-M-R0001-5.0RESISTOR - BUS BAR SHUNT WITH PC |
0 |
|
Datasheet |
BAC | Tray | Active | Shunt, Battery | - | - | 100 µOhms | - | ±5% | 10W | ±150ppm/°C | -10°C ~ 125°C | Shunt Fixture, 64mm Pitch |
|
|
CSM2F-7036-L050J30RES SHUNT 7036 50 UOHM 36W 3P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±50ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L025J31RES SHUNT 7036 25 UOHM 36W 3P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L050J22RES SHUNT 7036 50 UOHM 36W 2P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L050J31RES SHUNT 7036 50 UOHM 36W 3P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
CSM2F-6918-L200JT0SHUNTMETRIC 6918 L200 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-6918 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-6918-L200JT2SHUNTMETRIC 6918 L200 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-6918 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|

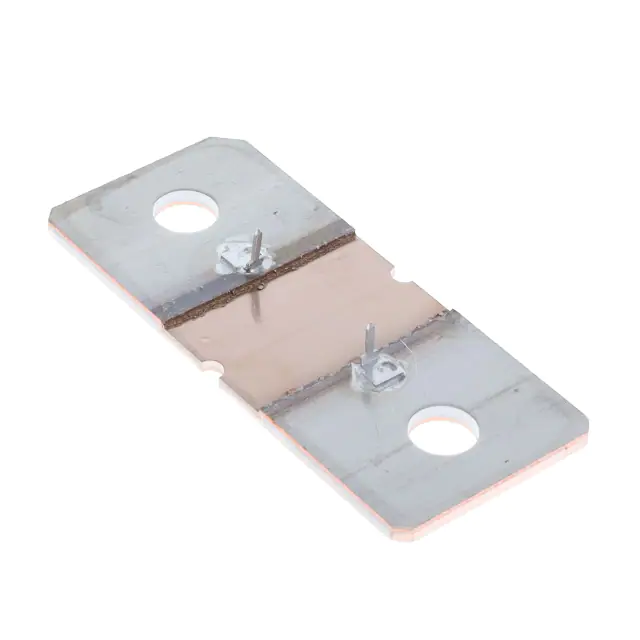

WSBS8536L1250JK60250 UOHMS 5% 50W SHUNT, BATTERY |
1 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
CSM2F-8518-L200JT0SHUNTMETRIC 8518 L200 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-8518-L200JT2SHUNTMETRIC 8518 L200 5% 50W TC5 |
0 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-7036-L100J20RES SHUNT 7036 100 UOHM 36W 2P |
0 |
|
Datasheet |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 50W | ±50ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
BAV-M-R0001-V02-5.0RESISTOR - BUS BAR SHUNT WITH 9. |
0 |
|
Datasheet |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
BAV-M-R0001-V03-5.0RESISTOR - BUS BAR SHUNT WITH 8. |
0 |
|
Datasheet |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBM8518L0500JKRESISTOR SHUNT 50 UOHM 5% 36W |
0 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
