Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7CC-A11SDCOUNTER, DIGITAL,1-STAGE/TOTAL/P |
0 |
|
Datasheet |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
H7CC-AWSDCOUNTER/TACHOMETER,DIGITAL,MULTI |
0 |
|
Datasheet |
H7CC | Box | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CC-A11DCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
0 |
|
Datasheet |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
H7CC-A11COUNTER,DIGITAL,1-STAGE/TOTAL/PR |
0 |
|
Datasheet |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
LGS00101COUNTER LCD 8 CHAR 115/230V PNL |
0 |
|
Datasheet |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 23kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
81485-02COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H7CX-A4WSD-N DC12-24COUNTER LCD 4 CHAR 12-24V PNL MT |
1 |
|
Datasheet |
H7CX | Bulk | Obsolete | Batch, Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
15443ICI IMPULSE DIN RAIL IMPULSE COU |
0 |
|
Datasheet |
- | Box | Active | Time Counter | - | - | - | 7 | - | - | Voltage | - | 230VAC | - | - | DIN Rail | Screw Terminal | - |
|
H7GP-CBCOUNTER LCD 6 CHAR 100-240V PNL |
1 |
|
Datasheet |
H7GP | Bulk | Obsolete | Totalizer | Up | 30Hz, 5kHz | - | 6 | LCD - Red Characters, Backlight | 0.334" (8.50mm) | No Voltage, Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7GP-CCOUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7GP | Bulk | Obsolete | Totalizer | Up | 30Hz, 5kHz | - | 6 | LCD - Red Characters, Backlight | 0.334" (8.50mm) | No Voltage, Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7GP-TCOUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7GP | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.334" (8.50mm) | No Voltage, Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7GP-TBCOUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7GP | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.334" (8.50mm) | No Voltage, Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

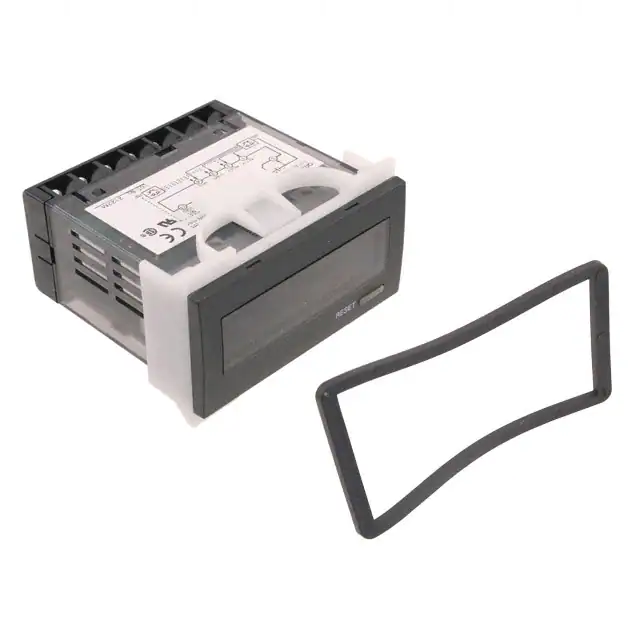

H7HP-ADBCOUNTER LCD 6 CHAR 12-24V PNL MT |
0 |
|
Datasheet |
H7HP | Bulk | Obsolete | Time Counter, Totalizer | Up, Down, Individual | 30Hz, 5kHz | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.590" (15.00mm) | No Voltage | - | 12 ~ 24VDC | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

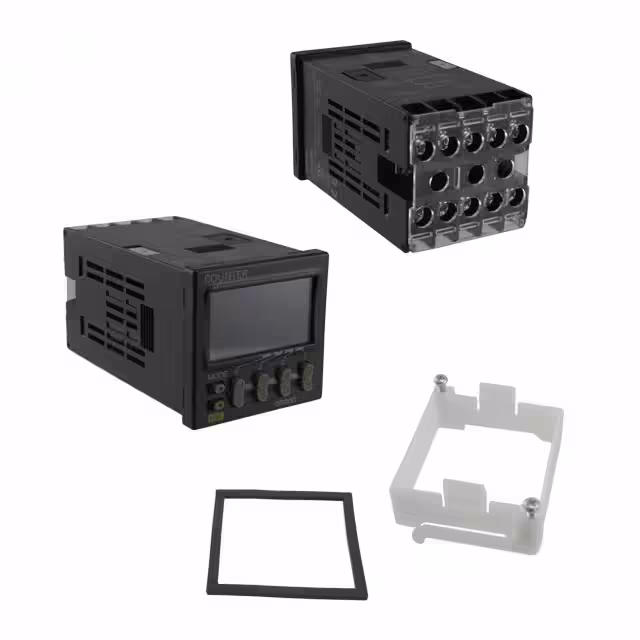

H7CX-A4-N AC100-240COUNTER LCD 4 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7CX | Box | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-A4S-N AC100-240COUNTER LCD 4 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7CX | Bulk | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-R11-N AC100-240TACHOMETER LCD 6 CHAR 100-240V |
0 |
|
Datasheet |
H7CX | Bulk | Obsolete | Tachometer | Up | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
C48CB100COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Datasheet |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (3) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7HP-ADCOUNTER LCD 6 CHAR 12-24V PNL MT |
0 |
|
Datasheet |
H7HP | Bulk | Obsolete | Time Counter, Totalizer | Up, Down, Individual | 30Hz, 5kHz | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.590" (15.00mm) | No Voltage | - | 12 ~ 24VDC | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CX-AS-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
1 |
|
Datasheet |
H7CX | Box | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

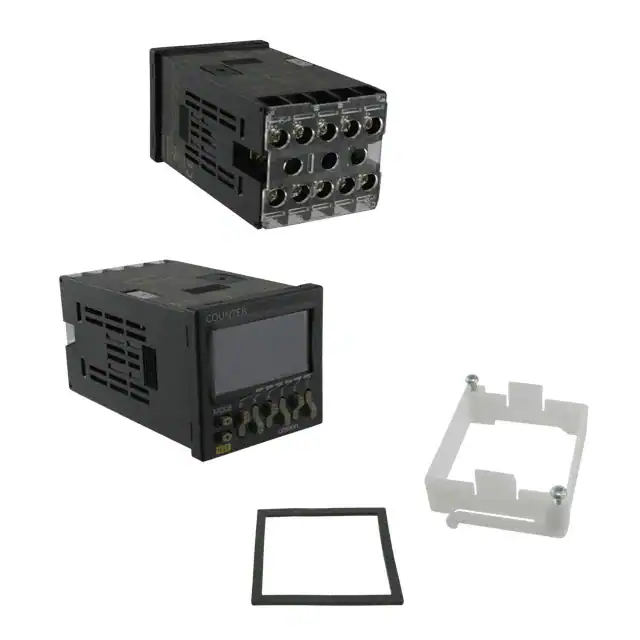

H7CX-A-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Datasheet |
H7CX | Box | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
