Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KC-LCDL-48-2R-230VACCOUNTERS |
0 |
|
Datasheet |
- | Box | Active | Tachometer | Up | 30Hz, 55kHz | 999999 | 6 | LCD - Black Characters | 0.354" (9.00mm) | Voltage | Relay | 90 ~ 260VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
H7GP-TDCOUNTER LCD 6 CHAR 12-24V PNL MT |
0 |
|
Datasheet |
H7GP | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.334" (8.50mm) | No Voltage | - | 12 ~ 24VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
86067-26COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C48CS114COUNTER LCD 6 CHAR 24V PANEL MT |
0 |
|
Datasheet |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
87621221COUNTER LCD 6 CHAR 10-30V PANEL |
0 |
|
Datasheet |
CTR48 | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down, Command, Individual, Quadrature | 40kHz | 999999hrs | 6, 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay (2), Solid State (2) | 10 ~ 30VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXTM010COUNTER LED 6 CHAR 85-250V PANEL |
0 |
|
Datasheet |
PAXTM | Box | Active | Time Counter (Hour Meter) | Up, Down | - | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
86017-26COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
87621225COUNTER LCD 6 CHAR 90-260V PANEL |
0 |
|
Datasheet |
CTR48 | Bulk | Active | Batch, Tachometer, Timer, Totalizer | Up, Down, Command, Individual, Quadrature | 40kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay (2), Solid State (2) | 90 ~ 260VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

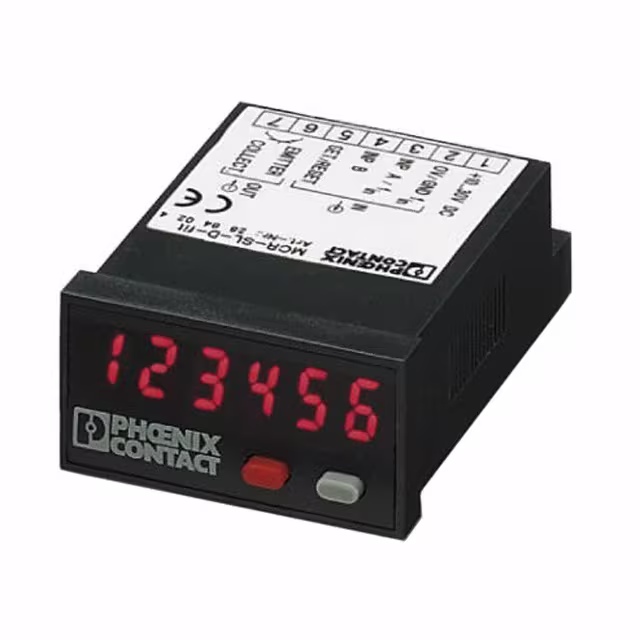

2864024TACHOMETER LED 6 CHAR 10-30V |
0 |
|
Datasheet |
MCR | Bulk | Active | Tachometer, Time Counter, Totalizer | Up, Down, Command, Individual, Quadrature | 20kHz | - | 6 | LED - Red Characters | 0.314" (8.00mm) | Voltage | Solid State | 10 ~ 30VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-R11DTACHOMETER, 11-PIN SOCKET, 1-STA |
0 |
|
Datasheet |
H7CC | Box | Active | Tachometer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
C48CB001COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Datasheet |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (3) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD100COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Datasheet |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
81486-20COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

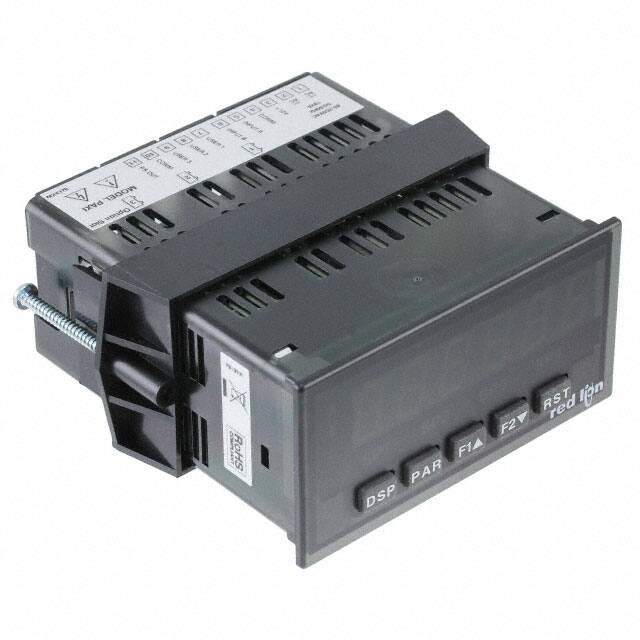

PAXI0120TACHOMETER LED 6 CHAR 85-250V |
0 |
|
Datasheet |
PAX | Bulk | Obsolete | Tachometer, Totalizer | Up, Down, Quadrature | 34kHz, 50Hz | - | 6 | LED - Green Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGS00000COUNTER LCD 8 CHAR 115/230V PNL |
0 |
|
Datasheet |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 23kHz | - | 8, 8 | LCD - Green Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
KC-LCDC-48-2R-230VACCOUNTERS |
0 |
|
Datasheet |
- | Box | Active | Tachometer | Up | 30Hz, 55kHz | 999999 | 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay | 90 ~ 260VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
KC-LCDC-48-2T-230VACCOUNTERS |
0 |
|
Datasheet |
- | Box | Active | Tachometer | Up | 30Hz, 55kHz | 999999 | 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay | 90 ~ 260VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
376B-200-Q50-LX376B SERIES DIGITAL COUNTER |
0 |
|
Datasheet |
376B | Box | Active | Time Counter | Down, Up | 10kHz | Multiple | 8 | LED - Blue Characters | 0.196" (5.00mm) | Voltage | Solid State | 120VAC | External | Square - 67.06mm x 67.06mm | DIN Rail | Screw Terminal | - |
|
H7CN-ALN DCCOUNTER LED 4 CHAR 12-48V PNL MT |
1 |
|
Datasheet |
H7CN | Bulk | Obsolete | Preset | Up, Down, Command | 30Hz | - | 4 | LED - Red Characters | 0.314" (8.00mm) | No Voltage | Relay | 12 ~ 48VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | - |
|
H7CC-A11SCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
0 |
|
Datasheet |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
