Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40S200P.12540S200P.125 MAGNET WIRE, ENAMELE |
82 |
|
Datasheet |
- | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyester | - | 4152.0' (1266m) | MW 35-C | 0.13 lbs (56.7 g) |
|
36HNSP.125#36 HVY MAG WIRE, 155C NAT 2OZ |
72 |
|
Datasheet |
- | Box | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 1548.0' (472m) | MW 79-C | 0.13 lbs (56.7 g) |
|
36SNSP.2536SNSP.25 36 AWG MAGNET WIRE, EN |
85 |
|
Datasheet |
- | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3193.0' (973m) | MW 79-C | 0.25 lbs (113.4 g) |
|
38SNSP.2538SNSP.25 38 AWG MAGNET WIRE, EN |
22 |
|
Datasheet |
- | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 4988.0' (1520m) | MW 79-C | 0.25 lbs (113.4 g) |
|
18HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
35 |
|
Datasheet |
- | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 49.0' (15m) | MW 80-C | 0.25 lbs (113.4 g) |
|
37HNSP.125#37 HVY MAG WIRE, 155C NAT 2OZ |
48 |
|
Datasheet |
- | Box | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 1911.0' (582m) | MW 79-C | 0.13 lbs (56.7 g) |
|

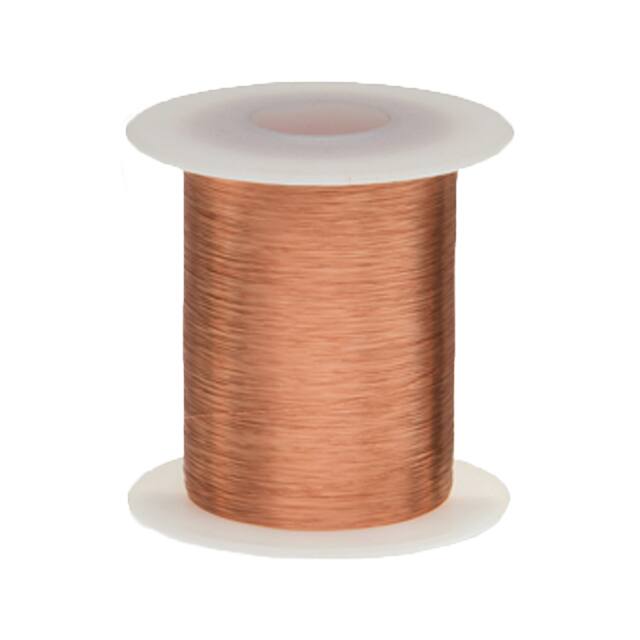

37SNSP.2537SNSP.25 37 AWG MAGNET WIRE, EN |
44 |
|
Datasheet |
- | Bag | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3950.0' (1204m) | MW 79-C | 0.25 lbs (113.4 g) |
|
|
38HNSP.125#38 HVY MAG WIRE, 155C NAT 2OZ |
35 |
|
Datasheet |
- | Box | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.005" (0.13mm) | 2420.0' (737.6m) | MW 79-C | 0.13 lbs (56.7 g) |
|

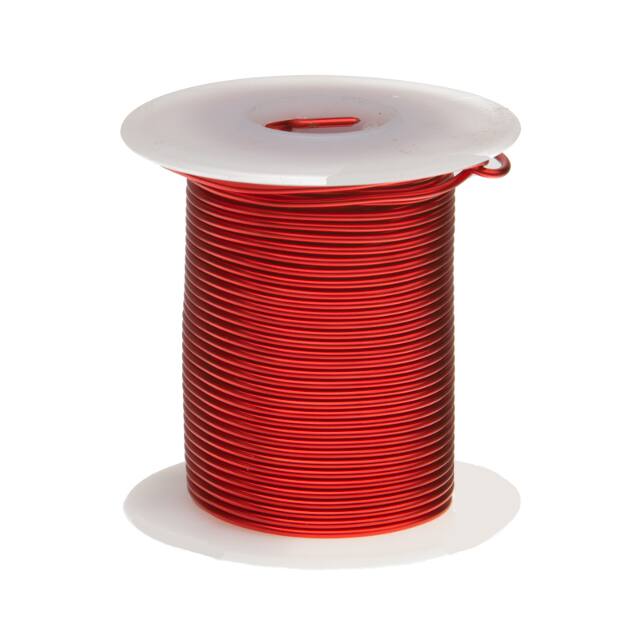

20HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
22 |
|
Datasheet |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 78.0' (24m) | MW 80-C | 0.25 lbs (113.4 g) |
|

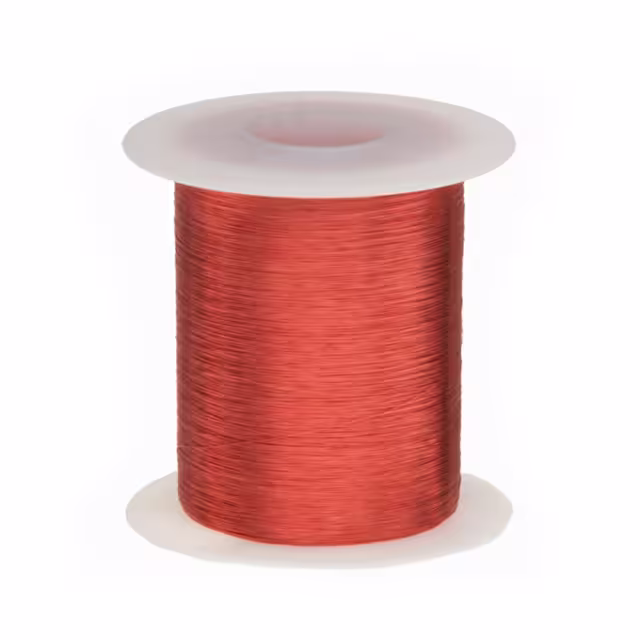

39HNSP.125#39 HVY MAG WIRE, 155C RED 2OZ |
41 |
|
Datasheet |
- | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 3159.0' (962.9m) | MW 79-C | 0.13 lbs (56.7 g) |
|

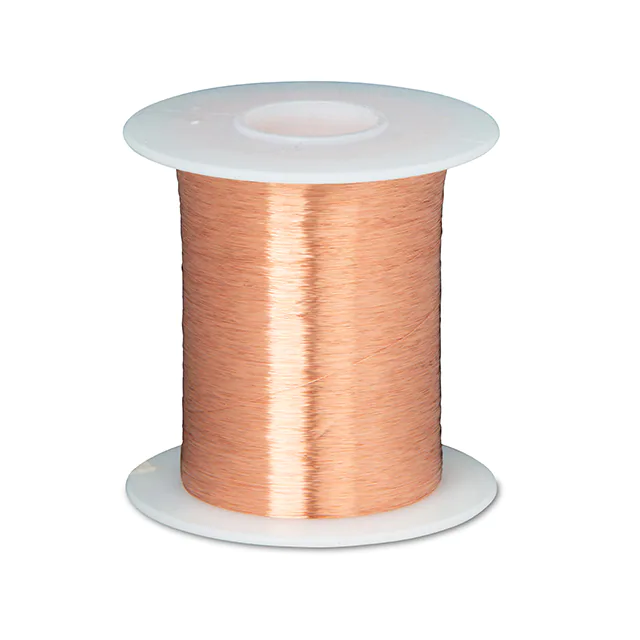

43SNSP.12543SNSP.125 MAGNET WIRE, ENAMELED |
41 |
|
Datasheet |
- | Bag | Active | 43 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 8262.0' (2518m) | MW 79-C | 0.13 lbs (56.7 g) |
|
43SNSPR.12543SNSPR.125 MAGNET WIRE, ENAMELE |
36 |
|
Datasheet |
- | Bag | Active | 43 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 8262.0' (2518m) | MW 79-C | 0.13 lbs (56.7 g) |
|

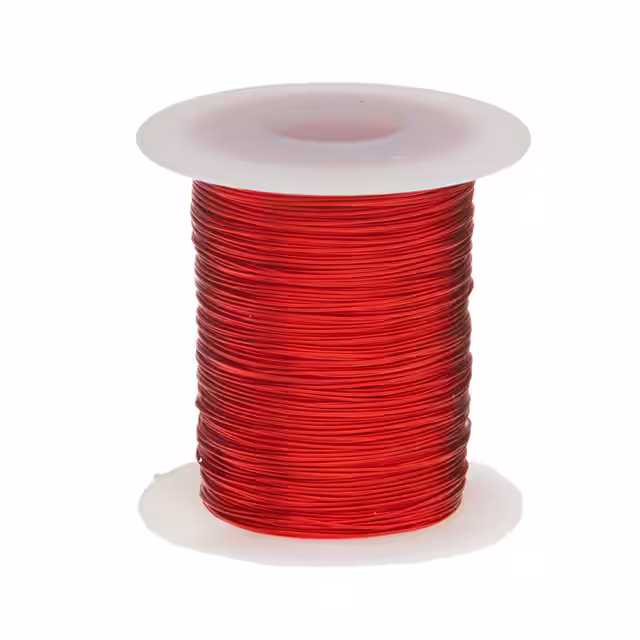

22HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
28 |
|
Datasheet |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 125.0' (38m) | MW 80-C | 0.25 lbs (113.4 g) |
|
|
40HNSP.125#40 HVY MAG WIRE, 155C RED 2OZ |
49 |
|
Datasheet |
- | Box | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 3993.0' (1217m) | MW 79-C | 0.13 lbs (56.7 g) |
|
|
41HNSP.125#41 HVY MAG WIRE, 155C RED 2OZ |
44 |
|
Datasheet |
- | Box | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 4918.0' (1499m) | MW 79-C | 0.13 lbs (56.7 g) |
|

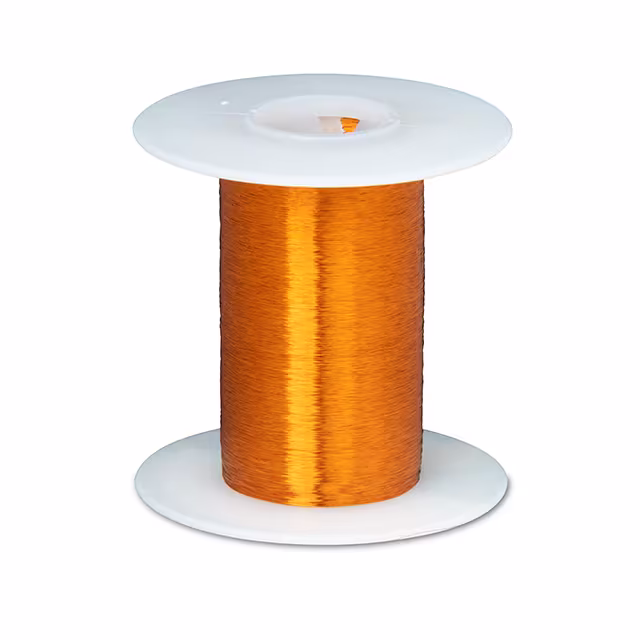

34S200P.2534S200P.25 MAGNET WIRE, ENAMELED |
27 |
|
Datasheet |
- | Bag | Active | 34 AWG | Copper, Annealed Bare | Polyester | - | 2022.0' (616m) | MW 35-C | 0.25 lbs (113.4 g) |
|
16SNSP.2516SNSP.25 MAGNET WIRE, ENAMELED |
34 |
|
Datasheet |
- | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 32.0' (9.8m) | MW 80-C | 0.25 lbs (113.4 g) |
|

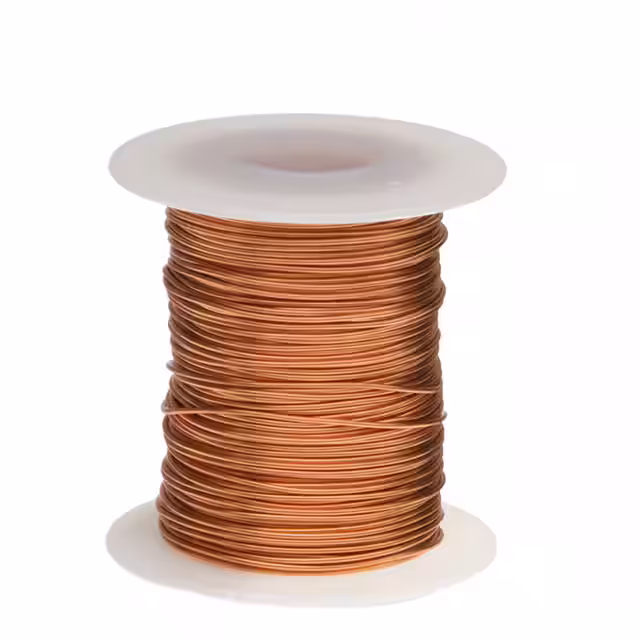

20H200P.520H200P.5 MAGNET WIRE, ENAMELED |
36 |
|
Datasheet |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 157.0' (48m) | MW 35-C | 0.5 lbs (226.8 g) |
|
36S200P.2536S200P.25 MAGNET WIRE, ENAMELED |
48 |
|
Datasheet |
- | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 3193.0' (973m) | MW 35-C | 0.25 lbs (113.4 g) |
|
39SNSP.2539SNSP.25 39 AWG MAGNET WIRE, EN |
46 |
|
Datasheet |
- | Bag | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 6515.0' (1986m) | MW 79-C | 0.25 lbs (113.4 g) |
