Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

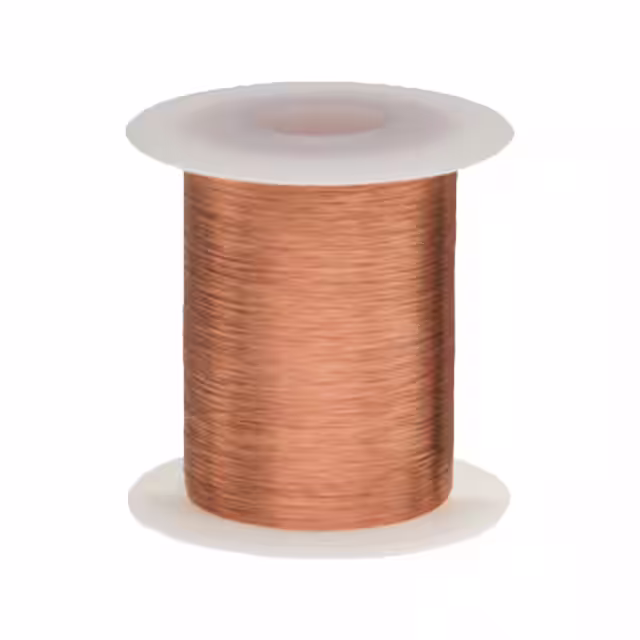

37SNSP.12537SNSP.125 MAGNET WIRE, ENAMELED |
90 |
|
Datasheet |
- | Bag | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1975.0' (602m) | MW 79-C | 0.13 lbs (56.7 g) |
|

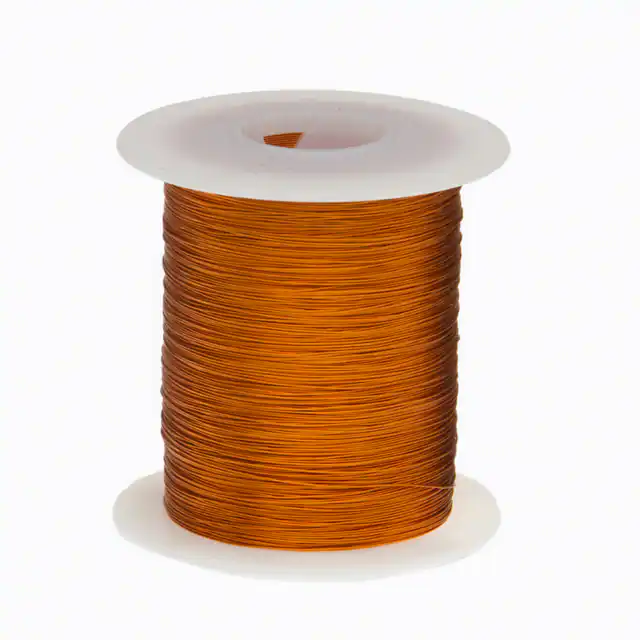

32H200P.2532H200P.25 32 AWG MAGNET WIRE, E |
29 |
|
Datasheet |
- | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyester | - | 1222.0' (372m) | MW 35-C | 0.25 lbs (113.4 g) |
|
17SNSP.12517SNSP.125 MAGNET WIRE, ENAMELED |
35 |
|
Datasheet |
- | Bag | Active | 17 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 20.0' (6.1m) | MW 80-C | 0.13 lbs (56.7 g) |
|
19SNSP.12519SNSP.125 MAGNET WIRE, ENAMELED |
45 |
|
Datasheet |
- | Bag | Active | 19 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 16.0' (4.9m) | MW 80-C | 0.13 lbs (56.7 g) |
|

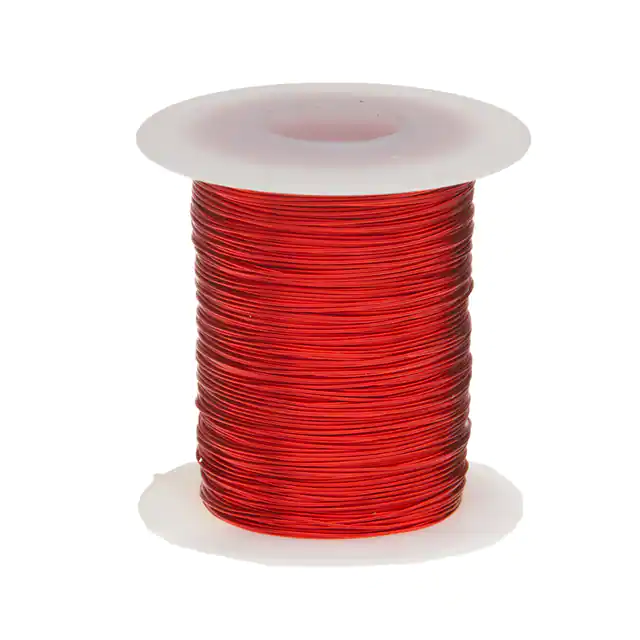

21SNSP.12521SNSP.125 MAGNET WIRE, ENAMELED |
86 |
|
Datasheet |
- | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 50.0' (15m) | MW 80-C | 0.13 lbs (56.7 g) |
|
23SNSP.12523SNSP.125 MAGNET WIRE, ENAMELED |
23 |
|
Datasheet |
- | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 79.0' (24m) | MW 80-C | 0.13 lbs (56.7 g) |
|

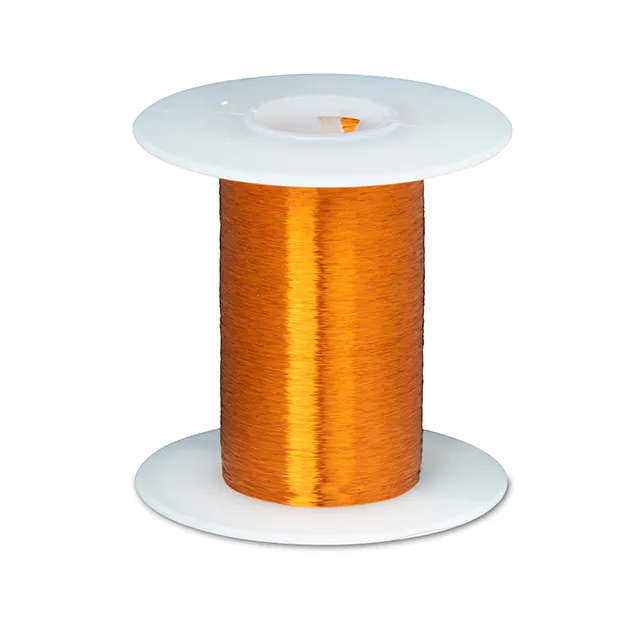

34S200P.12534S200P.125 MAGNET WIRE, ENAMELE |
76 |
|
Datasheet |
- | Bag | Active | 34 AWG | Copper, Annealed Bare | Polyester | - | 1011.0' (308m) | MW 35-C | 0.13 lbs (56.7 g) |
|
25SNSP.2525SNSP.25 25 AWG MAGNET WIRE, EN |
31 |
|
Datasheet |
- | Bag | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 253.0' (77m) | MW 80-C | 0.25 lbs (113.4 g) |
|
24SNSP.2524SNSP.25 24 AWG MAGNET WIRE, EN |
82 |
|
Datasheet |
- | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 200.0' (61m) | MW 80-C | 0.25 lbs (113.4 g) |
|
18SNSP.12518SNSP.125 MAGNET WIRE, ENAMELED |
31 |
|
Datasheet |
- | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 25.0' (7.6m) | MW 80-C | 0.13 lbs (56.7 g) |
|
16SNSP.12516SNSP.125 MAGNET WIRE, ENAMELED |
95 |
|
Datasheet |
- | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 16.0' (4.9m) | MW 80-C | 0.13 lbs (56.7 g) |
|
36SNSP.12536SNSP.125 MAGNET WIRE, ENAMELED |
20 |
|
Datasheet |
- | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1597.0' (487m) | MW 79-C | 0.13 lbs (56.7 g) |
|

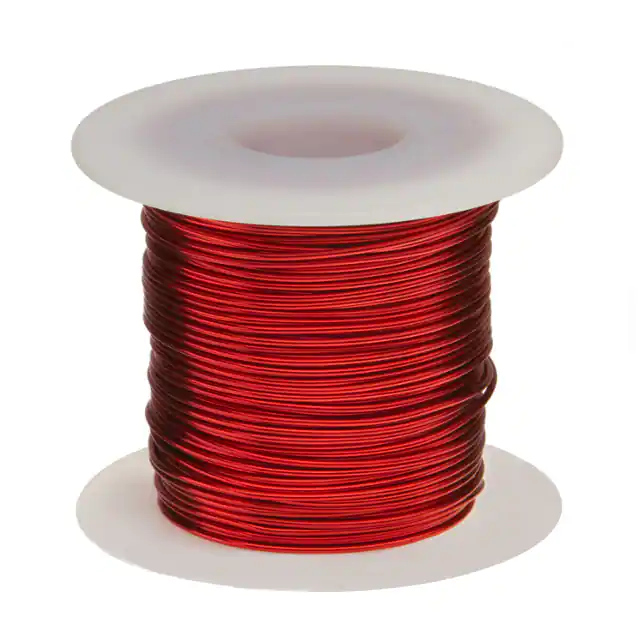

20SNSP.12520SNSP.125 MAGNET WIRE, ENAMELED |
89 |
|
Datasheet |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 40.0' (12m) | MW 80-C | 0.13 lbs (56.7 g) |
|
39SNSP.12539SNSP.125 MAGNET WIRE, ENAMELED |
25 |
|
Datasheet |
- | Bag | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3257.0' (993m) | MW 79-C | 0.13 lbs (56.7 g) |
|
22SNSP.12522SNSP.125 MAGNET WIRE, ENAMELED |
76 |
|
Datasheet |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 63.0' (19m) | MW 80-C | 0.13 lbs (56.7 g) |
|
14HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
50 |
|
Datasheet |
- | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 9.0' (2.7m) | MW 80-C | 0.13 lbs (56.7 g) |
|
38SNSP.12538SNSP.125 MAGNET WIRE, ENAMELED |
95 |
|
Datasheet |
- | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2494.0' (760m) | MW 79-C | 0.13 lbs (56.7 g) |
|

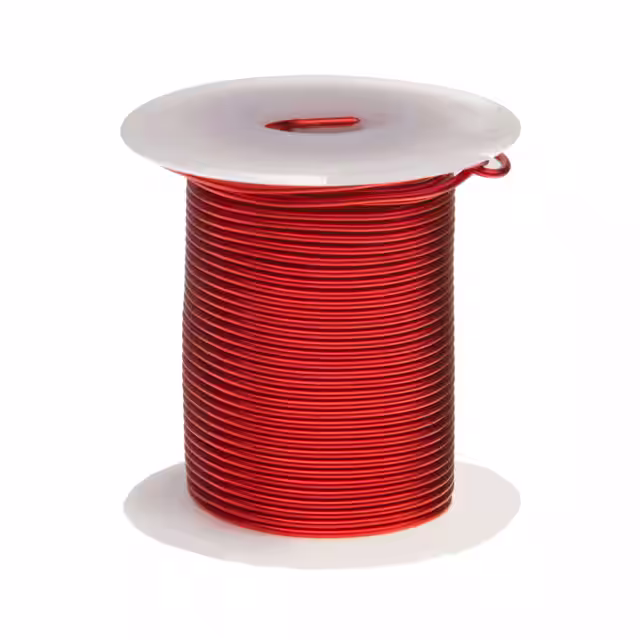

16HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
37 |
|
Datasheet |
- | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 15.0' (4.6m) | MW 80-C | 0.13 lbs (56.7 g) |
|
26SNSP.2526SNSP.25 26 AWG MAGNET WIRE, EN |
24 |
|
Datasheet |
- | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 320.0' (98m) | MW 80-C | 0.25 lbs (113.4 g) |
|
25HNSP.125#25 HVY MAG WIRE, 155C RED 2OZ |
46 |
|
Datasheet |
- | Box | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.020" (0.51mm) | 124.0' (37.8m) | MW 80-C | 0.13 lbs (56.7 g) |
