Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NK-2RM-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
0 |
|
Datasheet |
A22NK | Bulk | Obsolete | SPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
K2-118S1S1N1 01SWITCH KEYLOCK 4POS SP4T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP4T | 4 | Mom-Off-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | Left and Right | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K2-118S1S1N2 01SWITCH KEYLOCK 4POS SP4T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP4T | 4 | Mom-Off-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | Left and Right | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-200S1S1N2 01SWITCH KEYLOCK 3POS DP3T 8A 125V |
0 |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 8A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
CKM12BTW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12AFW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM12AFW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-200S1S4N1SWITCH KEYLOCK 3POS DP3T 8A 125V |
0 |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 8A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.18mm Dia | - | - |
|

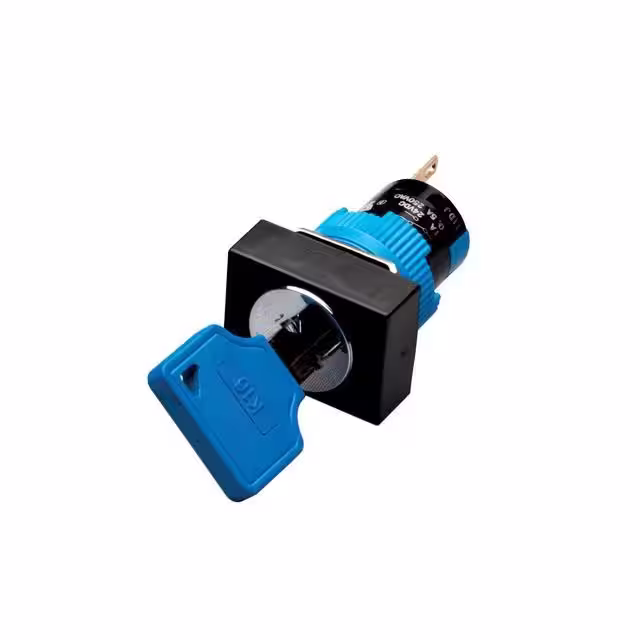

K16-631SWITCH KEYLOCK 2POS SPDT 3A 250V |
5 |
|
Datasheet |
K16 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC/DC) | 250 V | 110 V | Flat Key | All | 90° | Silver Alloy | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | - | -25°C ~ 55°C |
|
|
LK5FGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | DP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 2 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK5JGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 3 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
K1-201S1S1N1 01SWITCH KEYLOCK 3POS DP3T 8A 125V |
0 |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 8A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-102S1S1C1142SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 3 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
Y1011U2R803NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
CKL12BTW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12AFW01-022SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12AFW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12ATW01-019SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12ATW01-033SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-023SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
