Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3151U2A1SZRQSWITCH KEYLK 3POS 3P3T 2.5A 125V |
0 |
|
Datasheet |
A | Bulk | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 and 3 | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
K1-101S1S1C2SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-101S1S4N1SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.18mm Dia | - | - |
|
|
LK6QGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK69GB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
Datasheet |
LK | Bulk | Active | DP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
K1-102S1S1C1126SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 3 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-101S1S1C2126SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
JD7510HKEYLOCK SWITCH LK 19MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LK5HNB601N3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LK6BGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
Datasheet |
LK | Bulk | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK6FGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 2 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK6DGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
Y1011U2B203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
K1-101S1S1N1126SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
XA2EG43SWITCH KEYLOCK 2POS |
0 |
|
Datasheet |
Harmony XA2 | Box | Active | DPST-NO | 2 | Off-On | Not Specified | 3A (AC), 270mA (DC) | 240 V | 250 V | Flat Key | Left and Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | - | -20°C ~ 55°C |
|
PM0613EBM05KQ22SWITCH KEYLOCK 2POS SPST 4A 125V |
0 |
|
Datasheet |
PM | Tray | Obsolete | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Circular - 11.81mm Dia | - | - |
|
|
87504-02SWITCH KEYLOCK |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
95593SWITCH KEYLOCK 3POS 10A 12V |
0 |
|
- |
95 | Bulk | Active | - | 3 | On-Off-On | Not Specified | 10A (DC) | - | 12 V | Flat Key | - | - | - | - | Panel Mount | Screw Terminal | - | - | - |
|

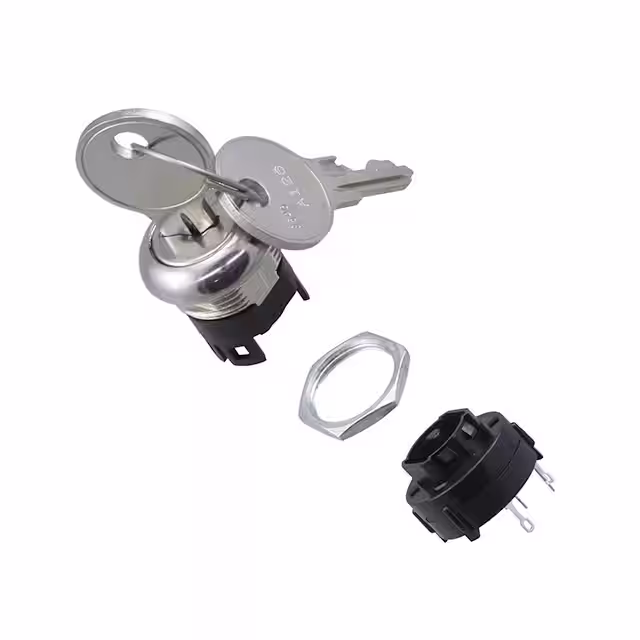

A115132Y2NZNQSWITCH KEYLK 3POS SP3T 2.5A 125V |
0 |
|
Datasheet |
A | Tray | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
Y100822C2WCNQSWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
