Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

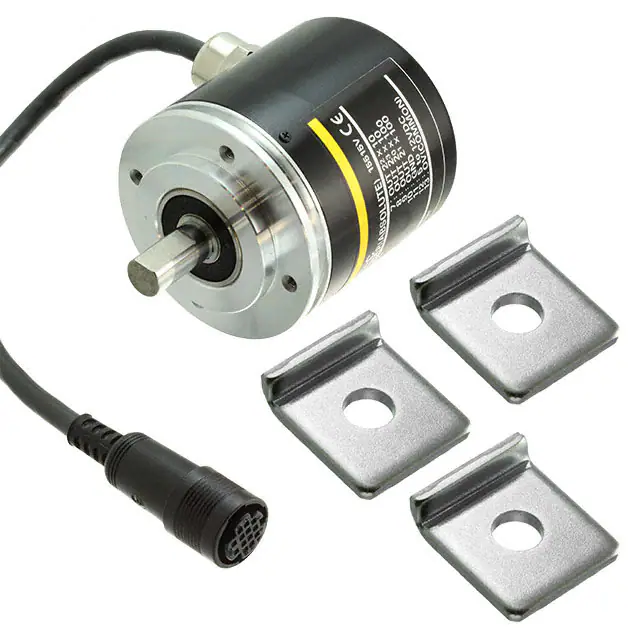

E6F-AB3C-C 360 2MROTARY ENCODER OPTICAL 360PPR 2M |
1 |
|
Datasheet |
E6F | Bulk | Active | Optical | BCD (Absolute) | 360 | 5V ~ 12V | 10mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable with Connector | - |
|
01142-001LINEAR CABLE TRANSDUCER INCREMEN |
0 |
|
Datasheet |
CD120 | Box | Active | Optical | Quadrature with Index (Incremental) | - | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
E6F-AG5C-C 720 2MROTARY ENCODER OPTICAL 720PPR |
1 |
|
Datasheet |
E6F | Bulk | Active | Optical | Gray Code (Absolute) | 720 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable with Connector | - |
|
01080-072ROTARY ENCODER OPTICAL 13PPR |
0 |
|
Datasheet |
HS35 | Bulk | Active | Optical | Gray Code (Absolute) | 13 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
AMT243A-VKIT, AMT243A, 12-BIT RS-485 ABSO |
0 |
|
Datasheet |
AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
AMT243B-VKIT, AMT243B, 14-BIT RS-485 ABSO |
0 |
|
Datasheet |
AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
AMT243C-VKIT, AMT243C, 12-BIT RS-485 ABSO |
0 |
|
Datasheet |
AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
AMT243D-VKIT, AMT243D, 14-BIT RS-485 ABSO |
0 |
|
Datasheet |
AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
ACW400-12BT-002ACW4 MOD 5-30V SSI NO PARITY GRA |
1 |
|
Datasheet |
ACW4 | Bulk | Active | Absolute | - | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|

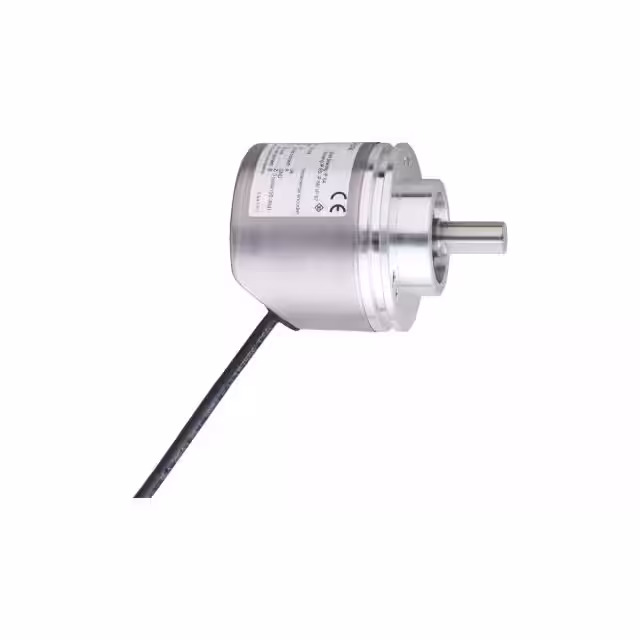

RV3500SOLID SHAFT ENCODER; SHAFT DIAME |
1 |
|
Datasheet |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Shaft | No | No | Panel Mount | User Selectable | Cable | - |
|
TCW400-1216-004TCW4 MOD MULTITURN 5-30V CANOPEN |
0 |
|
Datasheet |
TCW4 | Bulk | Active | Absolute | - | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|

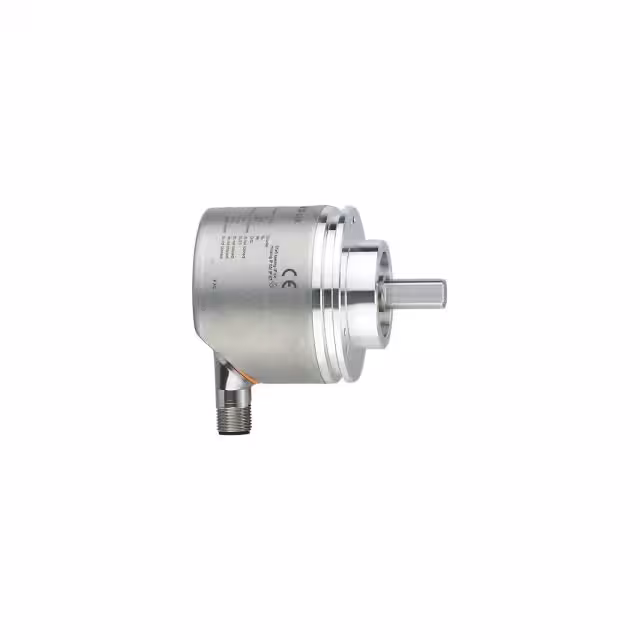

RVP510SOLID SHAFT ENCODER; SHAFT DIAME |
1 |
|
Datasheet |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
ZOH1000AROTARY ENCODER MECH 1000PPR |
1 |
|
Datasheet |
ZOH | Box | Active | Mechanical | Quadrature with Index (Incremental) | 1000 | 4.75V ~ 28V | 3/8" Open Center | No | - | Chassis Mount, Motors | - | Cable | - |
|
ZBG06002ROTARY ENCODER OPTICAL 600PPR |
1 |
|
Datasheet |
ZBG | Box | Active | Optical | Quadrature (Incremental) | 600 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Connector | - |
|
01039-3385ROTARY ENCODR INCREMENTAL 500PPR |
1 |
|
Datasheet |
H20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-1945ROTARY ENCODR INCREMENTAL 120PPR |
1 |
|
Datasheet |
XH20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 120 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01072-457ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
HS25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01039-2083ROTARY ENCODR INCREMENTAL 500PPR |
1 |
|
Datasheet |
H20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01072-271ROTARY ENCODER OPTICAL 360PPR |
1 |
|
Datasheet |
XHS25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 360 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | 7.5B |
|
|
01057-133ROTARY ENCODER OPTICAL 2048PPR |
1 |
|
Datasheet |
XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
