Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01070-192ROTARY ENCODER OPTICAL 1000PPR |
1 |
|
Datasheet |
HS35 | Box | Active | Optical | Quadrature (Incremental) | 1000 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
01005-1091ROTARY ENCODER OPTICAL 5000PPR |
1 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature (Incremental) | 5000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-7563ROTARY ENCODER OPTICAL 512PPR |
1 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 512 | 5V ~ 15V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-7954ROTARY ENCODER OPTICAL 1800PPR |
0 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1800 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-8366ROTARY ENCODER OPTICAL 2400PPR |
0 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2400 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-7481ROTARY ENCODER OPTICAL 2048PPR |
1 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 15V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-9233ROTARY ENCODER OPTICAL 3000PPR |
1 |
|
Datasheet |
XH25 | Box | Active | Optical | Quadrature with Index (Incremental) | 3000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|

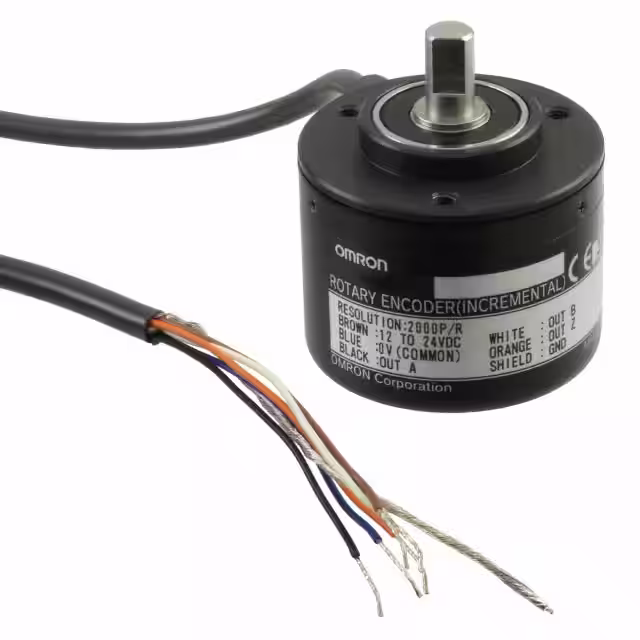

E6C3-CWZ5GH 2000P/R 2MROTARY ENCODER OPTICAL 2000PPR |
1 |
|
Datasheet |
E6C3 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2000 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable Leads | - |
|
|
01002-7680ROTARY ENCODER OPTICAL 2048PPR |
0 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature (Incremental) | 2048 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
E6F-AG5C 720 2MROTARY ENCODER OPTICAL 720PPR 2M |
1 |
|
Datasheet |
E6F | Bulk | Active | Optical | Gray Code (Absolute) | 720 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable Leads | - |
|
|
01002-9277ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
1070620ROTARY ENCODR INCREMENT 65536PPR |
1 |
|
Datasheet |
- | Bulk | Active | Incremental | - | 65536 | 4.75V ~ 30V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
|
01070-982ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
HS35 | Box | Active | Optical | Quadrature Line Driver with Index (Incremental) | 1024 | 5V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01002-6732ROTARY ENCODER OPTICAL 2500PPR |
1 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 2500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|

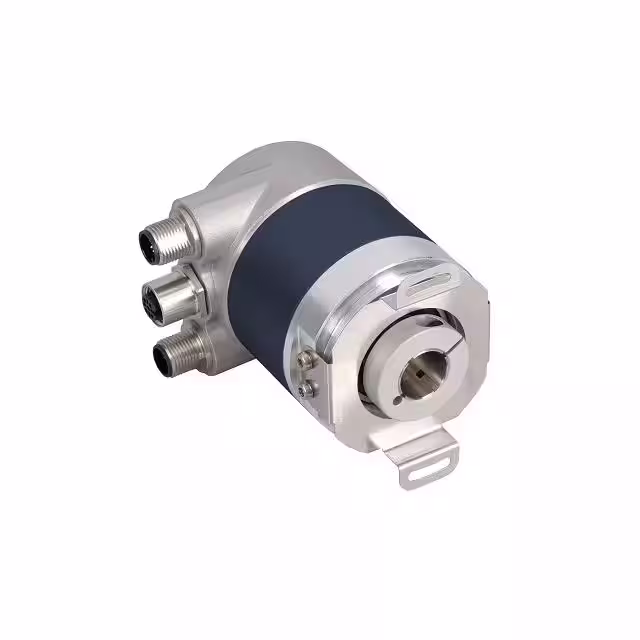

MHK5-EEA1B-1213-B150-PRMENCODER ROTARY PROFI 12MM 12BIT |
0 |
|
Datasheet |
MHK5 | Box | Active | Absolute | Binary (Absolute) | 4096 | 10V ~ 30V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | - |
|
|
E6C3-CWZ5GH 3600P/R 1MROTARY ENCODER OPT 3600PPR 1M |
1 |
|
Datasheet |
E6C3 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 3600 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable Leads | - |
|
|
01013-447ROTARY ENCODER OPTICAL 1500PPR |
1 |
|
Datasheet |
H25 | Bulk | Not For New Designs | Optical | Quadrature with Index (Incremental) | 1500 | 5V ~ 28V | Shaft | No | No | Servo Mount | - | Connector | 200M |
|
|
01070-1272ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
HS35 | Box | Active | Optical | Quadrature (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
01070-120ROTARY ENCODR INCREMENT 1024PPR |
1 |
|
Datasheet |
HS35 | Bulk | Active | Incremental | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Servo Mount | User Selectable | Connector | 7.5B |
|
|
01012-168ROTARY ENCODER ABSOLUTE |
1 |
|
Datasheet |
H25 | Bulk | Active | Absolute | Gray Code (Absolute) | - | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
