Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,22mm.jpg)
|

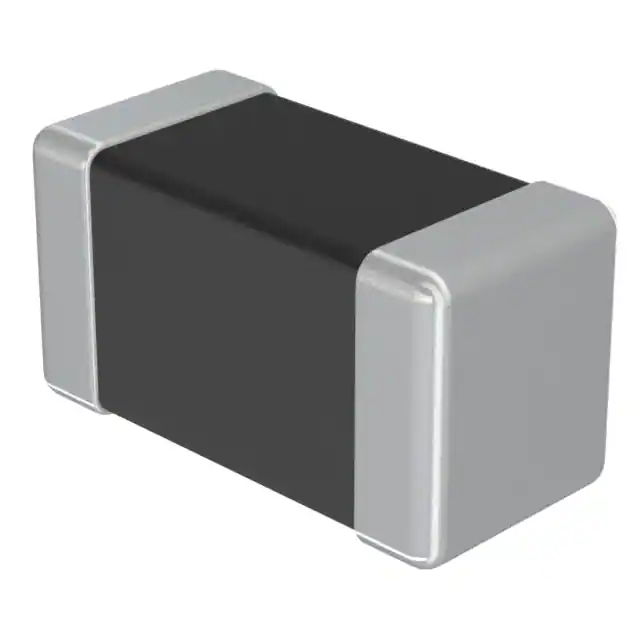

HKQ04020N5B-EFIXED IND 0.5NH 500MA 80MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.1nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HKQ04020N5C-EFIXED IND 0.5NH 500MA 80MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.2nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HKQ04020N5S-EFIXED IND 0.5NH 500MA 80MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.3nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
-0,33mm.jpg)
|

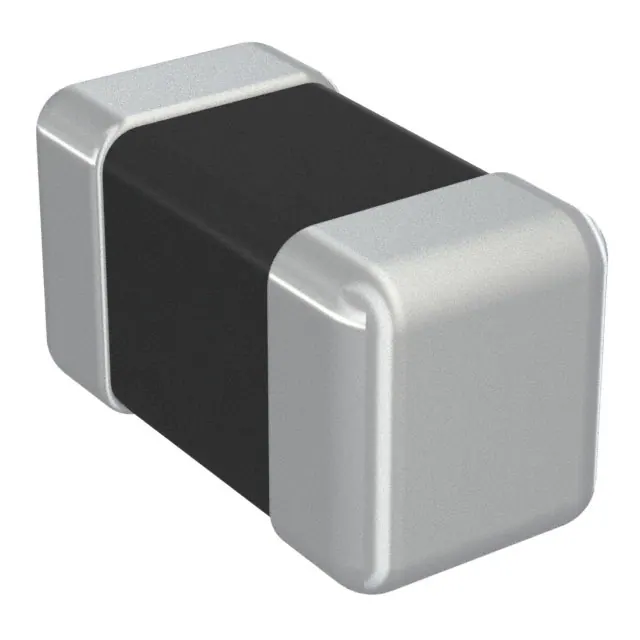

HK06031N2S-TVFIXED IND 1.2NH 450MA 120MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.2 nH | ±0.3nH | 450 mA | - | Unshielded | 120mOhm Max | 4 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
CAL45KB101KFIXED INDUCTOR TH Taiyo Yuden |
0 |
|
- |
- | - | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAL45TB101K-1KFIXED IND 100UH 590MA 1.2 OHM TH Taiyo Yuden |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 100 µH | ±10% | 590 mA | 590mA | Unshielded | 1.2Ohm Max | - | - | - | -25°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB103K-1KFIXED IND 10MH 45MA 155 OHM TH Taiyo Yuden |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 10 mH | ±10% | 45 mA | 65mA | Unshielded | 155Ohm Max | - | - | - | -25°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB123KFIXED INDUCTOR TH Taiyo Yuden |
0 |
|
- |
- | - | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAL45TB150K-1KFIXED IND 15UH 1.4A 190 MOHM TH Taiyo Yuden |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 15 µH | ±10% | 1.4 A | 1.4A | Unshielded | 190mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB560K-1KFIXED IND 56UH 710MA 750MOHM TH Taiyo Yuden |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 56 µH | ±10% | 710 mA | 790mA | Unshielded | 750mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
