Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,22mm.jpg)
|
HKQ040211NJ-EFIXED IND 11NH 140MA 1.23OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 11 nH | ±5% | 140 mA | - | Unshielded | 1.23Ohm Max | 12 @ 500MHz | 3.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040213NH-EFIXED IND 13NH 140MA 1.32OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 13 nH | ±3% | 140 mA | - | Unshielded | 1.32Ohm Max | 11 @ 500MHz | 3.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040213NJ-EFIXED IND 13NH 140MA 1.32OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 13 nH | ±5% | 140 mA | - | Unshielded | 1.32Ohm Max | 11 @ 500MHz | 3.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040224NH-EFIXED IND 24NH 120MA 2.23OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 24 nH | ±3% | 120 mA | - | Unshielded | 2.23Ohm Max | 12 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040224NJ-EFIXED IND 24NH 120MA 2.23OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 24 nH | ±5% | 120 mA | - | Unshielded | 2.23Ohm Max | 12 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040230NH-EFIXED IND 30NH 120MA 2.8 OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 30 nH | ±3% | 120 mA | - | Unshielded | 2.8Ohm Max | 11 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040230NJ-EFIXED IND 30NH 120MA 2.8 OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 30 nH | ±5% | 120 mA | - | Unshielded | 2.8Ohm Max | 11 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
.jpg)
|

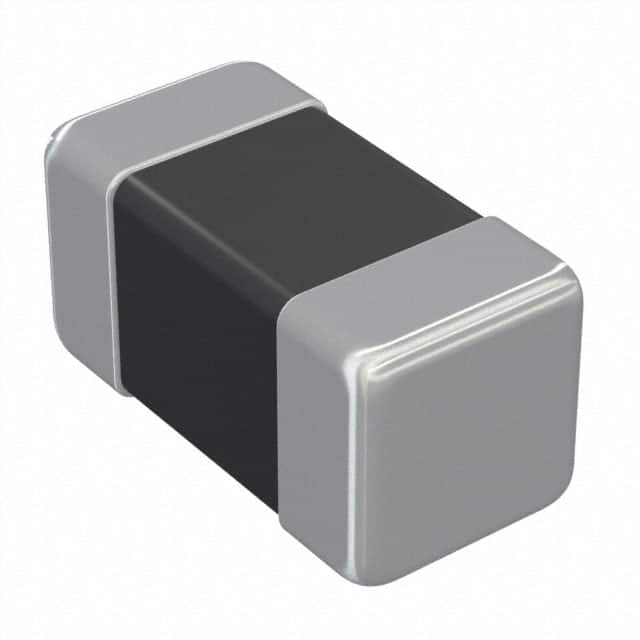

LK1005R47K-TVFIXED IND 470NH 20MA 420MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±10% | 20 mA | - | Shielded | 420mOhm | 20 @ 10MHz | 80MHz | AEC-Q200 | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK1005R82K-TVFIXED IND 820NH 20MA 590MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±10% | 20 mA | - | Shielded | 590mOhm | 20 @ 10MHz | 65MHz | AEC-Q200 | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK10051R0K-TVFIXED IND 1UH 20MA 640 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±10% | 20 mA | - | Shielded | 640mOhm | 20 @ 10MHz | 60MHz | AEC-Q200 | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
