Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg)
|
HK1608R47J-TVFIXED IND 470NH 110MA 2.6OHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±5% | 110 mA | - | Unshielded | 2.6Ohm Max | 8 @ 50MHz | 300MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

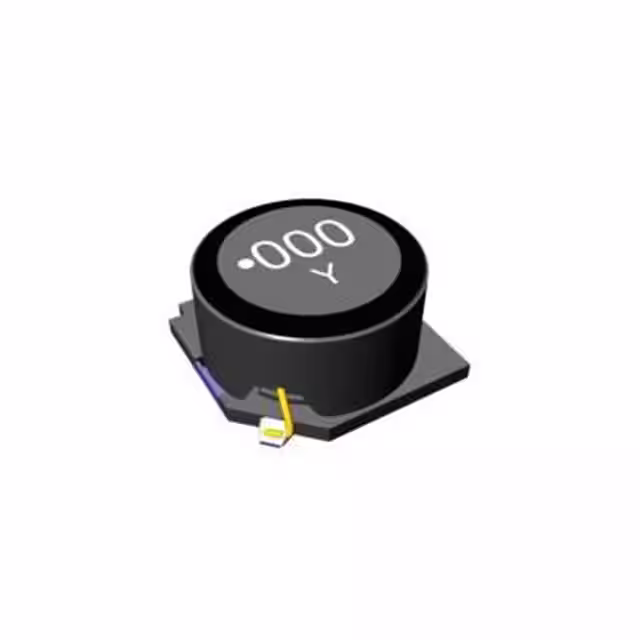

NS10145T1R0NNVFIXED IND 1UH 8.9A 5.88 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.9 A | 12.54A | Shielded | 5.88mOhm Max | - | 116MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T5R6NNVFIXED IND 5.6UH 4.45A 21.72 MOHM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 4.45 A | 5.85A | Shielded | 21.72mOhm Max | - | 26.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T100MNVFIXED IND 10UH 3.1A 32.4MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 4.22A | Shielded | 32.4mOhm Max | - | 21.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T150MNVFIXED IND 15UH 3A 45.72 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3 A | 3.44A | Shielded | 45.72mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T220MNVFIXED IND 22UH 2.3A 68.4MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 2.87A | Shielded | 68.4mOhm Max | - | 13.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T330MNVFIXED IND 33UH 1.9A 105.6MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | 2.36A | Shielded | 105.6mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T470MNVFIXED IND 47UH 1.5A 156 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2A | Shielded | 156mOhm Max | - | 9.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T101MNVFIXED IND 100UH 1.1A 276MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 1.4A | Shielded | 276mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T221MNVFIXED IND 220UH 780MA 612MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 780 mA | 910mA | Shielded | 612mOhm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
