Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HKQ0603W3N6B-TFIXED IND 3.6NH 500MA 200MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.6 nH | ±0.1nH | 500 mA | - | Unshielded | 200mOhm Max | 15 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

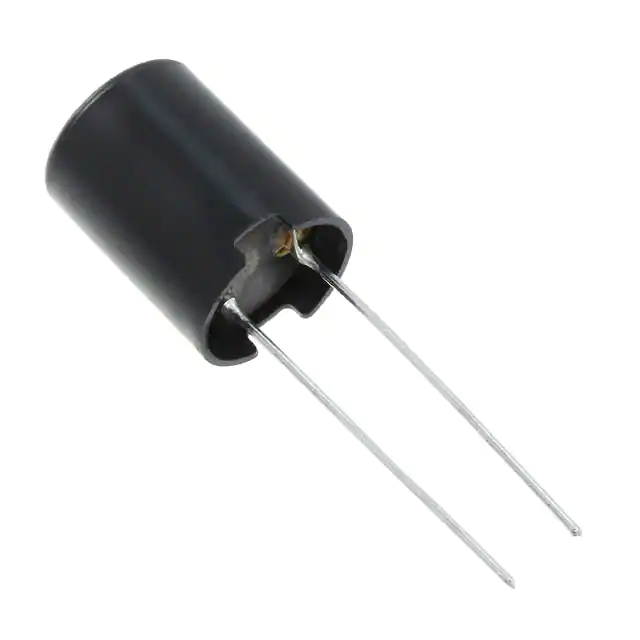

LHLC08TB1R0NFIXED IND 1UH 5.4A 13 MOHM TH Taiyo Yuden |
0 |
|
Datasheet |
LH, LC Type | Radial, Vertical Cylinder | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±30% | 5.4 A | - | Unshielded | 13mOhm Max | 40 @ 76MHz | 76MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
NR6028T221MFIXED IND 220UH SMD Taiyo Yuden |
0 |
|
- |
NR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | - | - | Shielded | - | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
.jpg)
|
HK10051N0S-TVFIXED IND 1NH 300MA 80 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 nH | ±0.3nH | 300 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10051N5S-TVFIXED IND 1.5NH 300MA 100MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10052N2S-TVFIXED IND 2.2NH 300MA 130MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10053N3S-TVFIXED IND 3.3NH 300MA 160MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10054N7S-TVFIXED IND 4.7NH 300MA 210MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK10056N8J-TVFIXED IND 6.8NH 300MA 250MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 6.8 nH | ±5% | 300 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.9GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK100510NJ-TVFIXED IND 10NH 300MA 310MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 10 nH | ±5% | 300 mA | - | Unshielded | 310mOhm Max | 8 @ 100MHz | 3.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
