Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CX2106NLXFMR RF 1:1:1 0.3 1500MHZ |
0 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - |
|
|
CX2099NLXFMR RF 1:1CT 1 1000MHZ |
0 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - |
|
|
CX2100NLXFMR RF 1.4:1CT 1 1000M |
0 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - |
|

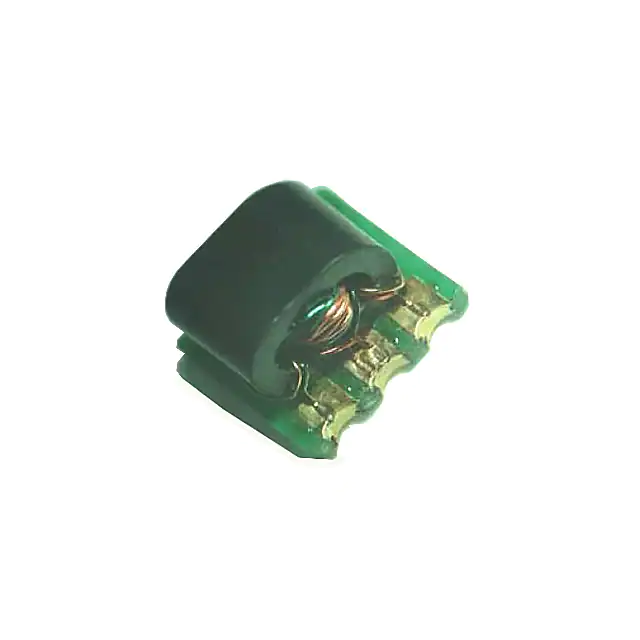

MABA-009573-CF1A40TRANSFORMER 1.7:1 FLUX COUPLED |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 100MHz | 1.77:1 | - | 0.5dB | 24dB | Surface Mount |
|
MABA-007748-CT1160BALUN 5MHZ-1.2GHZ 1:1 6SMD FLAT |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 1:1 | - | 3.0dB | - | Surface Mount |
|
MABA-011062TRANSFORMER 1:2 1-300MHZ SM22 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 300MHz | 75 / 75Ohm | - | 0.8dB | 20dB | Surface Mount |
|
MABA-009180-500MHZBALUN 1MHZ-500MHZ 1:1 6SMD FLAT |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 1MHz ~ 500MHz | 1:1 | 5° | 3.0dB | - | Surface Mount |
|
CX2038LNLTBALUN 4.5MHZ-1.5GHZ 75/75 5SMD |
0 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 4.5MHz ~ 1.5GHz | 75 / 75Ohm | - | 2.0dB | 14dB | Surface Mount |
|
|
3A525BALUN 1.5GHZ-1.9GHZ 50/50 3SMD |
0 |
|
Datasheet |
Xinger® | 3-SMD, No Lead | Tape & Reel (TR) | Obsolete | 1.5GHz ~ 1.9GHz | 50 / 50Ohm | 180° ±5° | 0.35dB | 15dB | Surface Mount |
|
|
CX2142NLTBALUN 50MHZ-870MHZ 75/75 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | 50MHz ~ 870MHz | 75 / 75Ohm | - | 1.0dB | 20dB | Surface Mount |
|
|
MABA-009274-TC11T2BALUN 1:1 6SMD FLAT LEAD |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | - | 1:1 | 5° | 1.2dB | - | Surface Mount |
|
|
3A625BALUN 2.3GHZ-2.7GHZ 50/50 3SMD |
0 |
|
Datasheet |
Xinger® | 3-SMD, No Lead | Tape & Reel (TR) | Active | 2.3GHz ~ 2.7GHz | 50 / 50Ohm | 180° ±5° | 0.35dB | 15dB | Surface Mount |
|

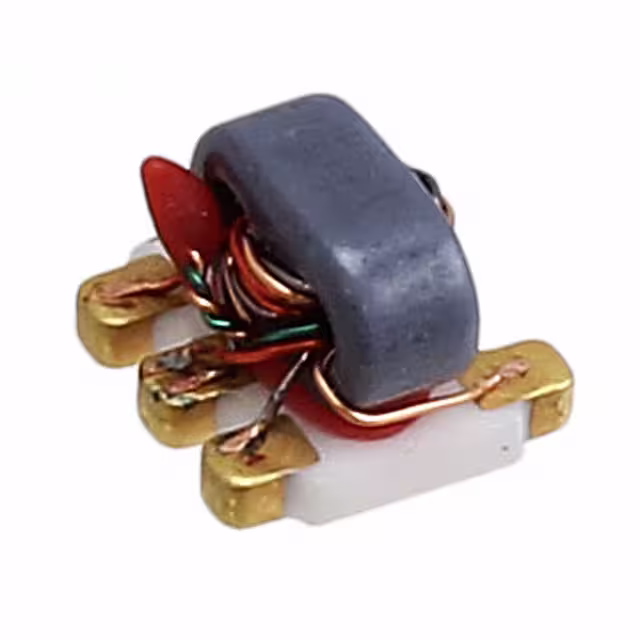

MABACT0062BALUN 3MHZ-200MHZ 1:1 6SMD FLAT |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 3MHz ~ 200MHz | 1:1 | - | 1.2dB | 10dB | Surface Mount |
|
|
TCM1-382WX+1:1 XFMR, 0.5 - 3800 MHZ, 50 |
0 |
|
- |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 500MHz ~ 3.8GHz | 1:1 | 6° | 3.0dB | 12dB | Surface Mount |
|
|
DD-14410BALUN EMBER TRANSFORMER (STRIP O |
0 |
|
- |
- | 0805 (2012 Metric), 6 PC Pad | Bulk | Active | 2.4GHz ~ 2.5GHz | 1:2, 50 / 100Ohm | 180° ±10 | 1.0dB | - | Surface Mount |
|
ADTL1-4-75+1:1 CORE & WIRE TRANSFORMER, 0.5 |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 500kHz ~ 1GHz | 75 / 75Ohm | 2° | 3dB | 11.48dB | Surface Mount |
|
|
ADTL1-15-75+1:1 CORE & WIRE TRANSFORMER, 10 |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 10MHz ~ 1.5GHz | 75 / 75Ohm | 3° | 2.0dB | 11.11dB | Surface Mount |
|
TX-2-5-1+1:2 CORE & WIRE TRANSFORMER, 20 |
0 |
|
Datasheet |
- | 6-SMD Module | Tape & Reel (TR) | Active | 20MHz ~ 1.25GHz | 1:2 | 8° | 2.5dB | 12.7dB | Surface Mount |
|
|
MABA-011057TRANSFORMER 1:1 |
0 |
|
- |
- | 6-SMD Module, No Lead | Tape & Reel (TR) | Obsolete | 200kHz ~ 100MHz | 1:1 | - | -0.1dB | -15dB | Surface Mount |
|
|
ADT3-1T+1:3 CORE & WIRE TRANSFORMER, 1 - |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 1MHz ~ 500MHz | 1:3 | 3.67° | 2.0dB | 12.96dB | Surface Mount |
