Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

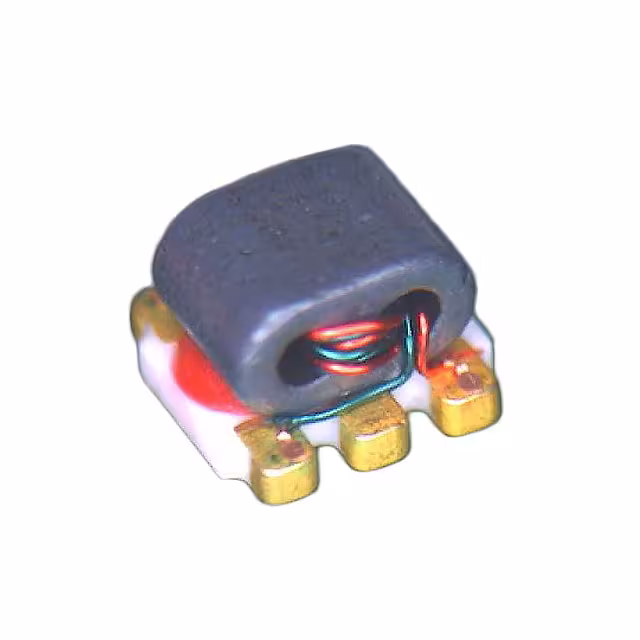

MABA-011030BALUN 46MHZ-1GHZ 75/75 MODULE |
0 |
|
- |
- | Module | Tape & Reel (TR) | Active | 46MHz ~ 1GHz | 75 / 75Ohm | 2.4° | 0.7dB | -42dB | Surface Mount |
|
MABA-011032BALUN 40MHZ-1GHZ 75/225 6SMD GW |
0 |
|
- |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 40MHz ~ 1GHz | 75 / 225Ohm | 22° | 3.2dB | -17dB | Surface Mount |
|
CX2024ANLXFMR RF 1:1 50 1000MHZ W C |
0 |
|
Datasheet |
- | 6-SMD Module | Tray | Active | 10MHz ~ 1GHz | 1:1 | 20° | 1.0dB | 16dB | Surface Mount |
|
TC16-1TG2+1:16 CORE & WIRE TRANSFORMER, 20 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 20MHz ~ 300MHz | 1:16 | 5° | 3dB | 4.34dB | Surface Mount |
|
|
TC16-161TG2+1:16 CORE & WIRE TRANSFORMER, 0. |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 600kHz ~ 160MHz | 1:16 | 0.5° | 3dB | 7.18dB | Surface Mount |
|
CX2072NLTBALUN 10MHZ-1GHZ 1:1 5SMD MODULE |
0 |
|
- |
- | 5-SMD Module | Tape & Reel (TR) | Obsolete | 10MHz ~ 1GHz | 1:1 | 6° | 1.0dB | 20dB | Surface Mount |
|
|

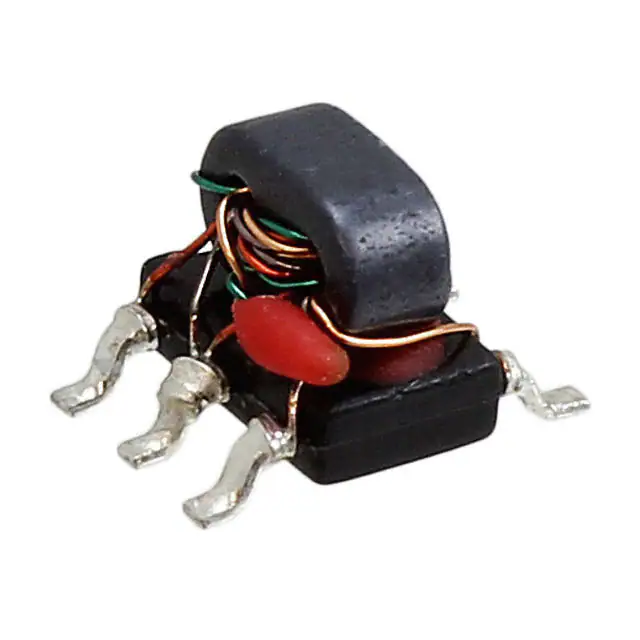

MABA-009594-CF18A01:1 TRANSFORMER FLUX COUPLED |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Cut Tape (CT) | Active | 5MHz ~ 200MHz | 1:1 | - | 1.0dB | - | Surface Mount |
|
|
TC1.5-1G2+1:1.5 CORE & WIRE TRANSFORMER, 0 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 500kHz ~ 2.2GHz | 1:1.5 | - | 3dB | 9.3dB | Surface Mount |
|
|
TC1.5-52TG2+1:1.5 CORE & WIRE TRANSFORMER, 0 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 500kHz ~ 550MHz | 1:1.5 | - | 3dB | 10.19dB | Surface Mount |
|
CX2039LNLBALUN 4.5MHZ-1.5GHZ 50/50 5SMD |
0 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 4.5MHz ~ 1.5GHz | 50 / 50Ohm | - | - | -30dB | Surface Mount |
|
TRS1-182-75+1:1 CORE & WIRE TRANSFORMER, 10 |
0 |
|
Datasheet |
- | 4-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 1.8GHz | 75 / 75Ohm | 7.5° | 2.0dB | 12.5dB | Surface Mount |
|
|
TCW1-133+1:1 LTCC SMT XFMR, 8-13 GHZ, 50 |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 8GHz ~ 13GHz | 1:1, 50 / 50Ohm | 13° | 2.5dB | - | Surface Mount |
|
TC4-13TX+1:4 CORE & WIRE TRANSFORMER, 100 |
0 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 100MHz ~ 1GHz | 1:4 | 9° | 1.4dB | 8.71dB | Surface Mount |
|
|
TC4-11G2+1:0.25 CORE & WIRE TRANSFORMER, |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 2MHz ~ 1.1GHz | 12.5:50 | - | 2.0dB | 18.37dB | Surface Mount |
|
|
TC1.33-282X+1:1.33 CORE & WIRE TRANSFORMER, |
0 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 5MHz ~ 2.8GHz | 1:1.33 | 6° | 3dB | 13.83dB | Surface Mount |
|
|
TC2-112G2+1:0.5 CORE & WIRE TRANSFORMER, 2 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 2MHz ~ 1.1GHz | 25:50 | - | 2.0dB | 13.17dB | Surface Mount |
|
|
MABA-011063TRANSFORMER 2:1 5-300MHZ SM22 |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 5MHz ~ 300MHz | 50 / 50Ohm | - | 0.8dB | - | Surface Mount |
|
|
MABA-011038BALUN 1MHZ-300MHZ 50/50 6SMD GW |
0 |
|
- |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 300MHz | 50 / 50Ohm | - | 0.8dB | 20dB | Surface Mount |
|
|
CX2163LNLTBALUN 800MHZ-1.9GHZ 1:1 5SMD MOD |
0 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 800MHz ~ 1.9GHz | 1:1 | - | 1.5dB | - | Surface Mount |
|
TRS1-23-75+1:1 CORE & WIRE TRANSFORMER, 10 |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 10MHz ~ 2.2GHz | 75 / 75Ohm | 5° | 3dB | 10.63dB | Surface Mount |
