Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
748425245BALUN 2.4GHZ-2.5GHZ 50/50 0805 |
3,817 |
|
Datasheet |
WE-BAL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° ±10° | 1.0dB | - | Surface Mount |
|

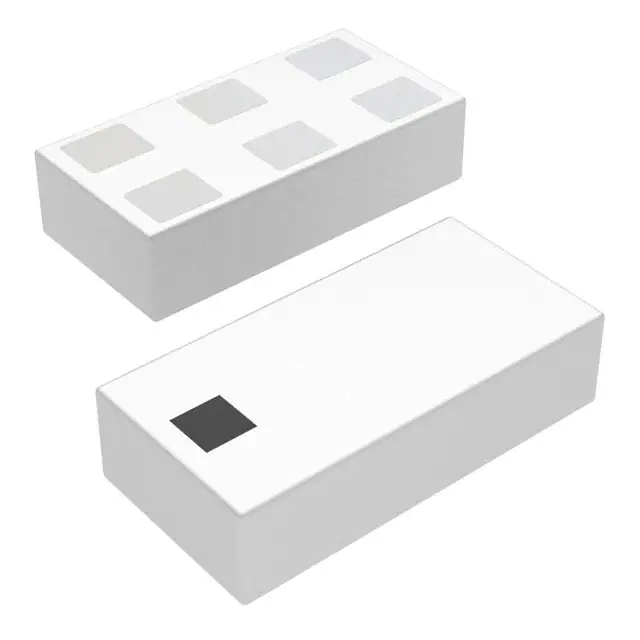

HHM17125D1BALUN 2.4GHZ-2.5GHZ 50/50 0603 |
2,961 |
|
Datasheet |
HHM | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° | 1.3dB | -10dB | Surface Mount |
|
HHM1763B2BALUN 880MHZ-960MHZ 50/150 0603 |
2,420 |
|
Datasheet |
HHM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 880MHz ~ 960MHz | 50 / 150Ohm | 180° ±10° | 1.4dB | 10dB | Surface Mount |
|
|
748421551BALUN 5.15-5.875GHZ 50/100 0805 |
3,650 |
|
Datasheet |
WE-BAL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 5.15GHz ~ 5.875GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | - | Surface Mount |
|
ATB3225-75034CTBALUN 1MHZ-100MHZ 3:4 1210 |
4,739 |
|
Datasheet |
ATB | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | 1MHz ~ 100MHz | 3:4 | 180° ±10° | 2.0dB | 5dB | Surface Mount |
|

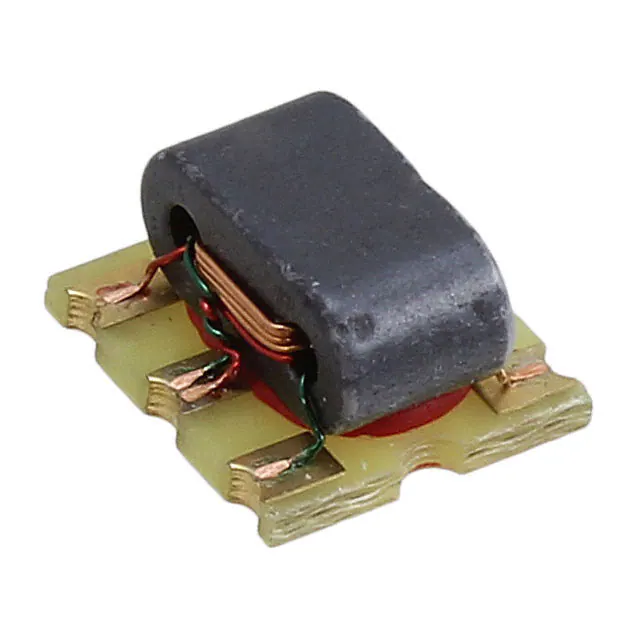

MABA-011002BALUN 5MHZ-200MHZ 4:1 6SMD |
553 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 5MHz ~ 200MHz | 4:1 | - | 3.6dB | - | Surface Mount |
|

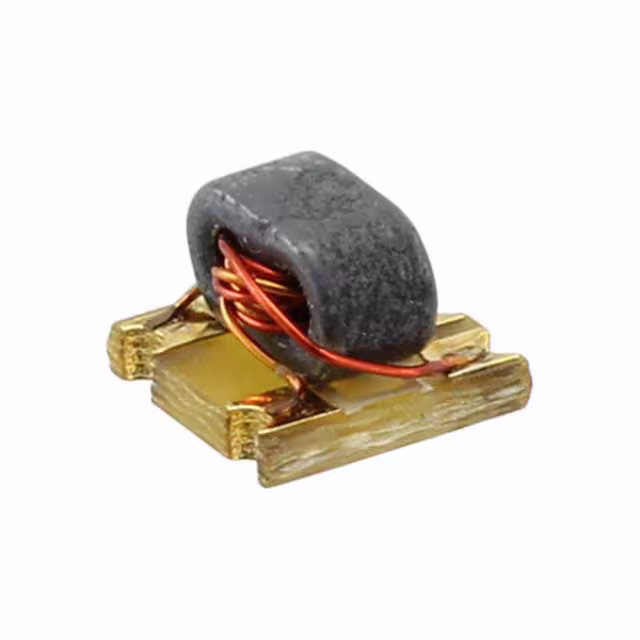

CX2044LNLBALUN 5MHZ-500MHZ 50/50 5SMD |
4,001 |
|
Datasheet |
- | 5-SMD | Tray | Active | 5MHz ~ 500MHz | 1.5:1 | - | 0.5dB | -15dB | Surface Mount |
|

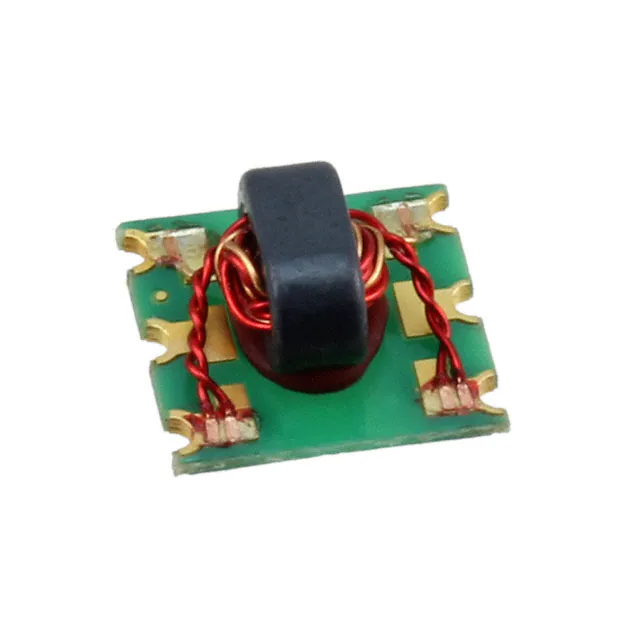

MABA-011031BALUN 5MHZ-1.2GHZ 75/75 MODULE |
3,719 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 75 / 75Ohm | 7° | 0.8dB | 23dB | Surface Mount |
|
CX2047LANLBALUN 500KHZ-300MHZ 1:4 5SMD MOD |
1,891 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 500KHz ~ 300MHz | 1:4 | - | 4.0dB | 14dB | Surface Mount |
|
MABA-011064TRANSFORMER 4:1 5-300MHZ SM22 |
1,379 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 5MHz ~ 300MHz | - | - | 1.5dB | - | Surface Mount |
|
MABA-011014BALUN 45MHZ-1.2GHZ 50/75 4SMD |
1,089 |
|
Datasheet |
- | 4-SMD Module | Tape & Reel (TR) | Active | 45MHz ~ 1.2GHz | 50 / 75Ohm | 4° | 0.9dB | 20dB | Surface Mount |
|
MABA-011015BALUN 45MHZ-1.2GHZ 50/75 5SMD |
182 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 45MHz ~ 1.2GHz | 50 / 75Ohm | 4° | 0.9dB | 20dB | Surface Mount |
|
CX2040LNLBALUN 1MHZ-500MHZ 75/75 5SMD MOD |
852 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 1MHz ~ 500MHz | 1:1 | - | 0.9dB | - | Surface Mount |
|
|

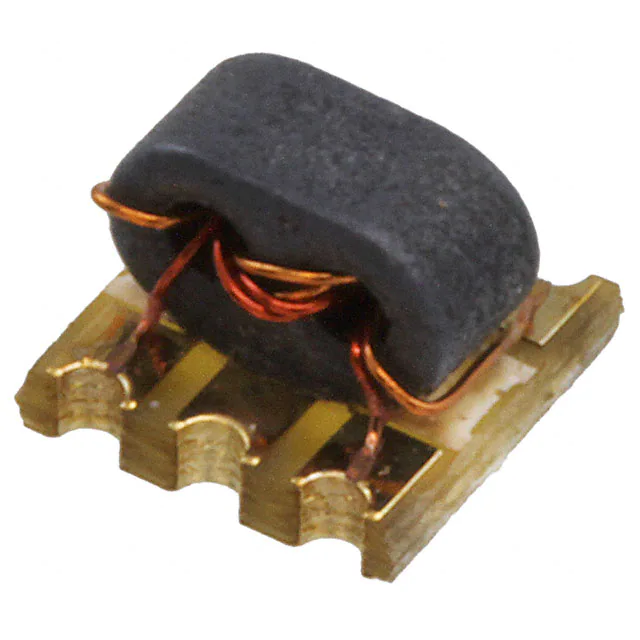

CX2040LNLTBALUN 1MHZ-500MHZ 75/75 5SMD MOD |
5,049 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 1MHz ~ 500MHz | 1:1 | - | 0.9dB | - | Surface Mount |
|
|
CX2047LNLTBALUN 500KHZ-300MHZ 50/50 5SMD |
2,079 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 500KHz ~ 300MHz | 1:4 | - | 4.0dB | - | Surface Mount |
|
|
CX2047LNLBALUN 500KHZ-300MHZ 50/50 5SMD |
591 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 500KHz ~ 300MHz | 1:4 | - | 4.0dB | -25dB | Surface Mount |
|
MABA-008483-CT17601:1 TRANSMISSION LINE TX. |
1,800 |
|
Datasheet |
- | 4-SMD Module, No Lead | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 1:1 | 3.2° | 1.33dB | 11dB | Surface Mount |
|
|
MABA-011039BALUN 1MHZ-300MHZ 75/75 6SMD GW |
1,684 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 300MHz | 75 / 75Ohm | - | 0.7dB | 21dB | Surface Mount |
|
|
MABA-010129-CT4A40BALUN 5MHZ-1.2GHZ 50/75 6SMD GW |
1,574 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 50 / 75Ohm | - | 1.2dB | 16dB | Surface Mount |
|
|
MABA-011050BALUN 5MHZ-300MHZ 75/75 5SMD MOD |
1,394 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 5MHz ~ 300MHz | 75 / 75Ohm | - | 0.8dB | 18dB | Surface Mount |
