Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X4B20L1-5050GIC 5G BALUN 0603 |
5,922 |
|
Datasheet |
Xinger® IV | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 1.2GHz ~ 2.7GHz | 1:1, 50 / 50Ohm | 180° ±10 | 1.2dB | 15dB | Surface Mount |
|
|
X4BD20L1-50200GIC 5G BALUN 0603 |
3,757 |
|
Datasheet |
Xinger® IV | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 1.2GHz ~ 2.7GHz | 1:4, 50 / 200Ohm | 9° | 1.2dB | 14dB | Surface Mount |
.jpg)
|
BD0922J75100AHFBALUN 900MHZ-2.2GHZ 75/100 0805 |
4,000 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 900MHz ~ 2.2GHz | 75 / 100Ohm | 4° | 1.3dB | 12dB | Surface Mount |
|
|
X4B10L1-5050GIC 5G BALUN 0603 |
11,473 |
|
Datasheet |
Xinger® | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 600MHz ~ 2.5GHz | 1:1, 50 / 50Ohm | - | - | - | Surface Mount |
|
|
X4B40L1-5050GIC 5G BALUN 0603 |
2,157 |
|
Datasheet |
Xinger® IV | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 6GHz | 1:1, 50 / 50Ohm | 180° ±10 | 1.2dB | 14dB | Surface Mount |
|
TCN4-162+1:4 LTCC TRANSFORMER, 720 - 1600 |
1,214 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 720MHz ~ 1.6GHz | 1:4 | 2° | 1.0dB | 10.28dB | Surface Mount |
|
NCS2-771+1:2 LTCC TRANSFORMER, 240 - 770 |
890 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 240MHz ~ 770MHz | 1:2 | 5° | 0.8dB | 10.5dB | Surface Mount |
|
ATB3225-75011CT-T001BALUN 5MHZ-200MHZ 1:1 1210 |
2,882 |
|
Datasheet |
ATB | 1210 (3225 Metric) | Tape & Reel (TR) | Active | 5MHz ~ 200MHz | 1:1 | 180° ±5° | 1.5dB | 10dB | Surface Mount |
|
TCW1-33+1:1 LTCC TRANSFORMER, 2300 - 300 |
619 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 3GHz | 50 / 50Ohm | 3° | 1.6dB | 13.93dB | Surface Mount |
|

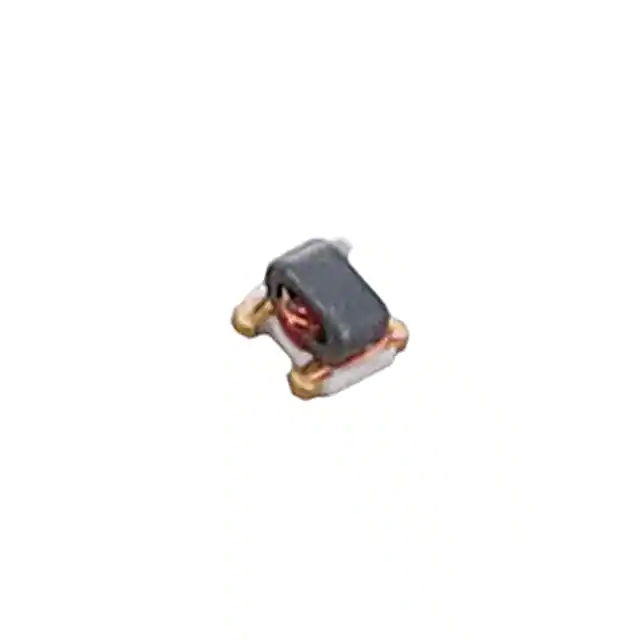

MABA-009488-61HWCAE-SERIES FLUX 1:4 TRANSFORMER 2- |
10,476 |
|
Datasheet |
E | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 3MHz ~ 800MHz | 1:4 | 3° | 3dB | 10dB | Surface Mount |
|
MABA-009572-CF18A0BALUN 5MHZ-200MHZ 75/75 6SMD GW |
1,950 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 5MHz ~ 200MHz | 75 / 75Ohm | - | 0.5dB | 19dB | Surface Mount |
|
|
MABA-0110562:1 BALUN TRANSFORMER |
2,154 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 5MHz ~ 300MHz | 2:1 | 1.2° | 2.2dB | 6dB | Surface Mount |
|
CX2047LANLTBALUN 500KHZ-300MHZ 1:4 6SMD MOD |
3,304 |
|
Datasheet |
- | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | 500KHz ~ 300MHz | 1:4 | - | 4.0dB | 14dB | Surface Mount |
|
CX2074NLBALUN 1MHZ-500MHZ 1:4 6SMD MODUL |
6,766 |
|
Datasheet |
- | 6-SMD Module | Tray | Active | 1MHz ~ 500MHz | 1:4 | - | 0.6dB | - | Surface Mount |
|

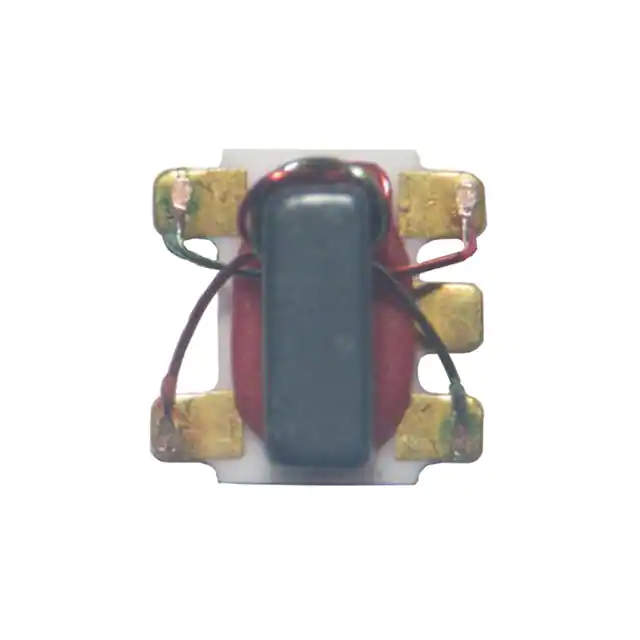

MABA-011094BALUN 5 - 1225 MHZ 1:1 |
5,277 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 5MHz ~ 1.225GHz | 1:1 | 4° | 1.4dB | 20dB | Surface Mount |
|

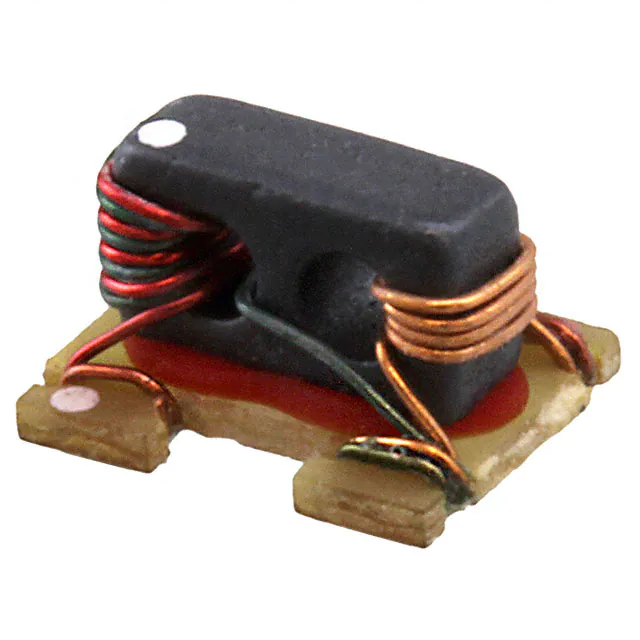

MABA-011013BALUN 45MHZ-1.2GHZ 50/75 4SMD |
458 |
|
Datasheet |
- | 4-SMD Module | Tape & Reel (TR) | Active | 45MHz ~ 1.2GHz | 50 / 75Ohm | 3° | 0.9dB | 20dB | Surface Mount |
|
TC1-1-13M-75+1:1 CORE & WIRE TRANSFORMER, 4.5 |
4,591 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 75 / 75Ohm | 3° | 3dB | 8.36dB | Surface Mount |
|
MABA-011085BALUN 5 - 1225 MHZ 1:1 |
13,229 |
|
Datasheet |
- | 4-SMD Module | Tape & Reel (TR) | Active | 5MHz ~ 1.225GHz | 1:1 | 2° | 1.0dB | 25dB | Surface Mount |
|

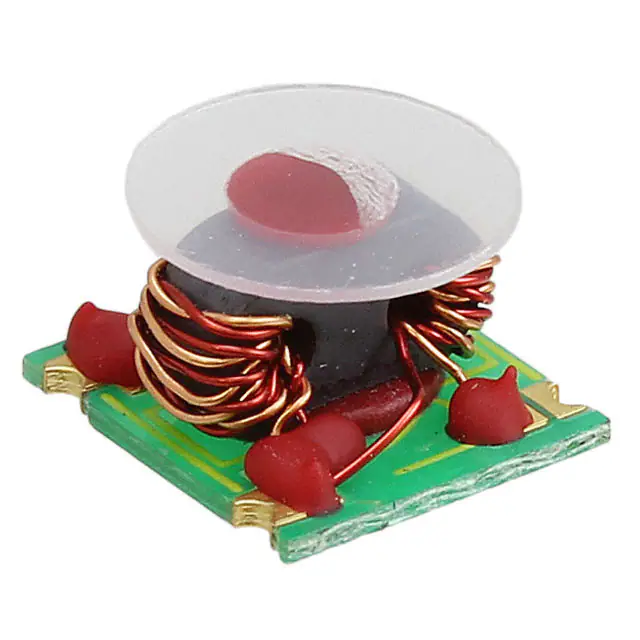

MABA-009210-CT1760BALUN 50MHZ-1.2GHZ 1:1 4SMD |
2,910 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 50MHz ~ 1.2GHz | 1:1 | - | 1.93dB | - | Surface Mount |
|
MABACT0071TRANSFORMER, 1:1 FLUX COUPLED, 3 |
10,298 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 3MHz ~ 200MHz | 1:1 | 0.3° | 0.9dB | 5dB | Surface Mount |
