Wire Wrap
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Diameter | Length | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Conductor Material | Conductor Plating | Jacket Color | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R30BLK-0100WIRE WW 30AWG PVDF BLACK 100' |
256 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Black | UL Style 1423, VW-1 | - |
|
R30B-0100WIRE WW 30AWG PVDF BLUE 100' |
251 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
R30R-0100WIRE WW 30AWG PVDF RED 100' |
161 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
R30G-0100WIRE WW 30AWG PVDF GREEN 100' |
120 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.020" (0.51mm) | Copper, Bare | Silver | Green | UL Style 1423, VW-1 | - |
|
R28BLK-0100WIRE WW 28AWG PVDF BLACK 100' |
121 |
|
Datasheet |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Black | UL Style 1422 | - |
|
R28B-0100WIRE WW 28AWG PVDF BLUE 100' |
109 |
|
Datasheet |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Blue | UL Style 1422 | - |
|
R26BLK-0100WIRE WW 26AWG PVDF BLACK 100' |
386 |
|
Datasheet |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Black | UL Style 1422 | - |
|
R30-510030 AWG WIRE DISPENSER WITH |
103 |
|
Datasheet |
- | Box | Active | 30 AWG | - | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.020" (0.51mm) | Copper, Bare | Silver | Multiple | - | With Dispenser |
|
|
R30BLK-1000WIRE WW 30AWG PVDF BLACK 1000' |
60 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Black | UL Style 1423, VW-1 | - |
|
R30W-1000WIRE WW 30AWG PVDF WHITE 1000' |
43 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|
|
R30G-1000WIRE WW 30AWG PVDF GREEN 1000' |
36 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.020" (0.51mm) | Copper, Bare | Silver | Green | UL Style 1423, VW-1 | - |
|
1446WIRE WRAP THIN PROTOTYPING & REP |
132 |
|
Datasheet |
- | Bulk | Active | 30 AWG | - | 656' (200.0m) | - | - | - | - | Blue | - | - |
|

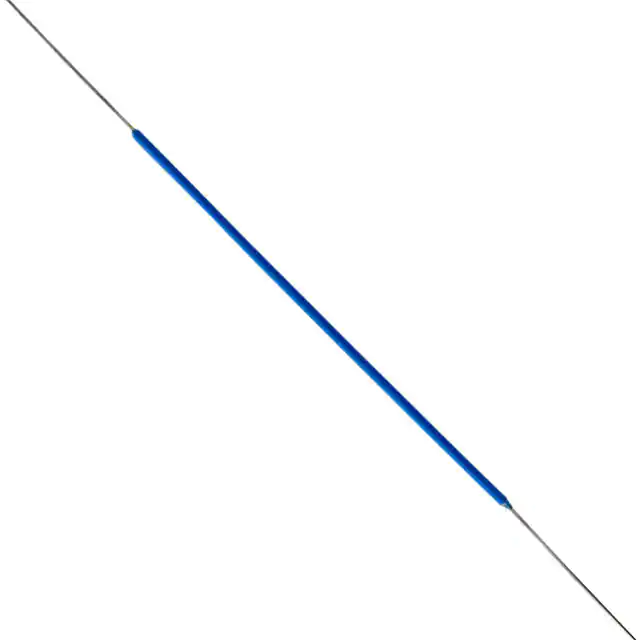

30-B-50-020WIRE WW 30AWG PVDF BLUE 4" 50PC |
266 |
|
Datasheet |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|

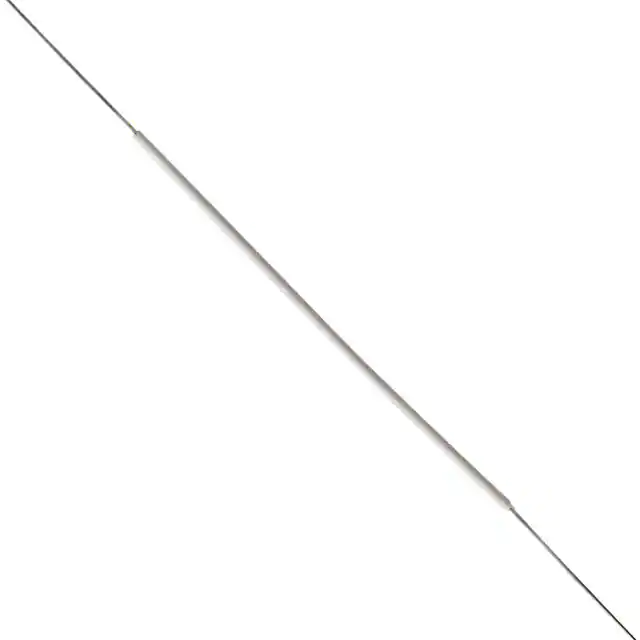

30-W-50-020WIRE WW 30AWG PVDF WHITE 4" 50PC |
156 |
|
Datasheet |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

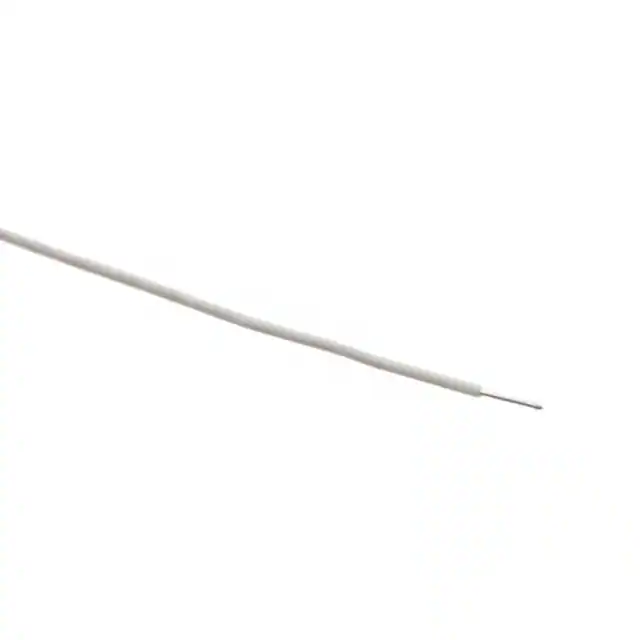

R30W-0100WIRE WW 30AWG PVDF WHITE 100' |
75 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

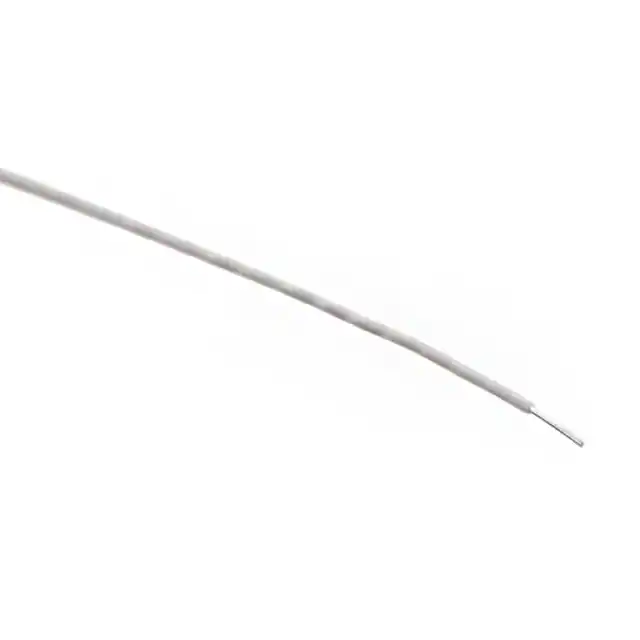

R28W-0100WIRE WW 28AWG PVDF WHITE 100' |
98 |
|
Datasheet |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|
R28Y-0100WIRE WW 28AWG PVDF YELLOW 100' |
70 |
|
Datasheet |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

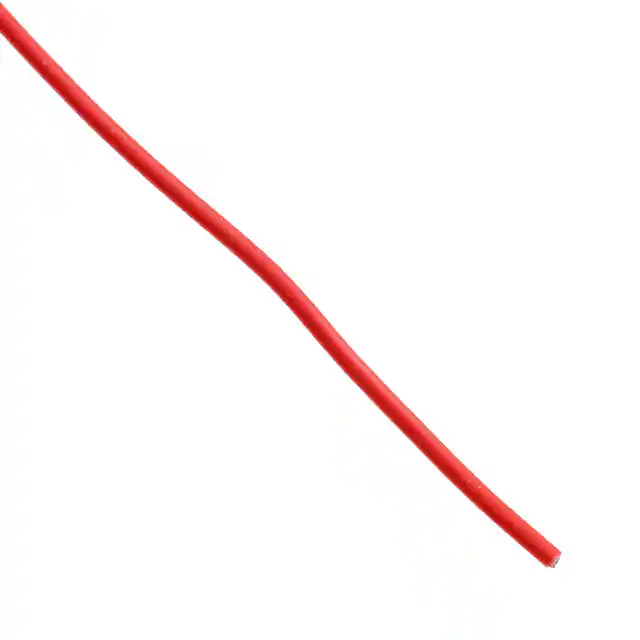

R26R-0100WIRE WW 26AWG PVDF RED 100' |
100 |
|
Datasheet |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|

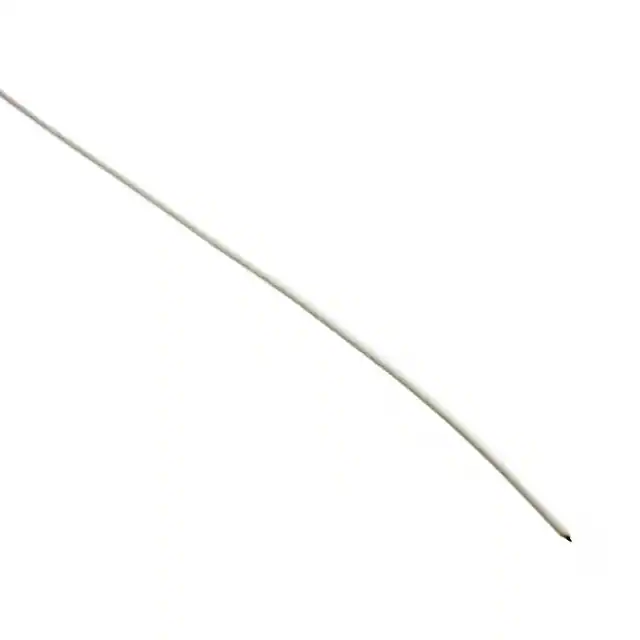

W28-6EUWIRE WW 28AWG ETFE WHITE 150' |
13 |
|
Datasheet |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | White | UL Style 1516/1523 | - |
|
|
R30B-1000WIRE WW 30AWG PVDF BLUE 1000' |
17 |
|
Datasheet |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
