Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S39/UCSWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S39/CSWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
M2032LL1W01-CSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
|
S31F/CULSWITCH TOGGLE 3PST 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
3-6437630-8SWITCH TOGGLE SPDT 0.4VA 20V |
400 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
M2013WBW01SWITCH TOGGLE SPDT 6A 125V |
1,353 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 85°C |
|
|
M2042SS1W03-BCSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
|
M2042SS1W03-BGSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|
|
M2042SS1W03-CFSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Green Cap | -30°C ~ 85°C |
|
|
M2028B2B1W03-AT401SSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

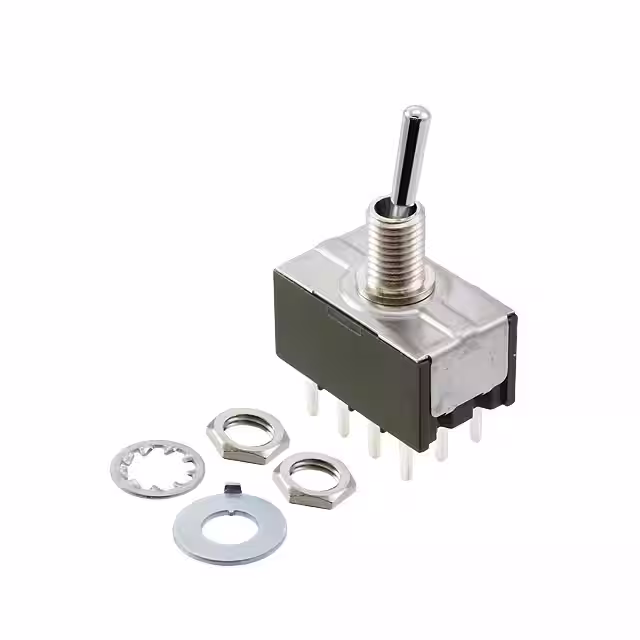

M2042SS4W03SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028B2B1W03-AT401HSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2027B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
171 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2027B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
171 |
|
- |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
S42/CSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S7F-AT401ASWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S6F-AT401ASWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
|
S7F-AT401HSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S6F-AT401HSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
|
M2022WBW01SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 85°C |
