Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-6437630-9SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 22.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|

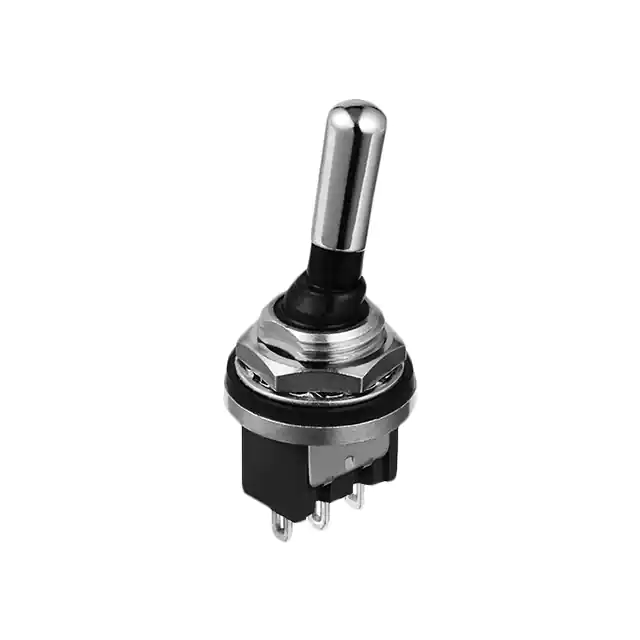

M2022B2B1W01-VASWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Cap | -30°C ~ 85°C |
|
|
M2013B2B1W01-VASWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Cap | -30°C ~ 85°C |
|
|
M2013B2B1W01-VESWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Yellow Cap | -30°C ~ 85°C |
|
|
M2024S3S1W06SWITCH TOGGLE SP3T 6A 125V |
132 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 6.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2012WBW01SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 85°C |
|
7101P3D9AV2QE22SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
6-6437630-3SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
M2015B2B3W03SWITCH TOGGLE SPDT 6A 125V |
167 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

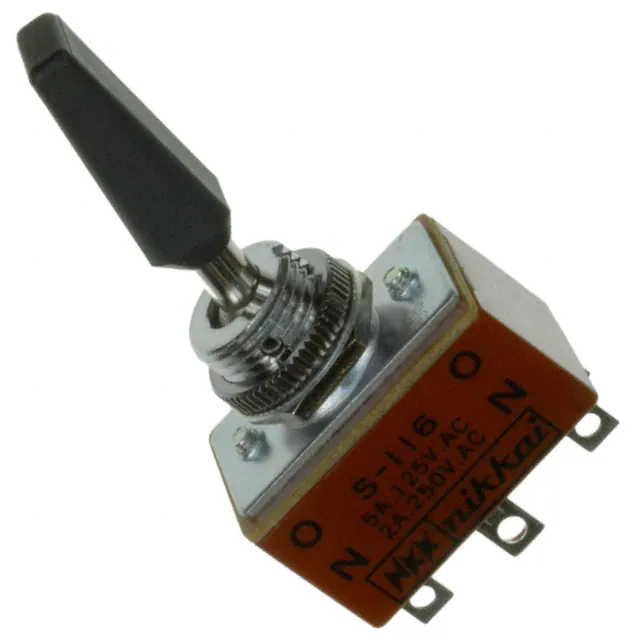

S116RSWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Paddle | 29.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|
|
5-6437630-1SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
M2022B2B1W01-AT4181SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2018B2B1W03-AT401ASWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2011B2B1W01-AT401ASWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
4-6437630-3SWITCH TOGGLE DPDT 6A 250V |
655 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
12TS15-6SWITCH TOGGLE DPST-NO 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
M2023B2B1W01-VASWITCH TOGGLE DPDT 6A 125V |
150 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Cap | -30°C ~ 85°C |
|
|
M2019BB1W03-AT402SSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2022B2B1W03-AT401ASWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2022B2B1W01-AT401ASWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
