Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

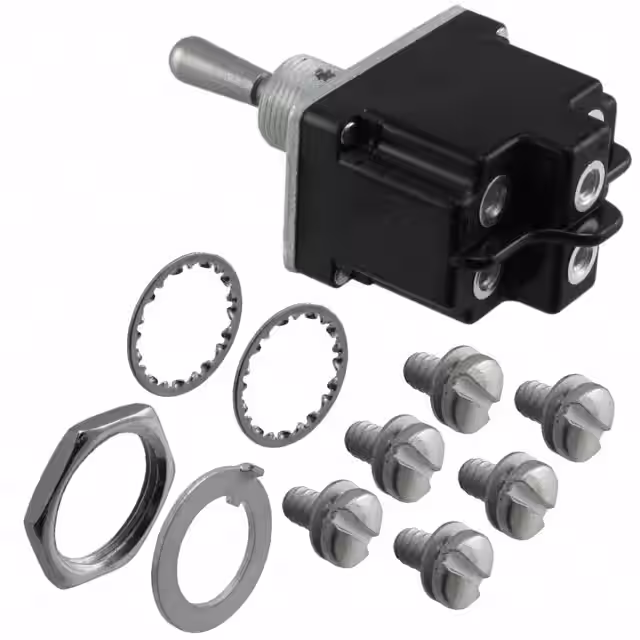

2TL1-72SWITCH TOGGLE DPDT 10A 125V |
39 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

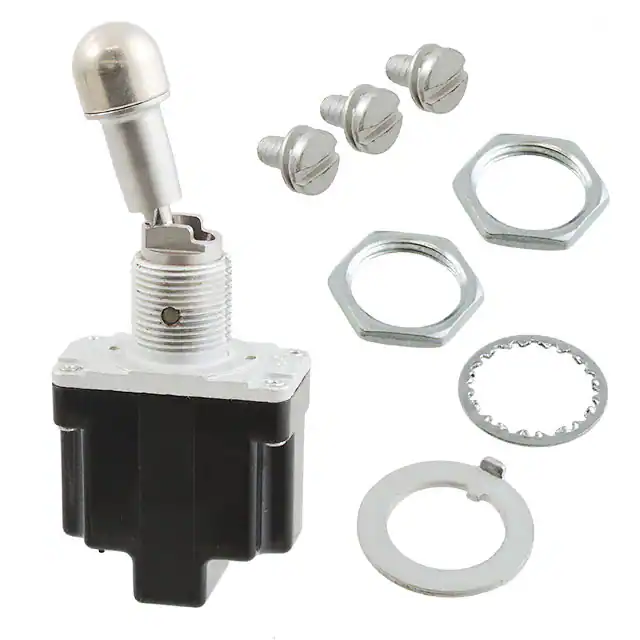

1TL1-2GSWITCH TOGGLE SPST 15A 125V |
58 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1TL1-3GSWITCH TOGGLE SPDT 15A 125V |
100 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

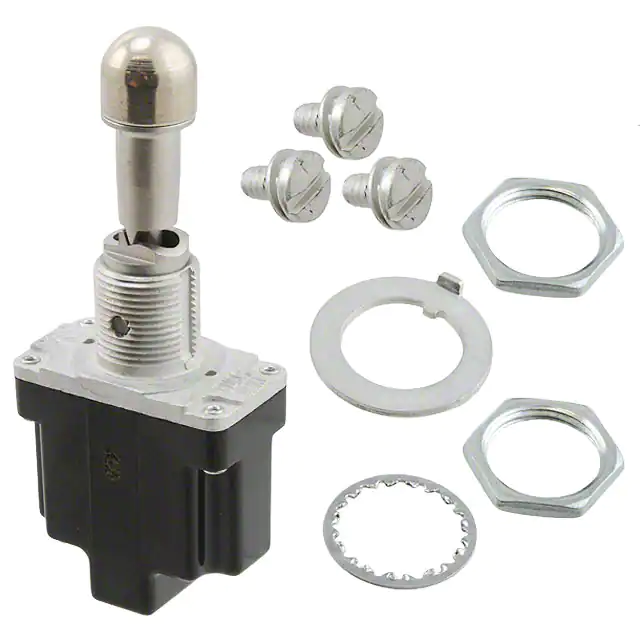

1TL1-5MSWITCH TOGGLE SPDT 10A 125V |
32 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
3533001N000SWITCH TOGGLE SPST 15A 28V |
43 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | Off-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
11TW1-5SWITCH TOGGLE SPDT 5A 125V |
36 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12147AX408SWITCH TOGGLE DPDT 4A 125V |
50 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
|
5258ADGKB-8V/1SWITCH TOGGLE 3PDT 6A 125V |
38 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | - | - | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | - | - | Matte Black Finish | -40°C ~ 85°C |
|

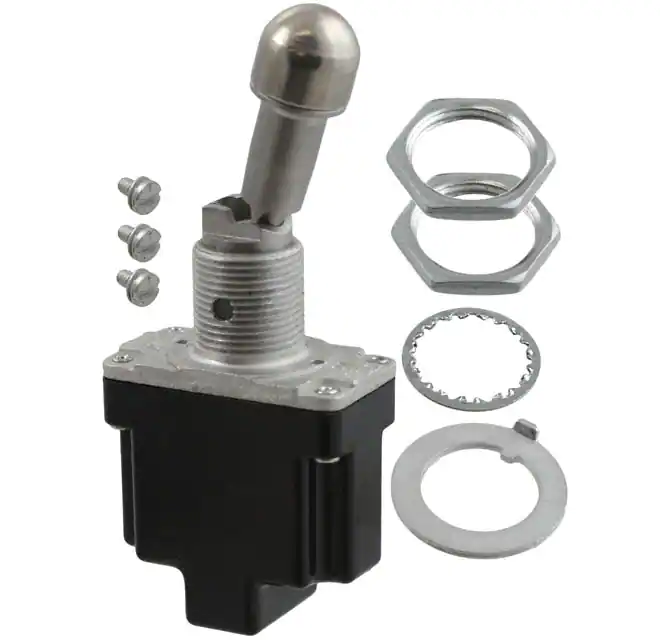

1TL1-1LSWITCH TOGGLE SPDT 15A 125V |
1 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

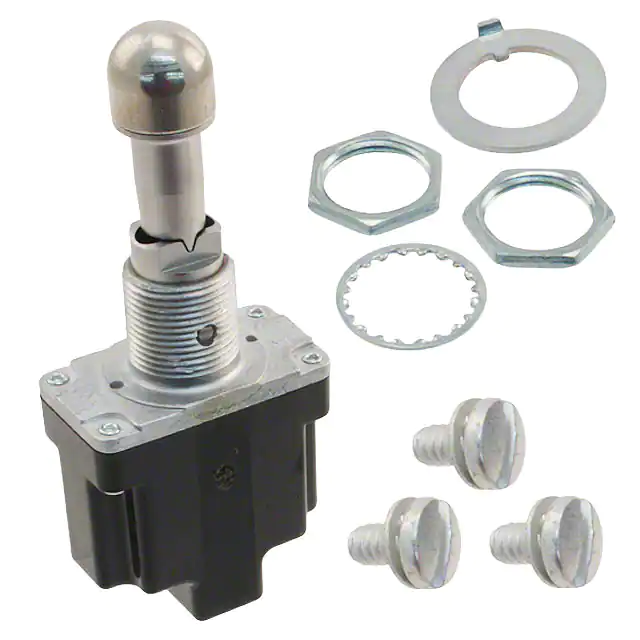

1TL1-1ESWITCH TOGGLE SPDT 15A 125V |
15 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3536001ND00SWITCH TOGGLE SPDT 20A 28V |
98 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC), 15A (DC) | - | 28 V | Locking Lever | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

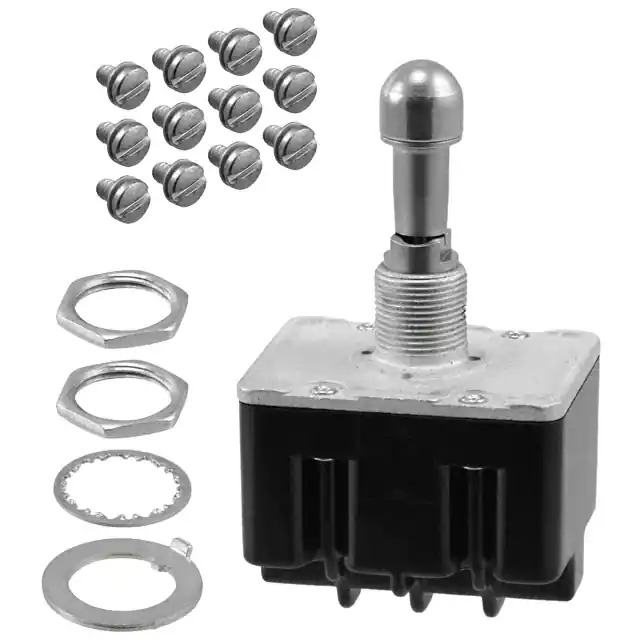

4TL1-7ESWITCH TOGGLE 4PDT 10A 125V |
40 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
101TL2834-7SWITCH TOGGLE SPDT 100MA 115V |
100 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 100mA (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

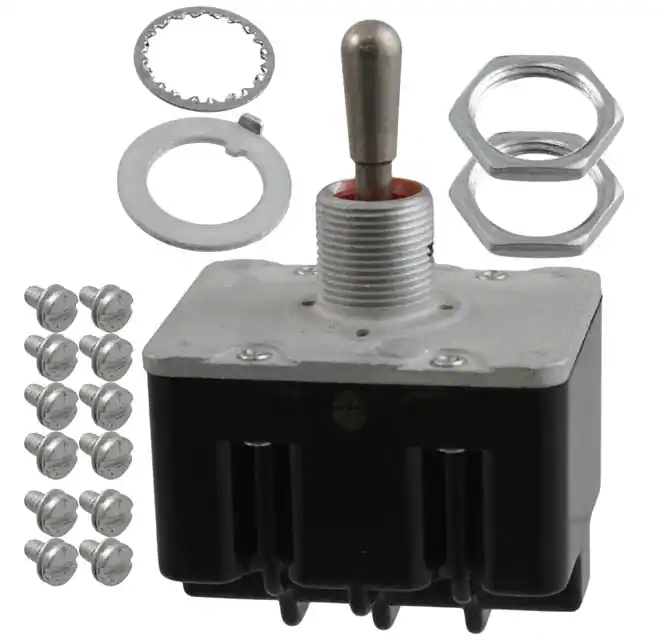

4TL1-70SWITCH TOGGLE 4PDT 10A 125V |
50 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

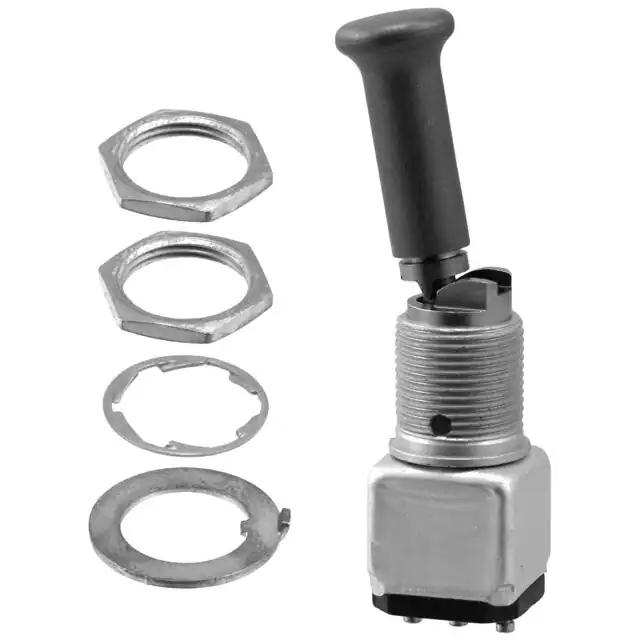

11TW8-3GSWITCH TOGGLE SPDT 5A 125V |
46 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12164AD2GK3VSWITCH TOGGLE 4PDT 4A 30V |
33 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4PDT | On-On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

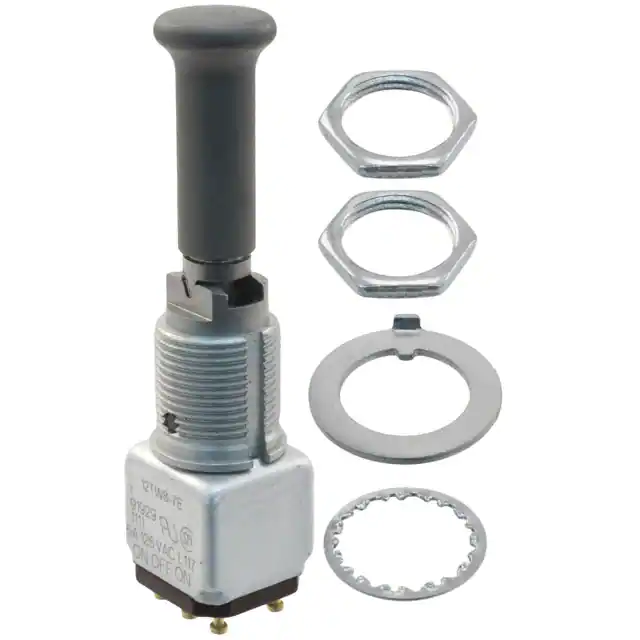

12TW8-7ESWITCH TOGGLE DPDT 5A 125V |
48 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
102TL1-2DSWITCH TOGGLE DPST 15A 125V |
96 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
102TL2-3SWITCH TOGGLE DPDT 7.5A 115V |
50 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
31TW2-205SWITCH TOGGLE SPDT 100MA 30V |
47 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 100mA (DC) | - | 30 V | - | - | Non-Illuminated | - | - | IWTS | - | - | Environment Sealed | - | -65°C ~ 71°C |
