Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M83731/9-271SWITCH TOGGLE SPDT 5A 115V |
173 |
|
Datasheet |
M83731 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
|
7-6437630-3SWITCH TOGGLE SPST 20A 125V |
0 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
2TL1-8SWITCH TOGGLE DPDT 10A 125V |
286 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-6SWITCH TOGGLE DPST-NO 10A 125V |
19 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

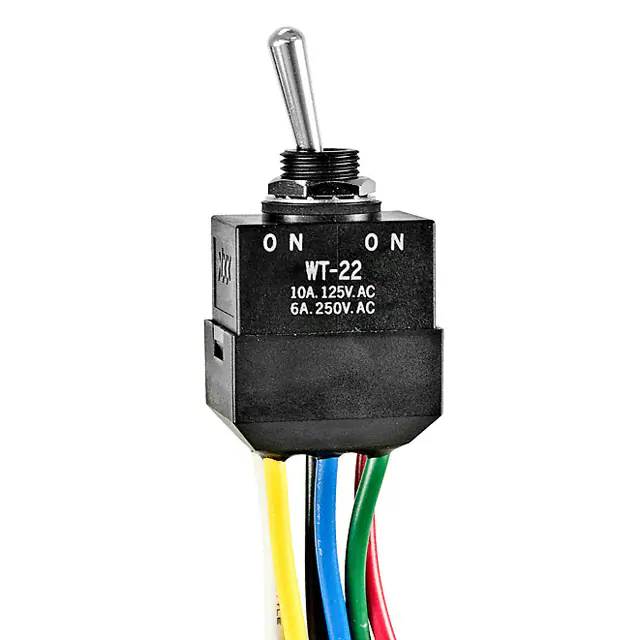

WT22LSWITCH TOGGLE DPDT 10A 125V |
11 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
2TL1-70SWITCH TOGGLE DPDT 10A 125V |
28 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

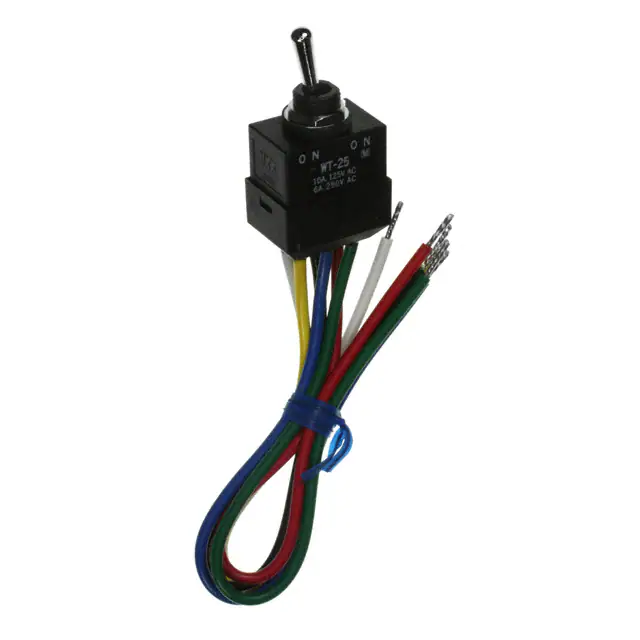

WT25LSWITCH TOGGLE DPDT 10A 125V |
4 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

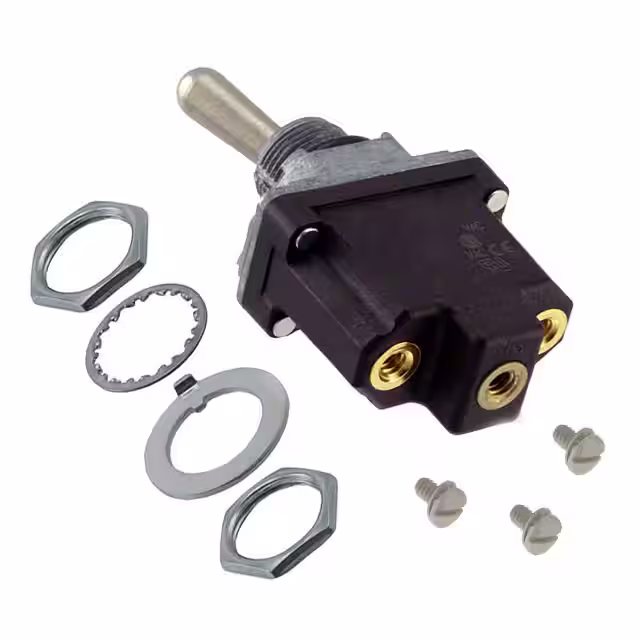

61NT1-7SWITCH TOGGLE SPDT 10A 125V |
60 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
07-1-2-13SWITCH TOGGLE SPDT 15A 115V |
48 |
|
Datasheet |
07 | Box | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|

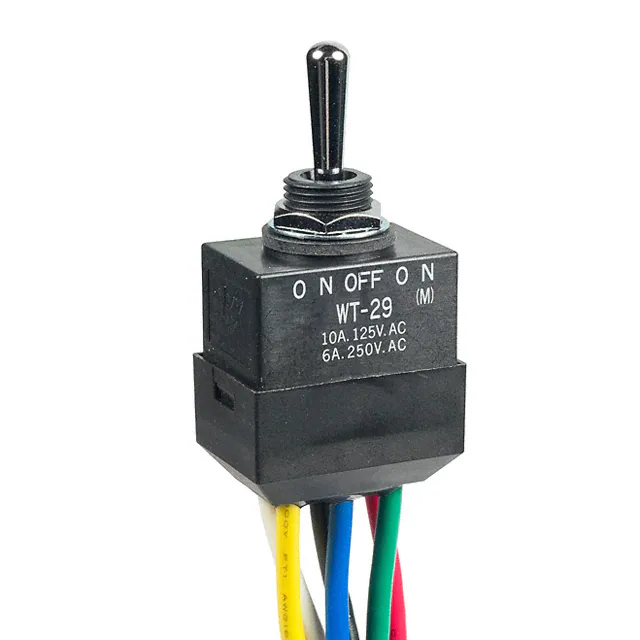

WT29LSWITCH TOGGLE DPDT 10A 125V |
9 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
3536001N000SWITCH TOGGLE SPDT 20A 28V |
62 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC), 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

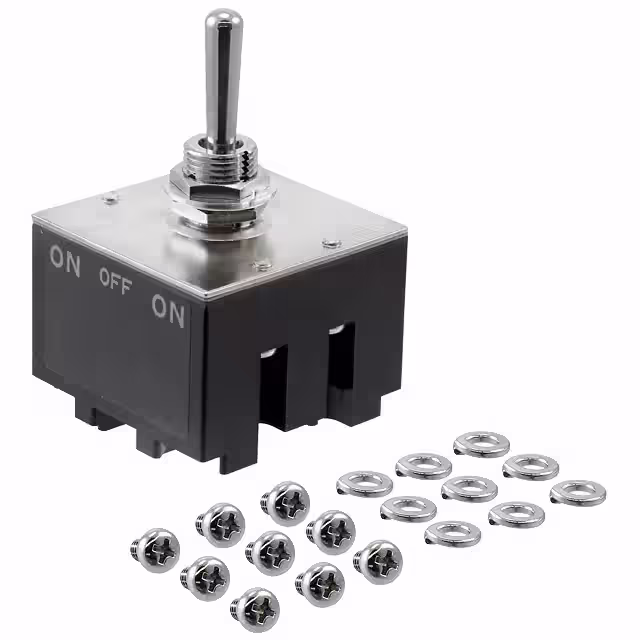

S833/CULSWITCH TOGGLE 3PDT 30A 125V |
2 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

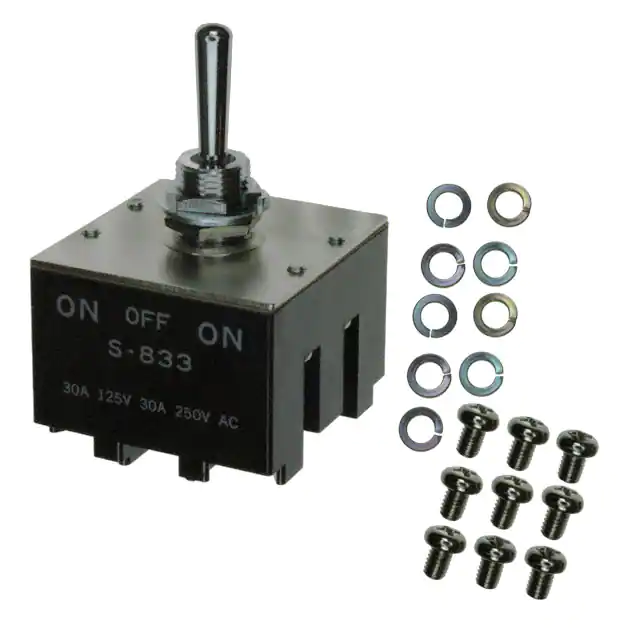

S833/USWITCH TOGGLE 3PDT 30A 125V |
29 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
MTG92AD3SWITCH TOGGLE SPDT 6A 30V |
103 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
3537001N000SWITCH TOGGLE SPDT 15A 28V |
91 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
MTG72AD5SWITCH TOGGLE SPDT 6A 30V |
86 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
MTG92AD6SWITCH TOGGLE SPDT 6A 30V |
59 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | - | 30 V | Paddle | 16.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
12147AGX408SWITCH TOGGLE DPDT 4A 125V |
789 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
|
11TW1-8SWITCH TOGGLE SPDT 5A 125V |
17 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

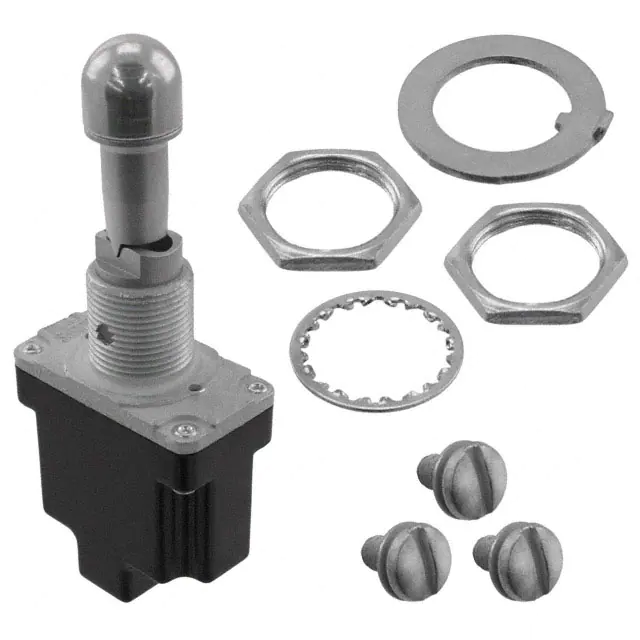

1TL1-61ESWITCH TOGGLE SPST-NO 10A 125V |
50 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
