Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

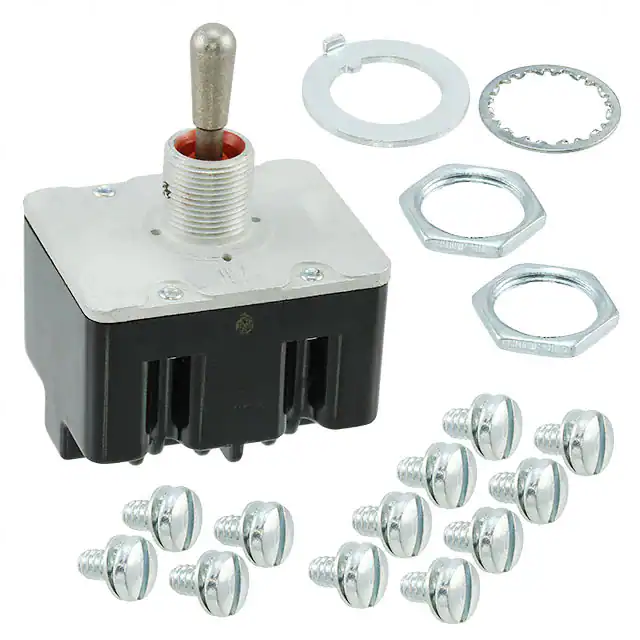

4TL1-1SWITCH TOGGLE 4PDT 15A 125V |
35 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
MTG72AD4SWITCH TOGGLE SPDT 6A 30V |
871 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Paddle | 16.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
MTG72AD3SWITCH TOGGLE SPDT 6A 30V |
87 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
2TL1-10SWITCH TOGGLE SP3T 15A 125V |
46 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|

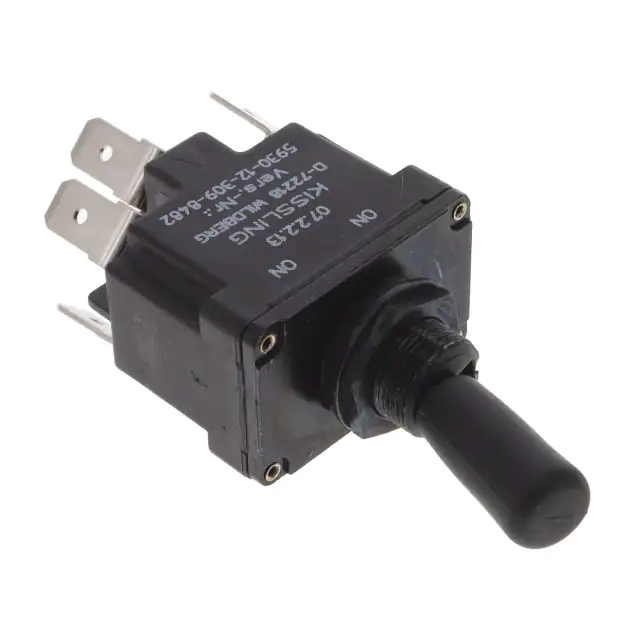

07-2-2-13SWITCH TOGGLE DPDT 15A 115V |
30 |
|
Datasheet |
07 | Box | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
4NT1-1SWITCH TOGGLE 4PDT 15A 125V |
32 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

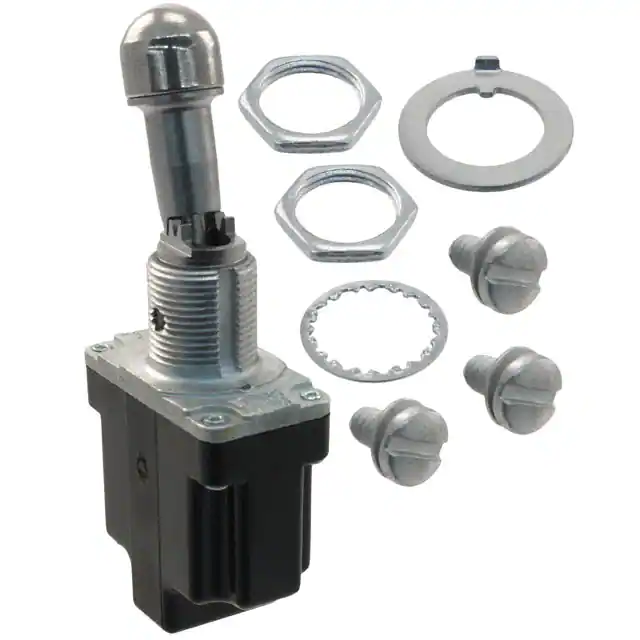

1TL1-1ASWITCH TOGGLE SPDT 15A 125V |
37 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TW1-1SWITCH TOGGLE SPDT 5A 125V |
26 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12146AKSWITCH TOGGLE DPDT 4A 125V |
40 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
12147ASWITCH TOGGLE DPDT 4A 125V |
39 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
S832DSWITCH TOGGLE 3PDT 30A 30V |
106 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

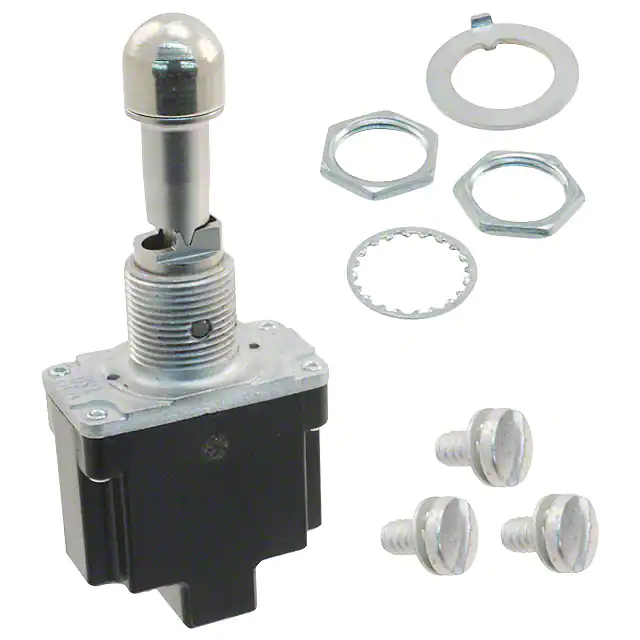

1TL1-5KSWITCH TOGGLE SPDT 10A 125V |
65 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-2SWITCH TOGGLE 4PST 15A 125V |
25 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12146AD2GKSWITCH TOGGLE DPDT 4A 125V |
34 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

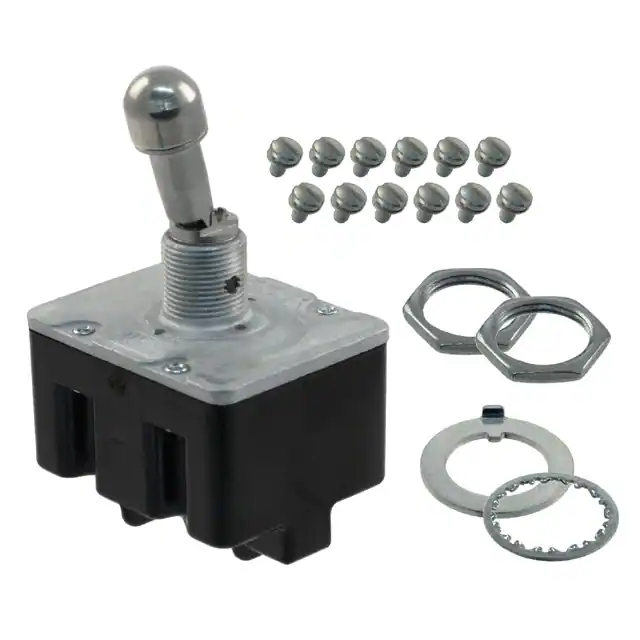

4TL1-12ASWITCH TOGGLE 4PDT 15A 125V |
51 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TW1-3DSWITCH TOGGLE SPDT 5A 125V |
70 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
100SP1T1B3M2QEHSWITCH TOGGLE SPDT 5A 120V |
429 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T2B1M2QEHSWITCH TOGGLE SPDT 5A 120V |
456 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

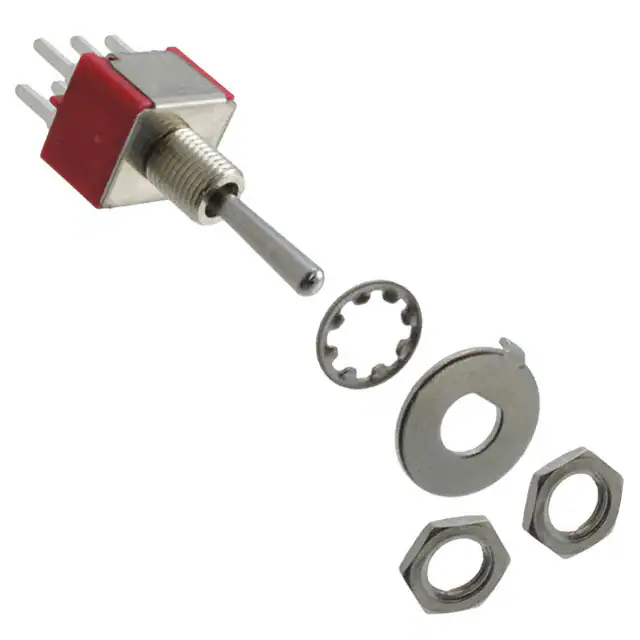

100DP3T1B3M2QEHSWITCH TOGGLE DPDT 5A 120V |
454 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

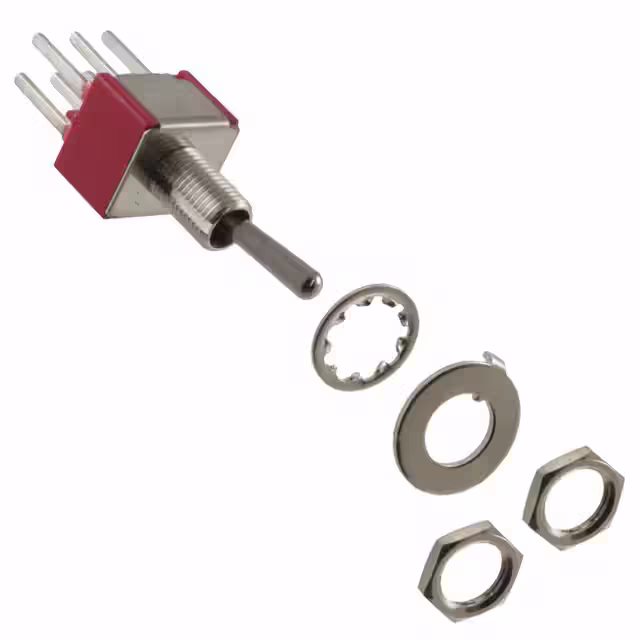

100DP1T1B1M53QEHSWITCH TOGGLE DPDT 5A 120V |
511 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
