Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
638H/2TKLUXETOGGLE SWITCH 600H HIGH POWER APEM Inc. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
637H/25VTOGGLE SWITCH 600H HIGH POWER APEM Inc. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5646MAB27TOGGLE SWITCH 5000 MINIATURE APEM Inc. |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
5656AGTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5232MIWRAB14VTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5656CD2VTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
649H3VSWITCH TOGGLE DPDT 10A 250V APEM Inc. |
0 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Locking Lever | 20.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|

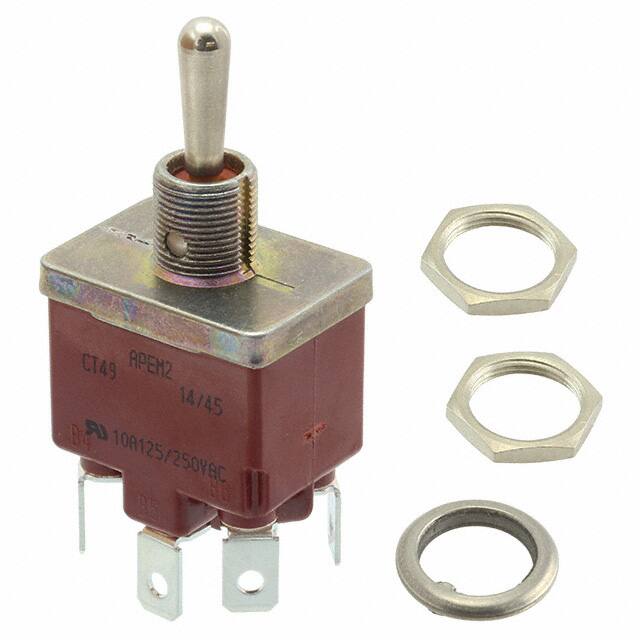

CT49021N022SWITCH TOGGLE DPDT 10A 125V APEM Inc. |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
3646NF/2X1052SWITCH TOGGLE DPDT 6A 125V APEM Inc. |
0 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
|
5656A2VTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
