Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55037SWITCH TOGGLE SPST-NO 15A 24V |
63 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
S303TSWITCH TOGGLE SPDT 15A 125V |
67 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
MN22LL3W01SWITCH TOGGLE |
85 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
ET210PA12-ZSWITCH TOGGLE DPDT 10A 125V |
12 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-On-Off | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
7208SYZQESWITCH TOGGLE DPDT 5A 120V |
73 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103TZQESWITCH TOGGLE SPDT 5A 120V |
80 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S333SWITCH TOGGLE DPDT 25A 125V |
64 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
MN12LL3G01SWITCH TOGGLE 0.4VA (AC/DC) 28V |
7 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | - |
|
55020SWITCH TOGGLE SPST-NO 15A 24V |
66 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7103K2ZQESWITCH TOGGLE SPDT 5A 120V |
97 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

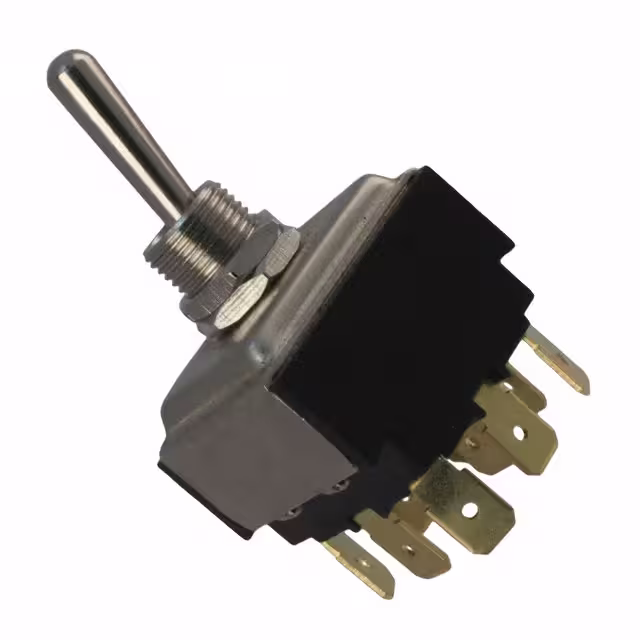

ST34SE00SWITCH TOGGLE 3PDT 24A 125V |
61 |
|
Datasheet |
ST3 | Bulk | Active | Panel Mount | 3PDT | On-On | 24A (AC) | 125 V | - | Standard Round | 21.70mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
55019SWITCH TOGGLE DPDT 15A 24V |
94 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

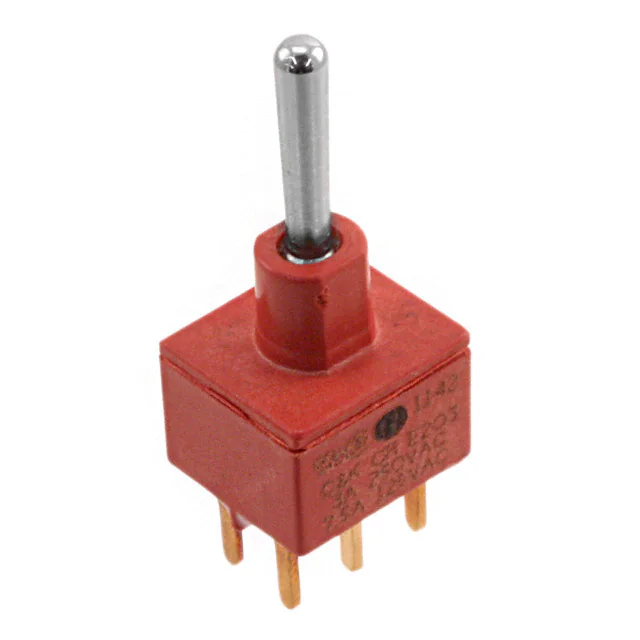

E203SD1CQESWITCH TOGGLE DPDT 7.5A 125V |
79 |
|
Datasheet |
E | Tray | Active | Through Hole | DPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

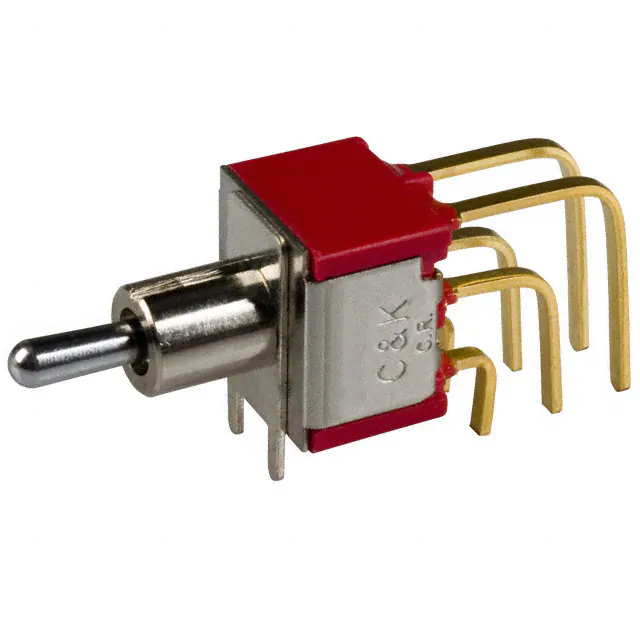

7201MD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
48 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

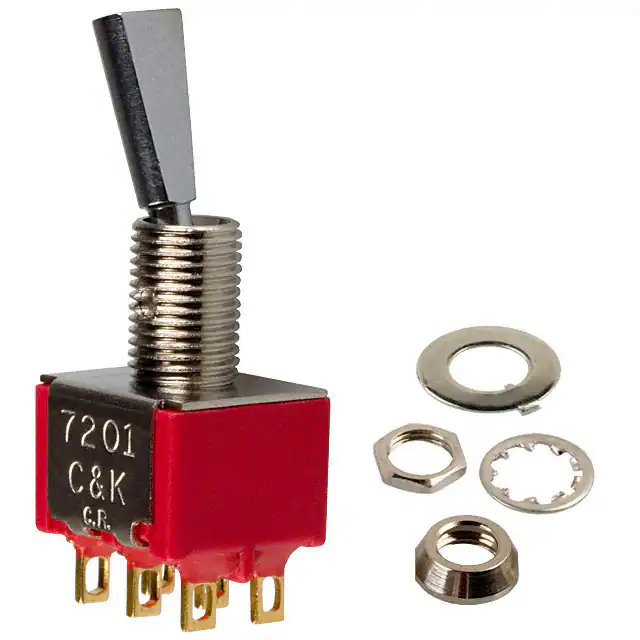

7201P3YZBESWITCH TOGGLE DPDT 0.4VA 20V |
83 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

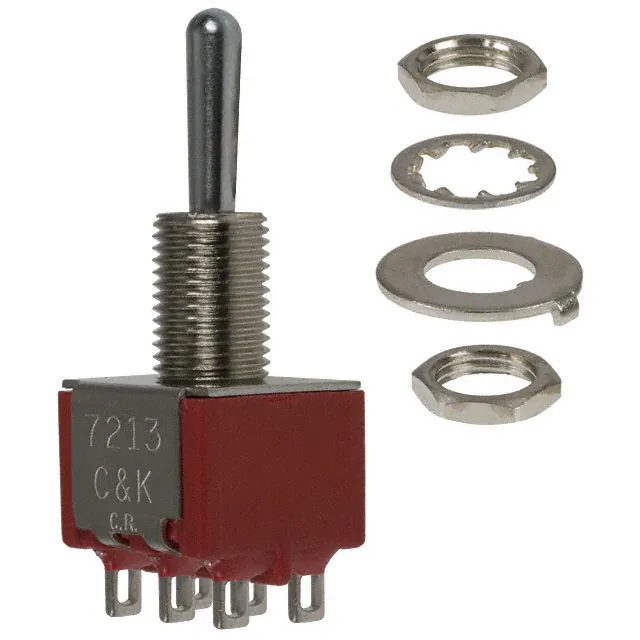

7213SYZQESWITCH TOGGLE SP3T 5A 120V |
76 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
2GL51-73SWITCH TOGGLE DPDT 15A 125V |
81 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
S2AWSWITCH TOGGLE SPDT 15A 125V |
55 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

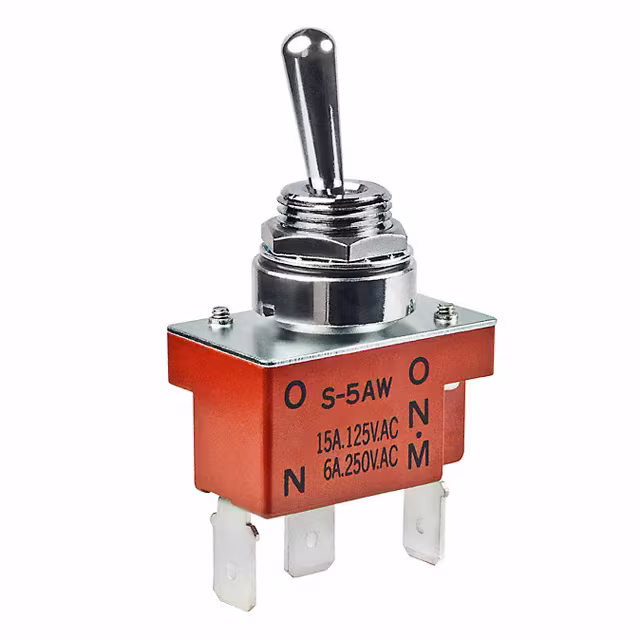

S5AWFSWITCH TOGGLE SPDT 15A 125V |
46 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
MTA106FSWITCH TOGGLE SPDT 6A 125V |
54 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
