Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2NT1-70ESWITCH TOGGLE DPDT 10A 125V |
0 |
|
- |
NT | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

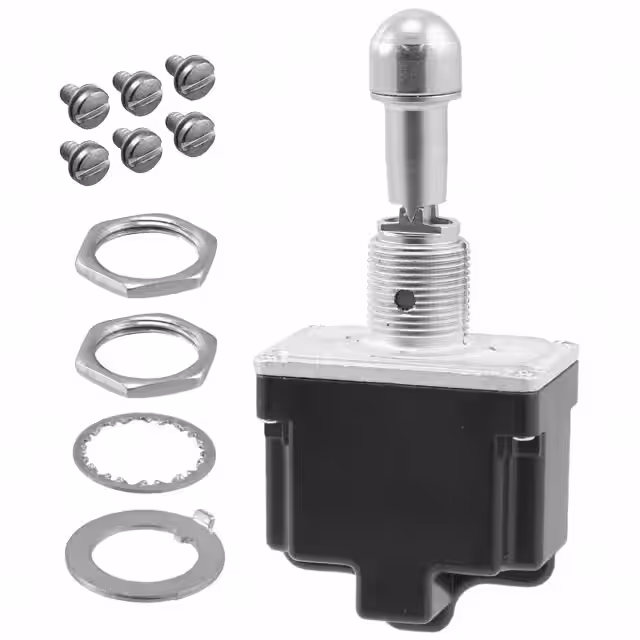

2TL1-12ASWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

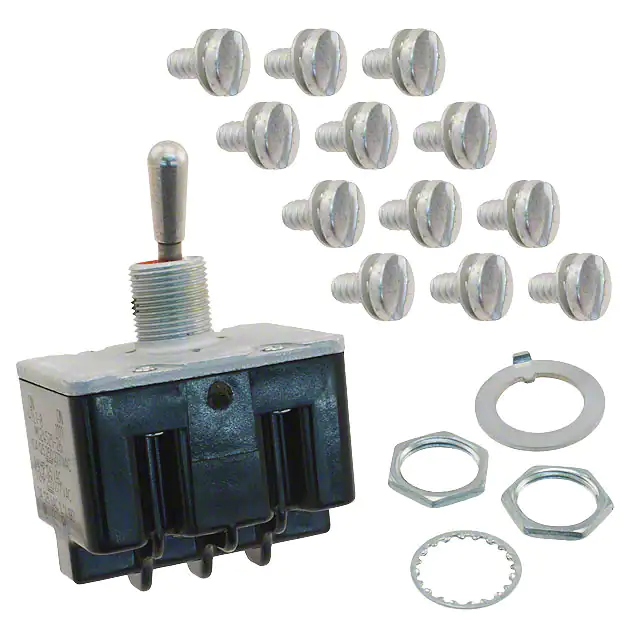

4TL1-8SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-56MSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

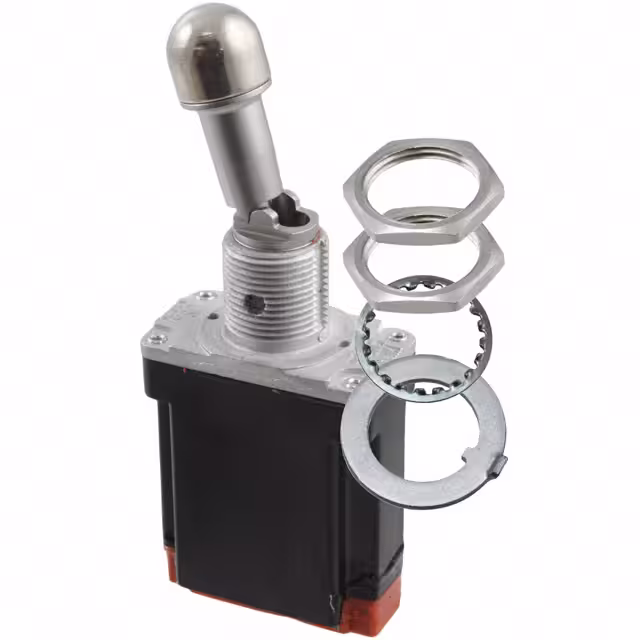

101TL2-3DSWITCH TOGGLE SPDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 7.5A (AC/DC) | 115 V | 30 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1520204-1SWITCH TOGGLE DPDT 15A 125V |
99 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 20.65mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
4TL1-5NSWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1TL49-3DSWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12TL1-31MSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-50MSWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
25ET78-SSWITCH TOGGLE SPDT 4A 28V |
0 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | On-Mom | 4A (DC) | - | 28 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|

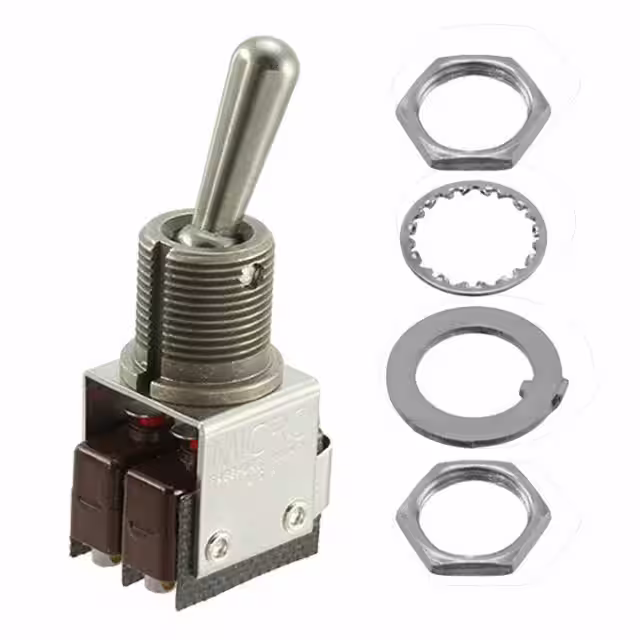

6AT29SWITCH TOGGLE DPDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.42mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
112TW1-51SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
102TL1-3SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
102TL2-7SWITCH TOGGLE DPDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4AT6SWITCH TOGGLE 4PDT |
0 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | 4PDT | On-On-Mom | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Turret | - | Unthreaded | - | - | - |
|
|
104TL2-7SWITCH TOGGLE 4PDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

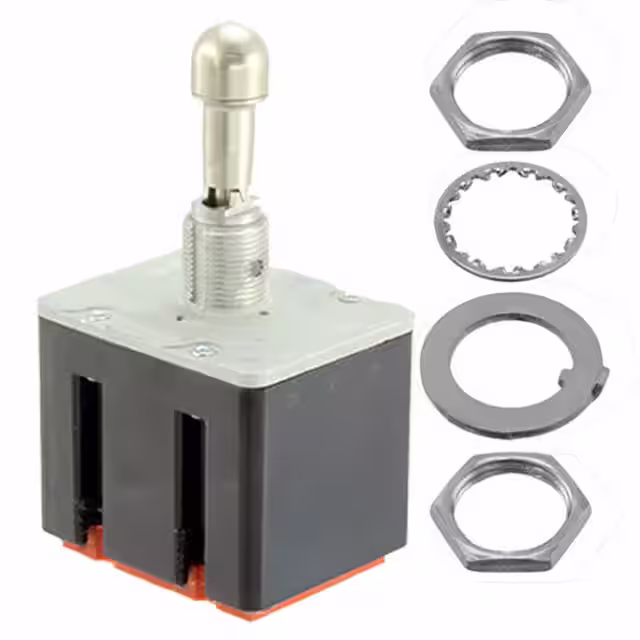

104TL2-1ASWITCH TOGGLE 4PDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 7.5A (AC/DC) | 115 V | 30 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
VFN23203-1-23SWITCH TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

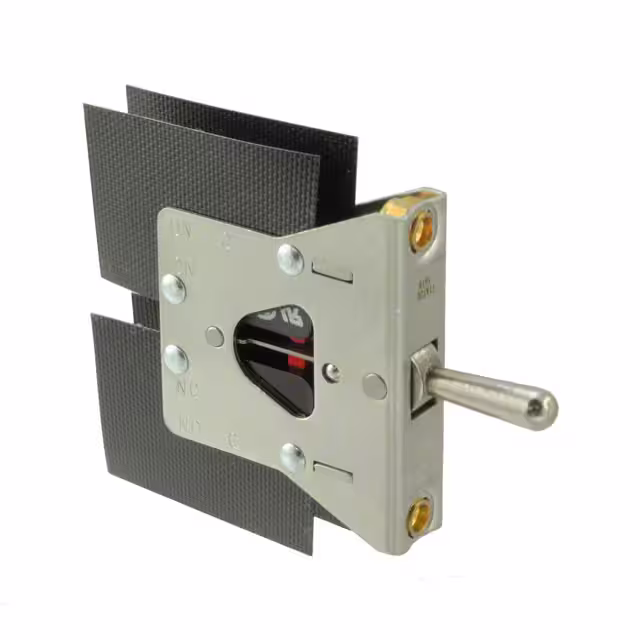

11AT20SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 22.35mm | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | - |
