Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S32F-AT401SSWITCH TOGGLE 3PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|

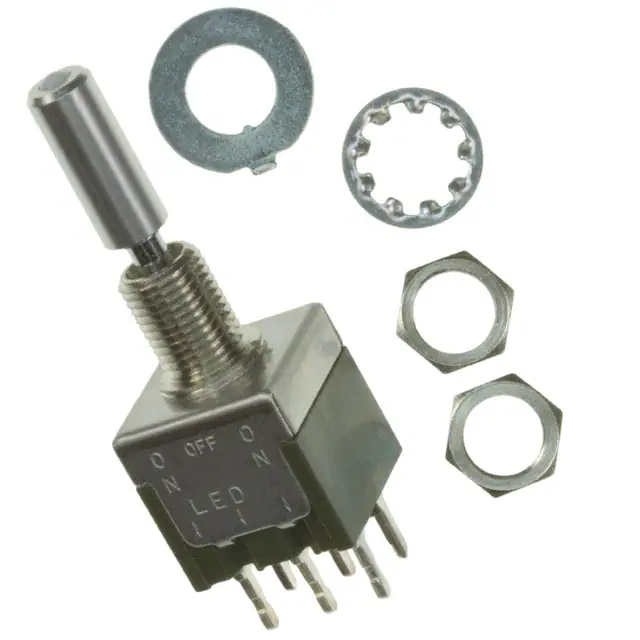

M2113TCFW03SWITCH TOGGLE SPDT 6A 125V |
7 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

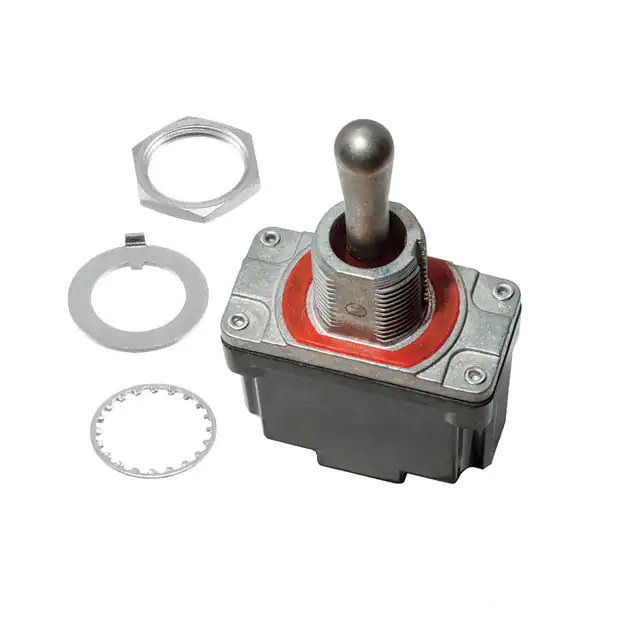

PT103SSQSWITCH TOGGLE SPDT 15A 277V |
479 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
PT105SSQSWITCH TOGGLE SPDT 10A 277V |
383 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
PT103SQQSWITCH TOGGLE SPDT 15A 277V |
387 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
S43F/CULSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
PT105SQQSWITCH TOGGLE SPDT 10A 277V |
345 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
2MT1-6SWITCH TOGGLE DPST-NO 5A 28V |
0 |
|
- |
MT | Bulk | Obsolete | Panel Mount | DPST-NO | Off-Mom | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
2MT1-4SWITCH TOGGLE DPST-NC 5A 28V |
0 |
|
- |
MT | Bulk | Obsolete | Panel Mount | DPST-NC | On-Mom | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
3-6437630-5SWITCH TOGGLE 4PDT 6A 250V |
398 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
1520228-4SWITCH TOGGLE DPST 20A 125V |
1,071 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
6-6437630-1SWITCH TOGGLE DPDT 0.4VA 20V |
1,929 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
S43F/CUL-AT401HSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S43F/CUL-AT401ASWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S43F-AT401HSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S43F-AT401ASWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
1520237-2SWITCH TOGGLE DPST 16A 125V |
298 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 16.66mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
S43F-AT402ASWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S43F-AT402HSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S43F/CUL-AT402HSWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
